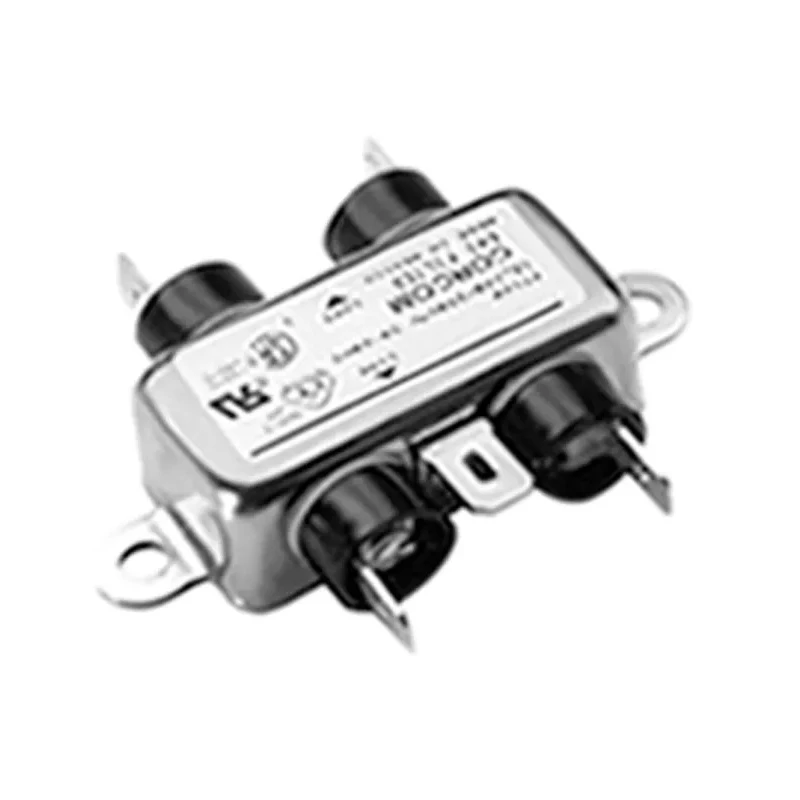

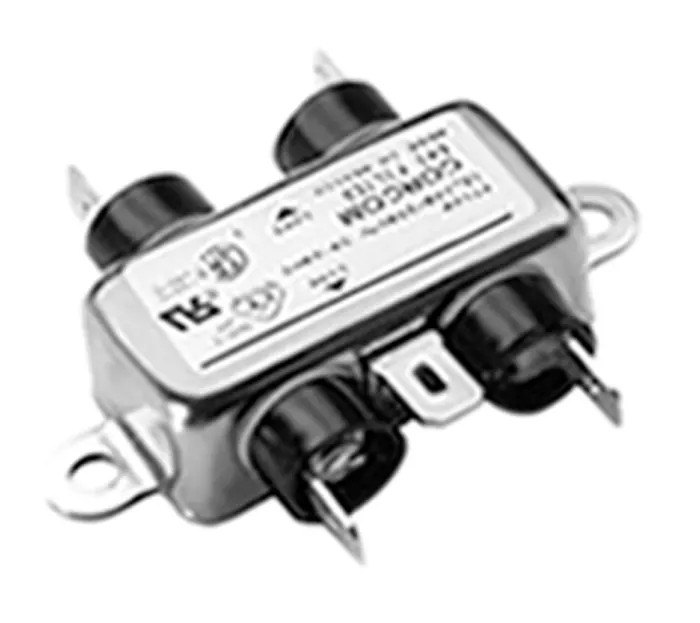

TE Connectivity Corcom B Series RFI Filter 5 A 250 V AC 50 Hz/60 Hz Flange Mount Fast-On Termination 1 Phase 6609020-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Corcom B Series RFI Filter 5 A 250 V AC 50 Hz/60 Hz Flange Mount Fast-On Termination 1 Phase 6609020-7

Name: TE Connectivity Corcom B Series RFI Filter 5 A 250 V AC 50 Hz/60 Hz Flange Mount Fast-On Termination 1 Phase 6609020-7
Brand: TE Connectivity
SKU: 384714
Price: 38.09 USD
Availability: InStock



Category RFI Filter Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	64.3mm
Length	57.2mm
Depth	16.8mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom B
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	100nF
Minimum Operating Temperature	-10°C
Maximum Current	5A
Number of Phases	1
Leakage Current	700μA
Maximum Voltage	250V ac
Inductance	516μH
Standards/Approvals	UL1283
Termination Style	Fast-On

Key Features

Operates at 50 Hz and 60 Hz frequencies for wide compatibility.
Flange mount type with fast-on termination for ease of installation.
Low leakage current of 700 μA suitable for medical and portable equipment.
Compact dimensions of 64.3 mm height, 16.8 mm depth, and 57.2 mm length.
Meets UL1283 standard for safety and electromagnetic interference filtering.
Constructed to operate between -10°C to 40°C for reliable performance.
Series inductance of 516 μH and capacitance of 100 nF assures effective EMI noise suppression.

Product Description

TE Connectivity 6609020-7 Corcom B Series RFI Filter is a general purpose, compact EMI/RFI low current power line filter designed to suppress wide band radio frequency interference and noise in electronic circuits.

This single-phase filter supports a maximum current of 5 A and operates within a voltage rating of 250 V AC at both 50 Hz and 60 Hz frequencies, making it suitable for a broad range of industrial and commercial applications.

The flange mount provides secure and stable installation while the fast-on termination style enables quick connection and maintenance. The filter exhibits a low leakage current of 700 μA, facilitating its use in sensitive environments including medical and portable equipment compliant with VDE standards.

Engineered to meet the UL1283 standard, it assures compliance with global safety regulations ensuring dependable EMI suppression. The component operates reliably between -10°C and 40°C ambient temperatures, making it suitable for HVAC systems, battery charging setups, home appliances, computing devices, audio/video equipment, and exercise machines.

The electrical characteristics include a series inductance of 516 μH and capacitance of 100 nF, providing effective noise filtering in AC circuits. Its compact physical dimensions of 64.3 mm height, 16.8 mm depth, and 57.2 mm length allow integration into constrained spaces.

Operates at 50 and 60 Hz frequencies for global application coverage. Low leakage current supports use in medical and VDE portable equipment. Compliant with UL1283 for quality and safety assurance. Flange mount and fast-on termination facilitate easy installation.

Effective EMI suppression for HVAC, appliances, audio/video, and computing devices.

TE Connectivity’s Corcom B Series filters offer economical and reliable EMI filtering solutions ideal for industrial, laboratory, manufacturing, commercial, and domestic applications requiring low attenuation and high impedance filtering.
