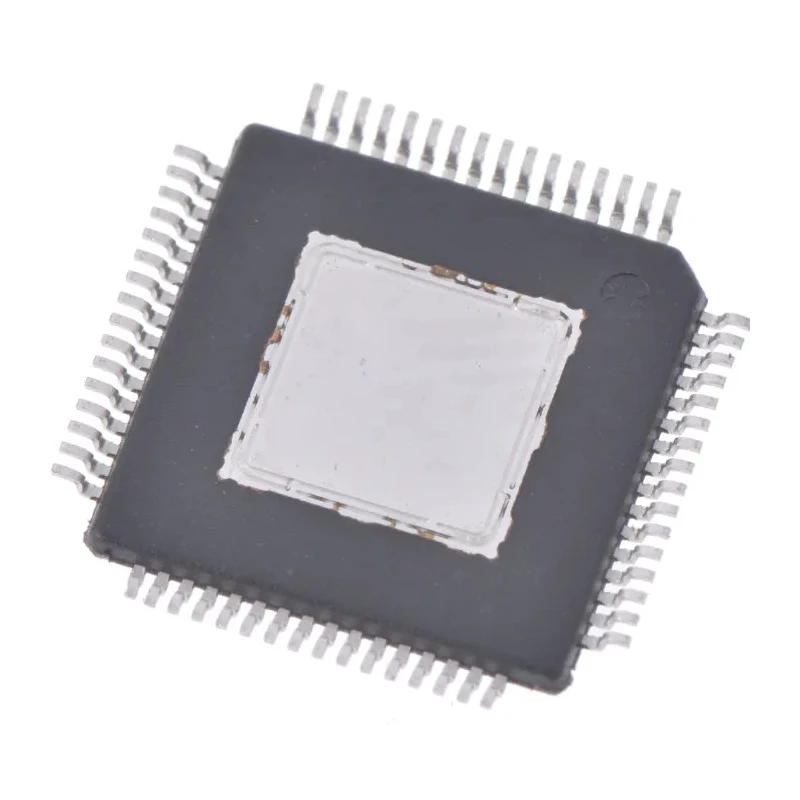

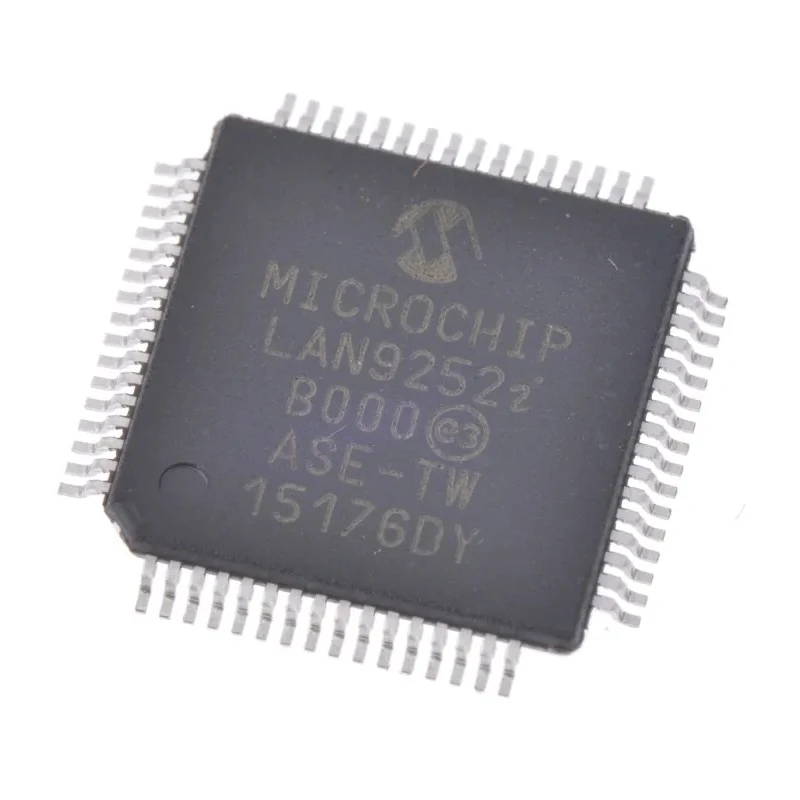

Microchip 64-Pin TQFP Ethernet Controller 3.3 V 100 Mbps Host Bus Full Duplex/Half Duplex LAN9252I/PT

Free Delivery in India | Lowest Global Shipping Charges

Microchip 64-Pin TQFP Ethernet Controller 3.3 V 100 Mbps Host Bus Full Duplex/Half Duplex LAN9252I/PT

Name: Microchip 64-Pin TQFP Ethernet Controller 3.3 V 100 Mbps Host Bus Full Duplex/Half Duplex LAN9252I/PT
Brand: Microchip
SKU: 384641
Price: 17.1 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.2mm
Length	10mm
Model	LAN9252I/PT
Width	10mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Interfaces	Ethernet PHYs with HP Auto-MDIX
Communication Mode	Full Duplex/Half Duplex
Interface Type	Host Bus
Pin Count	64
Maximum Supply Voltage	3.3V
Maximum Data Rate	100Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.3, ANSI X3.263, IEEE 802.3u

Key Features

This controller integrates a 2/3-port EtherCAT® slave controller with dual Ethernet PHYs supporting HP Auto MDI-X.
Supports IEEE 802.3, ANSI X3.263, and IEEE 802.3u standards for Ethernet communications.
Includes 4K bytes of dual port memory (DPRAM), 4 SyncManagers, 3 Fieldbus Memory Management Units (FMMUs), and a 64-bit Distributed Clock.
Features 1.8V to 3.3V variable voltage I/O and an integrated 1.2V regulator for single 3.3V operation.
Designed for surface mount with a compact 10mm x 10mm x 1.2mm TQFP package.
Operates reliably in temperature ranges from -40°C to 85°C.
Supports cable diagnostics and external 100BASE-FX via fiber transceiver.

Product Description

Microchip LAN9252I/PT is a 64-pin Thin Quad Flat Package (TQFP) Ethernet Controller operating at 3.3 V and supporting a maximum data rate of 100 Mbps. It is designed with full duplex and half duplex communication modes suitable for industrial and embedded networking applications.

This device serves as a 2/3 port EtherCAT® slave controller, integrating dual Ethernet PHYs equipped with HP Auto MDI-X for flexible cable connections. The controller supports Ethernet standards IEEE 802.3, ANSI X3.263, and IEEE 802.3u, ensuring compatibility across various network environments.

The LAN9252 features a comprehensive data management system including 4K bytes dual port RAM (DPRAM), 4 SyncManagers, and 3 Fieldbus Memory Management Units (FMMUs) alongside a 64-bit Distributed Clock for accurate timing and synchronization.

Its integrated 1.2V regulator allows single 3.3V operation while supporting I/O voltage variations from 1.8V to 3.3V, making it suitable for diverse embedded system requirements. Surface mounting capability with a compact 10mm x 10mm footprint enhances PCB design flexibility.

Operational temperature range from -40°C to 85°C ensures reliable performance in harsh environments. Additional features include cable diagnostic support and 100BASE-FX compatibility via an external fiber transceiver.

The Microchip LAN9252I/PT is ideal for industrial automation, manufacturing communication systems, and embedded network controller applications requiring robust and high-speed Ethernet interfaces.

This controller integrates a 2/3-port EtherCAT® slave controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers. Dual integrated Ethernet PHYs with HP Auto-MDIX support improve network cable compatibility.

Cable diagnostic support aids in network maintenance and troubleshooting. Supports 100BASE-FX network via an external transceiver for fiber optic connectivity. Operates on a 3.3V supply with integrated 1.2V regulator for efficient power management.

Compact 64-pin TQFP surface mount package measuring 10mm by 10mm by 1.2mm. Wide operating temperature range from -40°C to 85°C enhances durability in industrial settings. Explore the Microchip category on EnvMart for matching and complementary Ethernet interface components for your embedded and industrial networking projects.

Explore more products in our Ethernet Interface Ics category.
