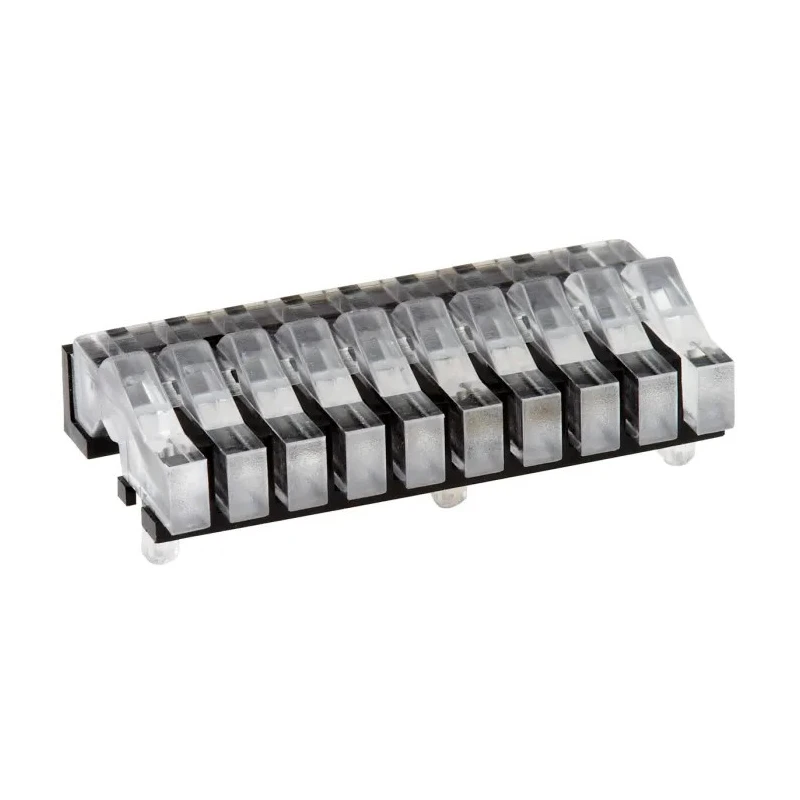

Mentor GmbH Press-In 10-Way Right Angle Rigid LED Light Pipe Clear 12.9mm Length 3.2mm Diameter 1278.1010

Mentor GmbH 1278.1010 Press-In 10-Way Right Angle Rigid LED Light Pipe is an industrial-grade component engineered to provide precise light guidance and illumination in electronic display systems. With a rigid construction and clear polycarbonate material meeting UL94 standards, this light pipe offers excellent transmission with minimal luminance loss, ensuring clear bargraph display readouts.

This product features a 1-row by 10-column configuration of rectangular light pipes, each having an outside diameter of 3.2mm and a length of 12.9mm, oriented at a right angle to the printed circuit board for optimal display presentation. The press-in mount type allows straightforward installation on PCB boards via push-fit lugs, facilitating efficient assembly in manufacturing environments.

Designed specifically for use with surface mount LEDs, the light pipe’s inject face is positioned close to the LED to maximize light coupling and reduce light bleed between adjacent elements. It is ideal for high-precision bargraph displays requiring multiple light sections.

The horizontal light guides feature a light diffusing screen that prevents radiation leakage, making it suitable for combined color applications without performance degradation. This component performs reliably in a broad ambient temperature range from -40°C up to +85°C, making it suitable for demanding industrial, electronics manufacturing, laboratory instrumentation, and control panel environments.

Manufactured in Germany according to stringent quality standards, this Mentor GmbH light pipe brings durable and consistent performance to LED lighting and display applications. The 10-way right angle configuration ensures compact layouts with efficient optical performance.

Rigid LED Light Pipe ensuring minimal luminance loss and no light bleed. Right angle orientation with 12.9mm length and 3.2mm rectangular diameter. Press-in mount type for quick PCB installation using push-fit lugs. Features 10 uniform light pipes arranged in a single row configuration.

Constructed from clear PC material compliant with UL94 standards. Suitable for use in bargraph displays requiring accurate visual indication. Operates reliably in ambient temperatures from -40°C up to +85°C. Designed and manufactured in Germany ensuring high quality and durability.
