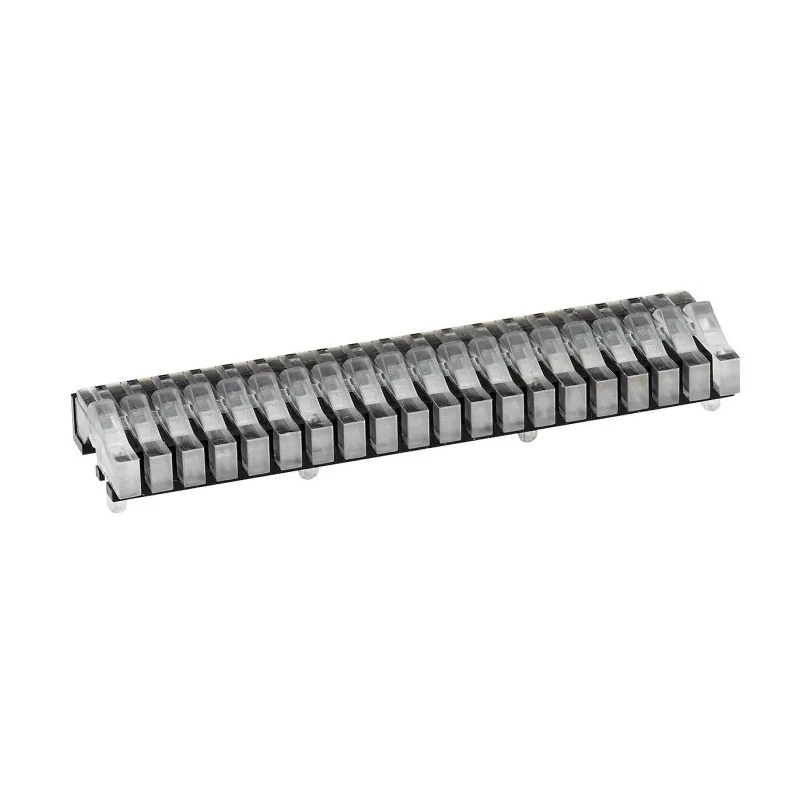

Mentor GmbH Press-In 20-Way Right Angle Rigid LED Light Pipe Clear 12.9mm Length 3.2mm Outside Diameter 1278.1020
Specifications
| Country of Origin | Germany |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 12.9mm |
| Number Of Ways | 20 |
| Mount Type | Press-In |
| Outside diameter | 3.2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Rectangle |
| Number of Light Pipes | 20 |
| Configuration Rows x Columns | 1 x 20 |
Key Features
- Constructed with rigid polycarbonate for durability and UL94 compliance.
- Features a press-in mount type for secure PCB attachment.
- Consists of 20 light pipes arranged in a single row configuration.
- Right angle orientation optimizes light transmission from surface mount LEDs.
- Suitable for bargraph displays requiring minimal light bleed and high luminance retention.
- Operating temperature range from -40°C to +85°C ensures reliable performance in varied environments.
- Clear lens colour provides excellent light clarity for user interface displays.
- Manufactured in Germany maintaining rigorous quality standards.
Product Description
Mentor GmbH 1278.1020 Press-In 20-Way Right Angle Rigid LED Light Pipe is engineered to efficiently guide light from surface mounted LEDs to user interfaces with minimal luminance loss and no light bleed between adjacent elements. Measuring 12.9mm in length with a 3.2mm outside diameter, this rigid polycarbonate component meets UL94 standards for flame resistance, making it ideal for industrial, electronic, and commercial lighting applications.
The rectangular bar-shaped light pipe comprises 20 individual light pipes arranged in a single row (1 x 20 configuration), designed specifically for bargraph display applications requiring clear, precise light indication over multiple sections. The right angle orientation facilitates close proximity alignment to SMD LEDs on printed circuit boards. The press-in mount type allows straightforward and secure installation without the need for additional mounting hardware.
This product is rated for ambient temperatures ranging from -40°C to +85°C, ensuring robust operation in diverse environmental conditions commonly found in industrial, laboratory, and manufacturing settings. The light diffusion screen helps eliminate radiation issues when utilizing different color combinations in displays.
Mentor GmbH's light guides provide the industry with reliable solutions for light transmission in user interfaces, enhancing visibility and clarity in control panels and electronic displays. The German manufacture underlines stringent quality control and precision engineering.
Constructed with rigid polycarbonate for durability and UL94 compliance. Features a press-in mount type for secure PCB attachment. Consists of 20 light pipes arranged in a single row configuration. Right angle orientation optimizes light transmission from surface mount LEDs.
Suitable for bargraph displays requiring minimal light bleed and high luminance retention. Operating temperature range from -40°C to +85°C ensures reliable performance in varied environments. Clear lens colour provides excellent light clarity for user interface displays.
Manufactured in Germany maintaining rigorous quality standards. Explore extensive LED lighting components and accessories at EnvMart for innovative electronics and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 12.9mm in length and has an outside diameter of 3.2mm.
It operates effectively within an ambient temperature range of -40°C to +85°C.
The light pipe consists of 20 individual light pipes arranged in a single row configuration (1 x 20).
It features a press-in mount type for secure attachment to printed circuit boards (PCBs).
This unit is constructed from rigid polycarbonate, ensuring durability and compliance with UL94 standards.
The light pipe is designed with a right angle orientation to optimize light transmission from surface mount LEDs.
It is suitable for bargraph displays that require minimal light bleed and high luminance retention.
This light pipe is manufactured in Germany, adhering to rigorous quality standards.
It meets UL94 standards for flame resistance, making it suitable for various environments.
The light pipe has a rectangular shape, designed for efficient light guidance.
Yes, it includes a light diffusion screen to help eliminate radiation issues when using different color combinations in displays.
The brand of this light pipe is Mentor GmbH.
