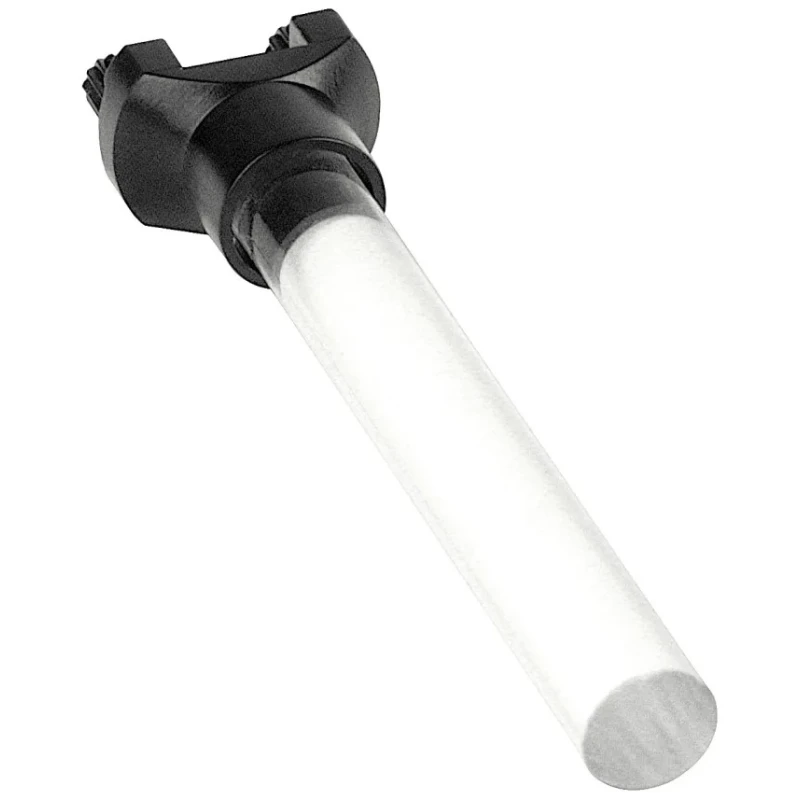

Mentor GmbH Press-In 1-Way Straight Rigid LED Light Pipe Clear, Yellow 1216.1005

Mentor GmbH 1216.1005 Press-In 1-Way Straight Rigid LED Light Pipe is a high-quality vertical light guide designed for use with surface mount device (SMD) LEDs. This rigid rod-shaped light pipe features a press-in mount type, allowing for secure attachment directly to the circuit board. The light pipe is 45 mm long and has an outside diameter of 5 mm, providing a compact yet effective solution for LED illumination applications.

Manufactured in Germany, this product adheres to the UL94 flame retardant standard, ensuring compliance with international safety regulations. It is configured in a 1 x 1 row and column arrangement, allowing it to precisely guide light through its clear lens to produce yellow LED illumination without significant luminance loss or light bleed, which is essential for clear visibility in electronic interfaces.

The light guides from Mentor GmbH are designed for an ambient temperature operating range from -40°C to +85°C, making them suitable for a variety of industrial and commercial environments including electronics, instrumentation, automotive, and HVAC control panels. The light pipe head is round, enhancing the diffusion and control of LED light emission.

This product family includes single modules and can be extended into multiple arrays, providing scalable solutions tailored to different design requirements. The push-fit lugs simplify installation, saving time during assembly processes.

This LED light pipe features a rigid, press-in mount design for secure installation. The product is a single 1-way light pipe with a straight orientation for precise light guiding. The rod-shaped light pipe has a clear lens color combined with a yellow LED color for optimal visual output.

The light pipe measures 45 mm in length with a 5 mm outside diameter for compact use. It conforms to UL94 standards ensuring flame retardant properties and safety compliance. Engineered to operate reliably in ambient temperatures ranging from -40°C to +85°C.

Manufactured in Germany with a robust build ensuring durability and performance. Designed to transmit light effectively from SMD LEDs with minimal luminance loss. One light pipe per unit facilitates straightforward integration into PCB designs.

Offers protection against light bleed between adjacent elements for clear interface presentation.

Mentor GmbH's range of light guides provide exceptional ESD protection and simple installation processes, making them suitable for diverse industrial, laboratory, manufacturing, and commercial applications where visual signaling and illumination are critical.
