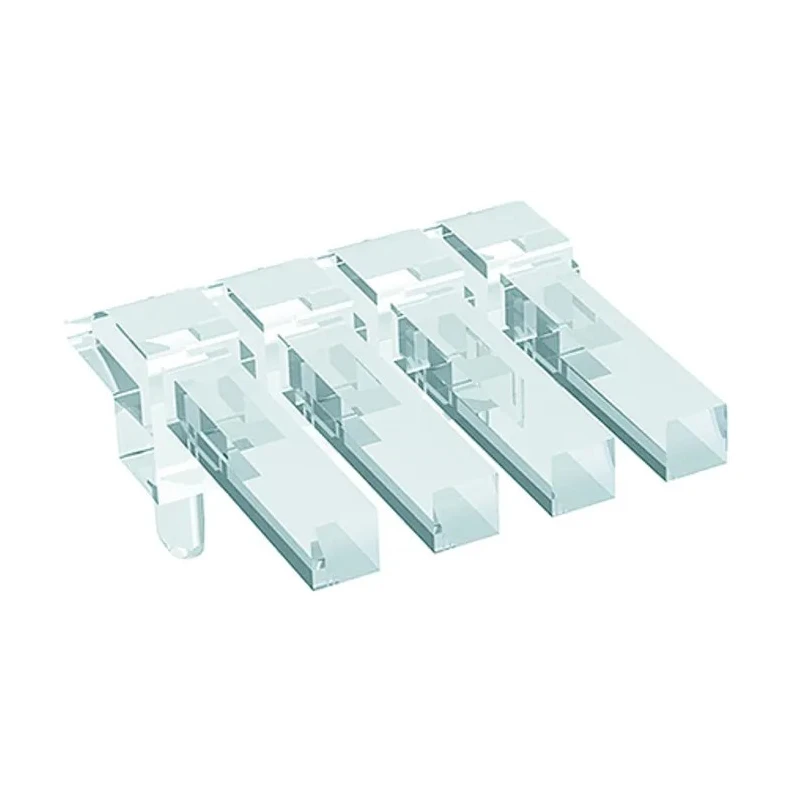

Mentor GmbH PCB 4-Way Right Angle Rigid LED Light Pipe Clear 1.4 mm 1271.2604

Mentor GmbH 1271.2604 PCB 4-Way Right Angle Rigid LED Light Pipe is engineered for efficient light transmission on printed circuit boards. Measuring 11.55 mm in length with a 1.4 mm square lens size, this rigid light pipe allows precise illumination transfer from surface mount LEDs to user interfaces without light bleed or loss.

The right angle orientation and push-fit lug mount design facilitate straightforward installation on PCBs while maintaining optimal proximity to LED sources. Compliant with UL94 standards, it assures reliable performance and safety in electronic applications.

This component features a configuration of one row and four columns, producing four distinct light ways with a total of ten light pipes. The clear lens ensures minimal distortion and maximum light clarity. It operates efficiently across a wide ambient temperature range of -40°C to +85°C, suitable for various industrial and commercial uses.

Mentor light guides protect against electrostatic discharge, enhancing longevity and stability in electronics manufacturing, water treatment controls, laboratory instrumentation, and HVAC systems.

Rigid build providing durability and stable light paths. Right angle design optimizes PCB layout and light direction. Clear 1.4 mm lenses deliver crisp, high-quality illumination. Supports multiple light pipes in a single array for integrated solutions.

UL94 certification confirms flame retardant properties. Ambient temperature tolerance ensures applicability in diverse environments. Ideal for industrial, laboratory, and commercial LED lighting interfaces. Simple push-fit mounting eases assembly and maintenance.

Set contains a 4-way right angle LED light pipe suitable for precise light transmission on PCBs. Explore other LED Light Pipes and components for enhanced electronic design at EnvMart.
