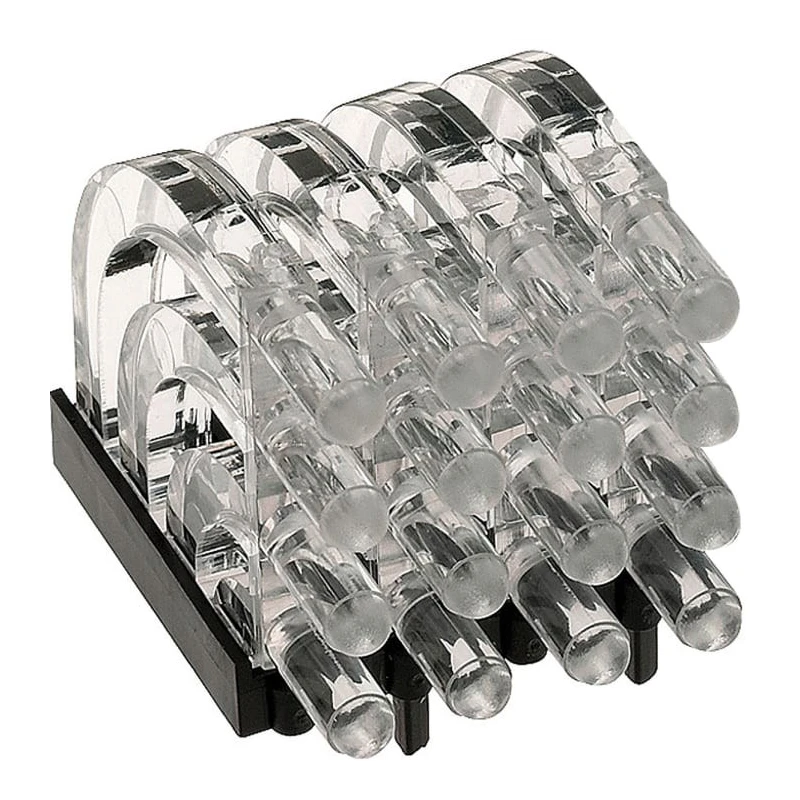

Mentor GmbH Press-In 16-Way Right Angle Rigid LED Light Pipe Clear 3 mm 1279.1004

Mentor GmbH 1279.1004 Press-In 16-Way Right Angle Rigid LED Light Pipe is a high-quality component designed for precise transmission of light from PCB-mounted surface mount LEDs to user interfaces. Featuring a rigid structure and press-in mounting, the light pipe ensures a secure fit on the circuit board and efficient light guidance at a right angle. The pipe consists of 16 ways arranged in a 4 x 4 matrix, totaling 40 dome-shaped LED heads with clear 3 mm lenses, ideal for applications requiring precise light direction and high luminance retention.

The light pipes are manufactured from polycarbonate material compliant with UL94 flame retardancy standards, providing durability and safety in various industrial applications. The inclusion of a black UL94 light diffusing screen minimizes unwanted radiation and light bleed when multiple colors are used simultaneously. Its operating ambient temperature range from -40°C to +85°C makes it suitable for demanding environments.

This model is manufactured in Germany, reflecting stringent quality control and manufacturing standards. It is especially suited for electronics, industrial controls, instrumentation, and laboratory equipment requiring reliable and efficient LED light pipes. Installation is simplified through push-fit lugs for easy PCB mounting.

The product finds use in various fields, including industrial automation, manufacturing, electronic instrumentation, HVAC systems, and commercial electronic devices where clear LED indication and feedback are crucial.

The light pipe is rigid with a press-in mount for secure attachment. It features 16 ways arranged in a 4 x 4 configuration. Constructed with polycarbonate material meeting UL94 standards for flame resistance. Designed for right-angle orientation to guide light efficiently.

Suitable for ambient temperatures from -40°C to +85°C. The light pipes have a clear lens color and dome shape for optimal light diffusion. Comprises 40 light pipes in total, arranged horizontally in four rows. Engineered to minimize light bleed with a PC black UL94 light diffusing screen.

Manufactured in Germany ensuring high quality control. Explore more precision LED Light Pipes and electronic components at EnvMart to support your industrial and electronic design needs.
