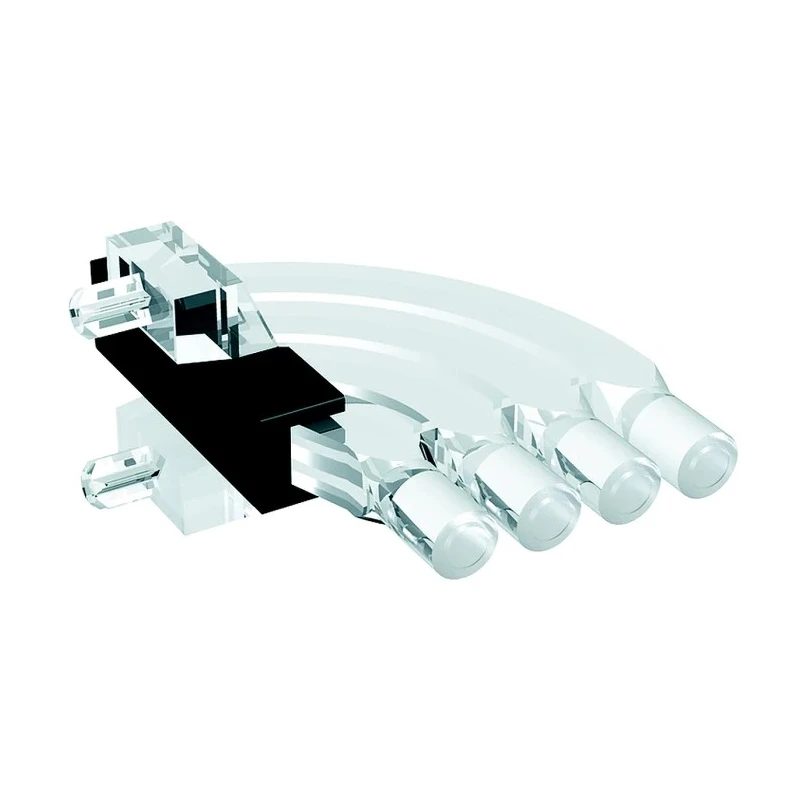

Mentor GmbH Surface 4-Way Right Angle Rigid LED Light Pipe Clear 1276.2004
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 25.2mm |
| Number Of Ways | 4 |
| Mount Type | Surface |
| Outside diameter | 3mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | RoHS |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Dome |
| Number of Light Pipes | 4 |
| Configuration Rows x Columns | 4 x 1 |
| 1276.2004 Mentor GmbH Surface 4-Way Right Angle Rigid LED Light Pipe ClearBrand | Mentor GmbH |
Key Features
- Rigid construction suitable for durable installations.
- Right-angle orientation optimizes light directing capacity.
- Clear dome-shaped light pipe heads with 3mm outside diameter.
- Surface mount type enabling easy PCB attachment via push-fit lugs.
- Consists of 4 parallel light pipes configured in 4 rows by 1 column.
- Compatible with LEDs without including LED components.
- Operates efficiently under ambient temperatures from -40°C to +85°C.
- Manufactured from PC clear material compliant with UL94 flame retardancy standard.
Product Description
Mentor GmbH 1276.2004 Surface 4-Way Right Angle Rigid LED Light Pipe is a precision engineered component designed to transmit light effectively from SMD LEDs mounted on printed circuit boards to the desired user interface. The rigid construction ensures durability and long-term reliability in various electronic applications.
The product features a right-angle orientation that optimizes the directional output of the light, making it suitable for compact and space-sensitive designs. The light pipes consist of four dome-shaped heads, each with a 3mm outside diameter, arranged horizontally in a 4x1 configuration to provide a uniform lighting effect.
Using PC clear material compliant with UL94 flame retardancy standards, this light pipe offers both mechanical strength and safety. It is designed for surface mounting to the circuit board with push-fit lugs, ensuring easy installation and secure fitment.
These horizontal light guides function to preserve luminance with minimal loss and prevent light bleed between adjacent elements using an integrated diffusing screen. This feature helps in achieving distinct and reliable visual signals in complex circuits.
Suitable for use in industrial, commercial, and electronic device manufacturing sectors, the product operates safely within a wide ambient temperature range of -40°C to +85°C, providing stable performance across diverse environmental conditions.
Rigid light pipe construction for long-lasting use. Right-angle orientation for efficient light emission direction. 4-way configuration with dome-shaped LED heads. Surface mount type for easy PCB fitting. Made of PC clear material with UL94 flame retardancy.
Compatible with various surface mount LEDs (LEDs not included). Operates over wide ambient temperature range. Minimizes light bleed and luminance loss for clear signal transmission.
This product is ideal for electronic component assemblies requiring clear indicator illumination or user interface lighting. It is commonly used in LED lighting components, display panels, and optical signaling applications.
Explore the category of LED Light Pipes at EnvMart for more such precision optical components from leading manufacturers including Mentor GmbH.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently under ambient temperatures ranging from -40°C to +85°C.
This model features a surface mount type, enabling easy attachment to the PCB via push-fit lugs.
The light pipe consists of four parallel light pipes arranged in a 4 rows by 1 column configuration.
Each dome-shaped light pipe head has an outside diameter of 3mm.
It is manufactured from clear polycarbonate (PC) material that complies with UL94 flame retardancy standards.
It is compatible with various surface mount LEDs, although the LEDs are not included with the product.
This model features a right-angle orientation, which optimizes the directional output of the light.
This product consists of a total of four light pipes.
The length of the light pipe is 25.2mm.
The light pipe complies with RoHS standards.
It is suitable for use in industrial, commercial, and electronic device manufacturing sectors, particularly for clear indicator illumination or user interface lighting.
This light pipe includes an integrated diffusing screen that helps prevent light bleed between adjacent elements and preserves luminance with minimal loss.
