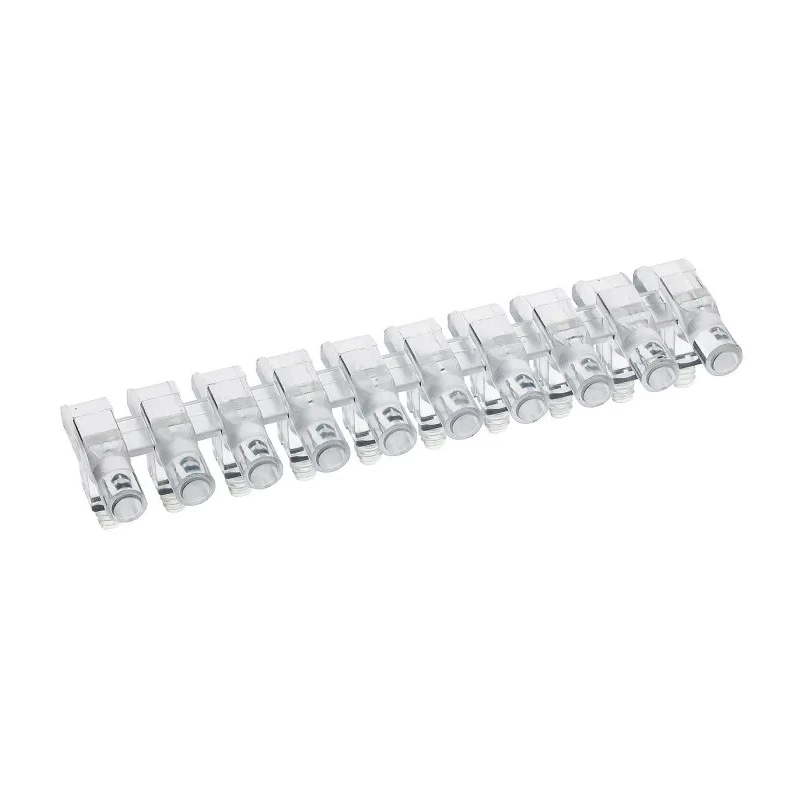

Mentor GmbH Press-In 10-Way Right Angle Rigid LED Light Pipe Clear 1271.1010

Mentor GmbH 1271.1010 Press-In 10-Way Right Angle Rigid LED Light Pipe Clear is a high-quality optical component designed to transmit light efficiently from surface mount LEDs to user interfaces in electronic and LED lighting applications. The rigid light pipe features a right angle orientation and a length of 14.4mm, providing precise light guidance with minimal loss of luminance.

Constructed from clear PMMA material compliant with UL94 standards for flame retardance, this light pipe consists of ten cylindrical channels arranged in a single row with a configuration of 1 x 10. The outside diameter of each pipe is 3mm with an inside diameter of 2.5mm, supporting excellent optical clarity and performance.

The product is designed for press-in mounting on PCBs via push-fit lugs, which positions the light pipe close to the LED source for optimal light injection. It does not include integrated LEDs, focusing solely on transmitting light from SMD LEDs effectively. Its ambient temperature rating of -40°C to +85°C ensures reliable operation across various industrial and commercial environments.

Manufactured in Germany, this Mentor GmbH light pipe provides consistent quality, durability, and high electrostatic discharge (ESD) protection. It is ideally suited for use in electronic component displays, optoelectronics, and specialized LED lighting assemblies requiring accurate and uniform light distribution.

The light pipe features a right angle orientation with a length of 14.4mm. Constructed from clear PMMA material with UL94 compliance for flame retardance. The 10-way configuration consists of cylindrical light pipes with a 3mm outside diameter and 2.5mm inside diameter.

Designed to interface with surface mount (SMD) LEDs via push-fit lugs for easy PCB mounting. Operates reliably in ambient temperatures from -40°C to +85°C. Manufactured in Germany ensuring high-quality standards. Its round heads are arranged in a single row with 1 x 10 configuration providing uniform light guidance.

The light pipe does not include LEDs, making it suitable as an optical guide component only. Ideal for use in electronic displays, optoelectronic applications, and LED lighting components. Offers high ESD protection and low light loss for superior luminance transfer.

This product is highly recommended for industrial and laboratory applications involving precise light transmission, including electronic component manufacturing, LED assembly lines, and display technologies. The design facilitates straightforward installation and durable performance in demanding environments.
