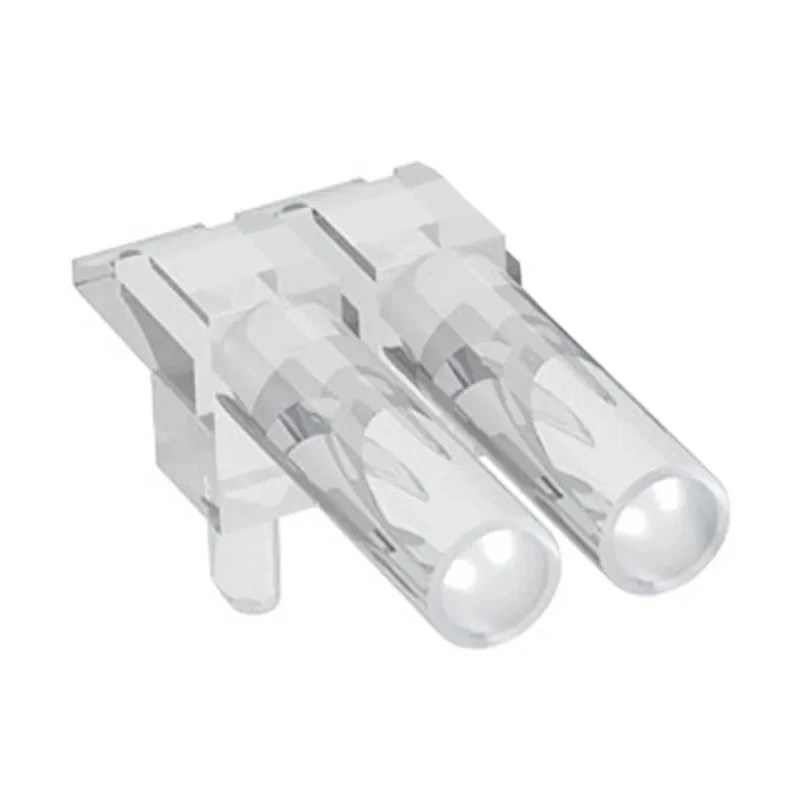

Mentor GmbH PCB 2-Way Right Angle Rigid LED Light Pipe Clear, 2 mm 1271.2002
Specifications
| Country of Origin | India |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 11.55mm |
| Number Of Ways | 2 |
| Mount Type | PCB |
| Outside diameter | 2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Lens Size | 2 mm |
| Light Pipe Shape | Parallel |
| Number of Light Pipes | 10 |
| Configuration Rows x Columns | 1 x 2 |
Key Features
- The light pipe features a right angle orientation for efficient space usage on circuit boards.
- It is constructed with rigid PMMA material, ensuring durability and high performance.
- The product includes 2 ways with a parallel shape and 10 light pipes arranged in 1 row by 2 columns.
- It is compatible with surface mount (SMD) LEDs and mounts directly onto PCBs using push-fit lugs.
- Supports an ambient temperature range from -40°C to +85°C for versatile operational environments.
- Certified with UL94 standards for safety and reliability.
- Provides high ESD protection and minimal light loss or bleed between adjacent elements.
Product Description
Mentor GmbH 1271.2002 PCB 2-Way Right Angle Rigid LED Light Pipe is a high-quality, clear LED light pipe designed to transmit light from surface-mounted LEDs to the desired user interface efficiently. Its rigid PMMA construction and right angle orientation make it ideal for compact PCB arrangements.
The product measures 11.55 mm in length with a 2 mm lens size and an outside diameter of 2 mm. The parallel-shaped light pipes are arranged in a single row with two columns, totaling ten light pipes, ensuring precise and even light transmission.
This LED light pipe is assembled on printed circuit boards using push-fit lugs and does not include LEDs itself. It supports operating ambient temperatures ranging from -40°C to +85°C, making it suitable for various industrial, electronic, and commercial applications.
The product complies with UL94 safety standards and offers excellent electrostatic discharge (ESD) protection, making it dependable for sensitive electronic environments. The rigid nature of the light pipe enhances durability and reduces light bleed between adjacent pipe elements.
The light pipe features a right angle orientation for space optimization on PCBs. Constructed from rigid PMMA material, providing durability and clarity. Dimensions include 11.55 mm length with 2 mm lens size and diameter.
Includes 2 ways and a total of 10 light pipes arranged in 1 row by 2 columns. Designed for use with surface mount LEDs and mounts using push-fit lugs. Operates in ambient temperatures from -40°C to +85°C. Meets UL94 approval for safety compliance.
Ensures minimal luminance loss and high ESD protection.
Ideal for industrial, electronic component manufacturing, laboratory, and commercial LED applications requiring reliable and efficient light transmission on printed circuit boards.
Explore more LED Light Pipe solutions and related Mentor GmbH products at EnvMart for your specific industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this light pipe is 11.55 mm.
The lens size of this model is 2 mm.
It can operate in ambient temperatures ranging from -40°C to +85°C.
This product includes a total of 10 light pipes arranged in 1 row by 2 columns.
It mounts directly onto PCBs using push-fit lugs.
The light pipe is constructed from rigid PMMA material.
It complies with UL94 safety standards.
Yes, it is compatible with surface mount (SMD) LEDs.
The outside diameter of this light pipe is 2 mm.
This model features a right angle orientation for efficient space usage on circuit boards.
It ensures minimal light loss or bleed between adjacent elements due to its design.
It is suitable for various industrial, electronic, and commercial applications requiring reliable light transmission on printed circuit boards.
