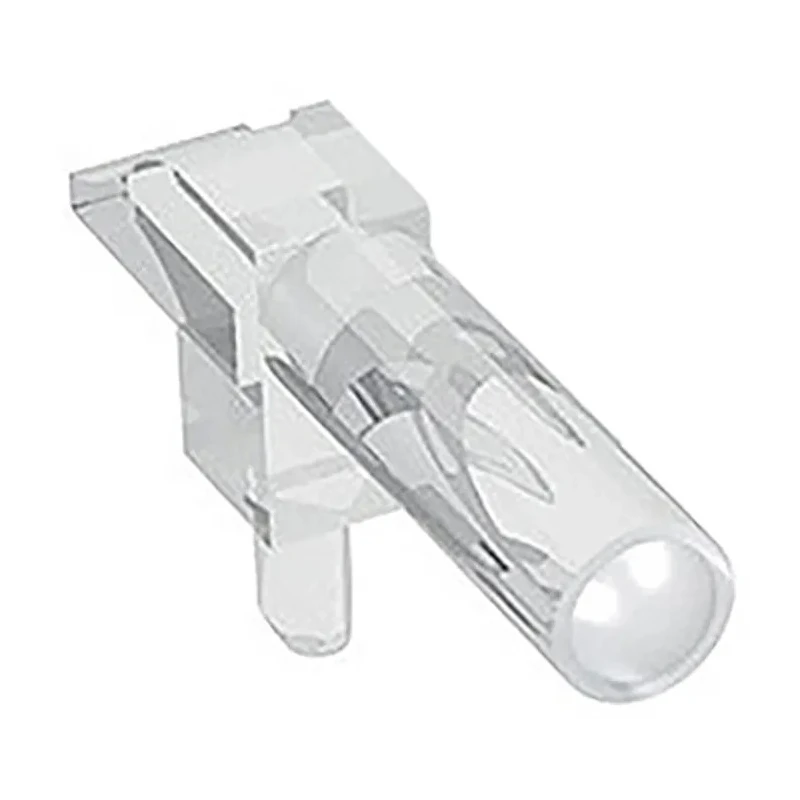

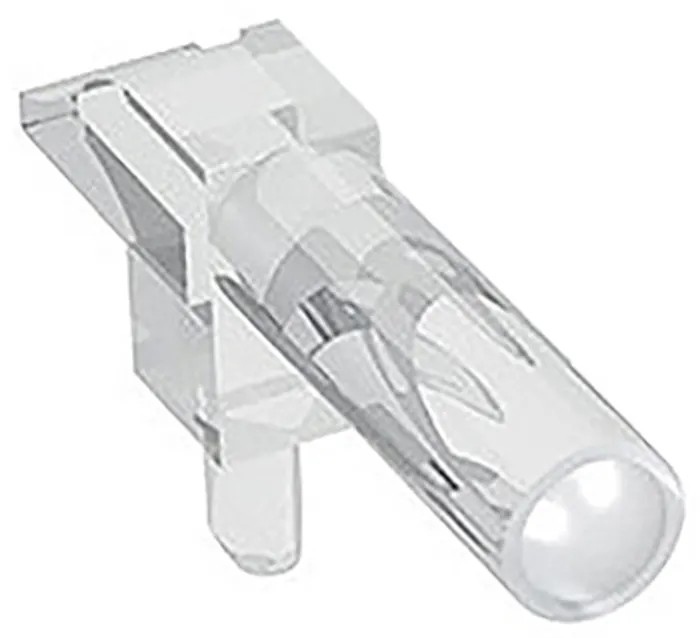

Mentor GmbH PCB 10-Way Right Angle Rigid LED Light Pipe Clear 1271.2001

Mentor GmbH 1271.2001 PCB 10-Way Right Angle Rigid LED Light Pipe Clear is a precision-engineered horizontal light guide intended for electrical and electronic applications involving PCB-mounted LEDs.

This rigid, right angle light pipe assembly features 10 individual round light pipes arranged in a single row (1 x 1 configuration), each with an inside and outside diameter of 2 mm, and an overall length of 11.55 mm. The unit is made from clear PMMA material that complies with UL94 flammability rating, ensuring safety and durability in demanding environments.

Designed for push-fit mounting on printed circuit boards (PCB), this light pipe efficiently transfers LED light to the user interface panel with minimal loss of brightness and negligible light bleed between pipes, thanks to its high optical clarity and precise construction.

The product is engineered to withstand a wide ambient temperature range from -40°C to +85°C, making it suitable for various industrial and commercial electronic devices. It is an ideal component for use in LED lighting components, displays, and instrumentation requiring reliable optical performance.

The 10-way configuration allows multiple LEDs to be utilized for complex indicator arrays. The right angle orientation provides versatile installation options on PCBs. High ESD protection is inherent to the Mentor light guide designs.

The clear lens color offers excellent light clarity and transmission. The product is manufactured in Germany, adhering to stringent quality and reliability standards. Perfect for electronics, industrial controls, instrumentation, and other applications needing accurate LED light guidance.

Complies with UL94 for flame resistance, supporting safety compliance in electronic assemblies. EnvMart offers this precision-engineered component to support your industrial, commercial, and laboratory LED lighting needs.
