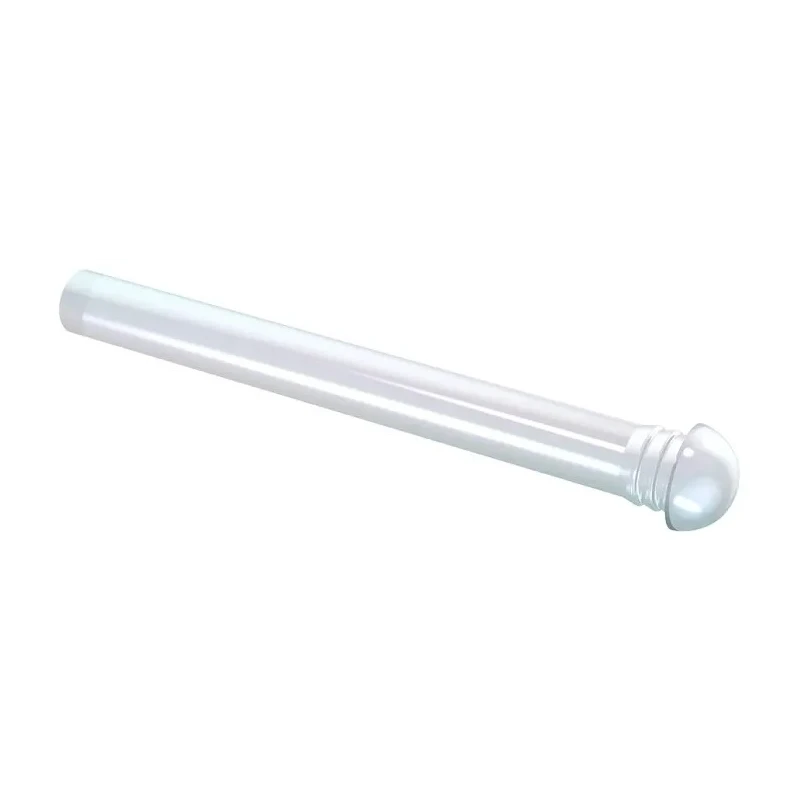

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow 1293.5001

Mentor GmbH 1293.5001 Panel Mount 1-Way Straight Rigid LED Light Pipe is engineered for transmitting light efficiently from surface mounted LEDs to front panels, ensuring minimal luminance loss and no light bleed. The clear yellow light pipe with a rigid design measures 46.5mm in length and is designed for panel mounting applications.

Constructed from clear PC UL94 flame retardant material, this LED Light Pipe features a straight inject face at 0°, perfectly aligning with the LED source for maximum light transmission. It fits LEDs from OSRAM's SIDELED, TOPLED, and CHIPLED families, making it versatile for various indicator applications.

Rated with IP68 waterproofing, the light pipe is suitable for use in harsh and demanding environments, such as industrial controls, medical devices, security systems, and communication equipment. The pipe dimensions include a 4mm inside diameter and a 5.2mm outside diameter, accommodating standard LED sizes.

The product meets stringent safety and quality standards including DIN EN 60297-3-100:2009-09 and UL94 certification. It functions reliably across an ambient temperature range from -20°C to +50°C.

Its round/square/spherical/planar/counterbore shaped lenses offer various design options for front panel integration. The light pipe is a cost-effective solution providing visual LED status whilst safeguarding LEDs from the external environment.

The light pipe features a 46.5mm length with rigid construction for durability. It is a panel mount type suitable for secure installation. The orientation is straight with a 0° inject face for optimal LED light transmission.

Made from clear PC UL94 material providing excellent flame retardancy and clarity. The pipe accommodates a 4mm inside diameter and a 5.2mm outside diameter. It supports yellow LED color without including the LED itself. The product offers IP68 waterproof rating, suitable for harsh environmental conditions.

It complies with DIN EN 60297-3-100:2009-09 and UL94 standards. Operational ambient temperature range is from -20°C to +50°C. The light guide is ideal for use in medical devices, security, communications, and industrial control applications.
