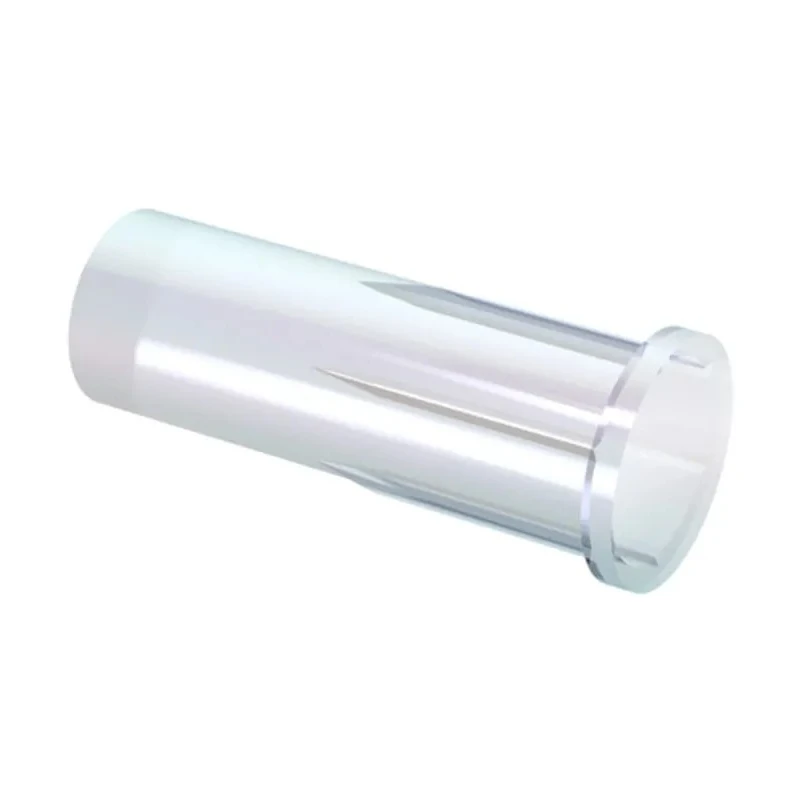

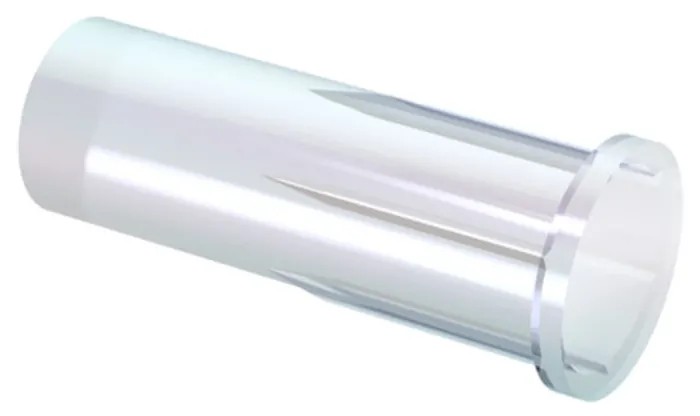

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear, Yellow 1293.1400

Mentor GmbH 1293.1400 Panel Mount 1-Way Straight Rigid LED Light Pipe is specifically engineered for front panel integration in a variety of industrial and electronic applications. This product is designed to channel light efficiently from PCB-mounted LEDs to the user interface with minimal luminance loss and no light bleed, ensuring clear, focused illumination.

Constructed from a clear polycarbonate material that meets UL94 flame retardant standards, the light pipe ensures durability and safety within demanding environments. The rigid design combined with a straight 0° inject face facilitates precise alignment with LEDs including OSRAM Opto Semiconductor's SIDELED, TOPLED, and CHIPLED series.

With a length of 45.4 mm, inside diameter of 4 mm, and outside diameter of 5 mm, it is suitable for panel mount configurations where a secure push-fit installation is required. Operating effectively within an ambient temperature range of -40°C to +85°C, it supports applications spanning medical devices, security systems, communications equipment, and industrial control panels.

This single-way LED light pipe provides excellent ESD protection and allows for flexible design implementations by not requiring attachment directly to the PCB. The clear lens colour combined with yellow LED colour enhances visual identification and status indication on front panels.

The light pipe is rigid and features a straight 0° inject face for precise light transmission. It is panel mountable, ideal for use with surface mounted (SMD) LEDs such as SIDELED, TOPLED, and CHIPLED. Constructed from clear PC material complying with UL94 standard, ensuring flame retardant quality.

Measures 45.4 mm in length with a 4 mm inside diameter and 5 mm outside diameter. Operates in ambient temperatures from -40°C to +85°C. Push-fit design allows easy installation without attachment to the PCB. High ESD protection and no light bleed between adjacent elements.

Suitable for medical, security, communication, and industrial control applications.

Choose Mentor GmbH 1293.1400 for reliable and effective LED light guiding solutions in your front panel designs. Browse more LED Light Pipe components in EnvMart’s extensive Electronics & Electricals section for optimized assembly and integration.
