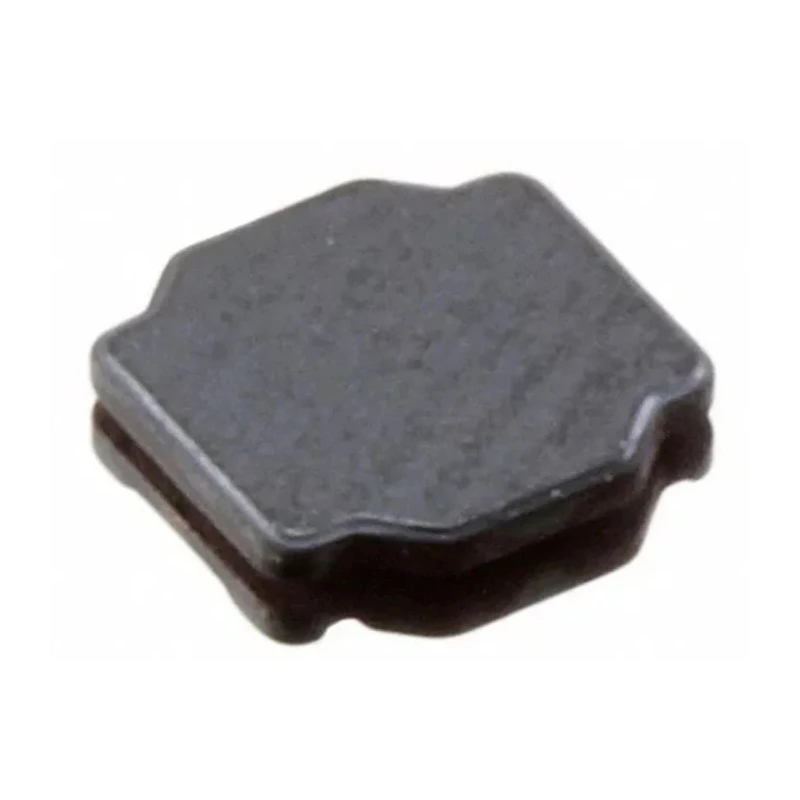

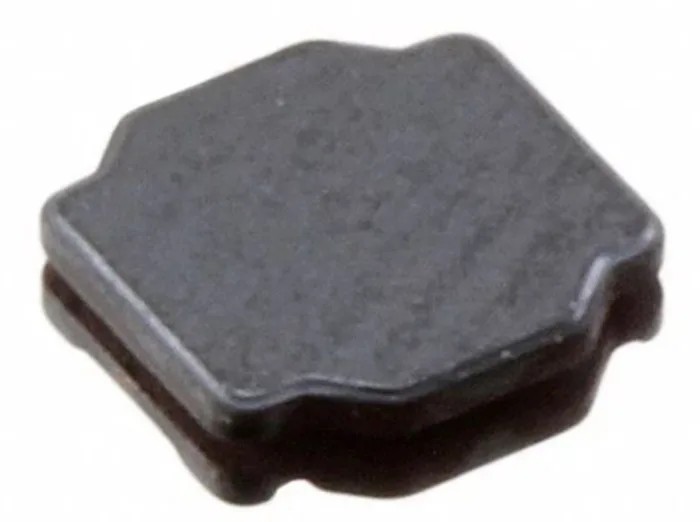

Murata Shielded Surface Mount Inductor LQH44PZ2R2NGRL 2.2 μH ±30% 2 A Idc Ferrite Core 4040 Case
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.9mm |
| Length | 4mm |
| Model | LQH44PZ2R2NGRL |
| Depth | 4mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 4040 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 88.8mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 45MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core and shielded design for improved performance.
- Compact 4040 package size with 4 mm length, 0.9 mm height, and 4 mm depth.
- Low maximum DC resistance of 88.8 mΩ ensures efficient current flow.
- Wirewound construction with solder termination style for reliable mounting.
- Meets AEC-Q200 automotive standards and RoHS compliance.
- Embossed tape packaging suitable for surface mount assembly.
- Operates reliably between -40°C to higher temperatures.
- Maximum self-resonant frequency of 45 MHz suitable for high-frequency applications.
Product Description
Murata LQH44PZ2R2NGRL is a shielded Surface Mount Inductor featuring a ferrite core and wirewound construction. This 2.2 μH inductor has an inductance tolerance of ±30% and can handle a maximum DC current of 2 A, making it ideal for power supply step-up and step-down circuits in industrial and automotive electronics.
The inductor comes in a compact 4040 package with dimensions of 4 mm length, 0.9 mm height, and 4 mm depth, enabling space-efficient PCB designs. It incorporates solder termination style for secure mounting on printed circuit boards. The device is packaged in embossed tape for ease of automated assembly.
Designed to meet the AEC-Q200 automotive standard and RoHS environmental compliance, this Murata LQH series inductor excels in maintaining low DC resistance of 88.8 mΩ, enhancing efficiency and reducing power loss. The ferrite core and shielding contribute to high inductance with minimal interference.
The maximum self-resonant frequency is 45 MHz, supporting applications requiring operation at high frequencies. The product operates within a broad temperature range starting at -40°C, ensuring durability in challenging environments.
This component is suitable for use in mobile computing devices, industrial electronics, and automotive systems requiring reliable, high-performance inductors with low resistance and high current capability.
Constructed with a ferrite core and shielded design for improved performance. Compact 4040 package size with 4 mm length, 0.9 mm height, and 4 mm depth. Low maximum DC resistance of 88.8 mΩ ensures efficient current flow.
Wirewound construction with solder termination style for reliable mounting. Meets AEC-Q200 automotive standards and RoHS compliance. Embossed tape packaging suitable for surface mount assembly. Operates reliably between -40°C to higher temperatures.
Maximum self-resonant frequency of 45 MHz suitable for high-frequency applications. Explore the Murata LQH series inductors for your industrial, automotive, and electronic component needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 2.2 μH with an inductance tolerance of ±30%.
This model can handle a maximum DC current of 2 A.
The dimensions of the 4040 package are 4 mm in length, 0.9 mm in height, and 4 mm in depth.
The maximum DC resistance is 88.8 mΩ, which ensures efficient current flow.
The maximum self-resonant frequency of this inductor is 45 MHz, suitable for high-frequency applications.
It operates reliably within a temperature range starting from -40°C.
The inductor is constructed with a ferrite core, which contributes to its performance characteristics.
This model features a solder termination style for reliable mounting on printed circuit boards.
Yes, it meets AEC-Q200 automotive standards and is RoHS compliant.
The inductor is packaged in embossed tape, which is suitable for surface mount assembly.
This inductor is suitable for use in power supply step-up and step-down circuits in industrial and automotive electronics.
The inductor features a wirewound construction, which enhances its performance.
