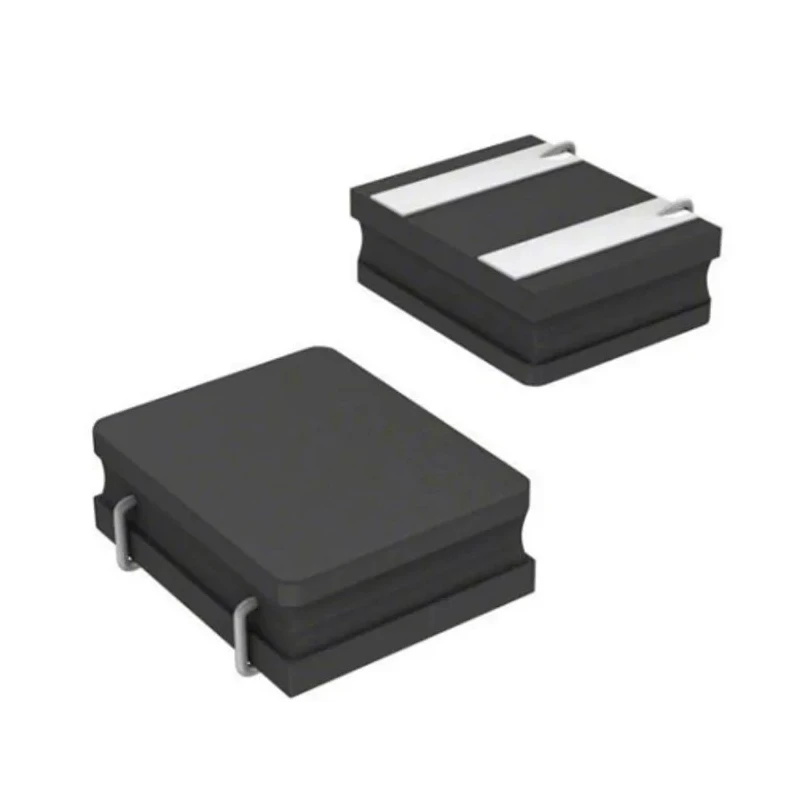

Murata Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±20 % 1.05 A Idc 2520 Package LQH2HPZ6R8MJRL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 1.1mm |
| Length | 2.5mm |
| Model | LQH2HPZ6R8MJRL |
| Depth | 2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 2520 |
| Maximum DC Current | 1.05A |
| Pin Count | 2 |
| Maximum DC Resistance | 310mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 35MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed for high inductance with low DC resistance.
- Features a ferrite core and copper wire winding for durability and performance.
- Packaged in a 2520 surface mount case with embossed tape for assembly efficiency.
- Supports a maximum self-resonant frequency of 35 MHz for stable operation.
- Meets automotive standard AEC-Q200 for quality and reliability.
- Shielded construction minimizes electromagnetic interference.
- Operates reliably between -40°C and typical maximum temperature range.
- Ideal for use in mobile phones, TVs, and digital camera electronics.
Product Description
Murata LQH2HPZ6R8MJRL is a shielded wirewound surface mount inductor featuring a ferrite core that delivers an inductance of 6.8 μH with a ±20% tolerance. This component is engineered for use in applications requiring high inductance and low DC resistance, making it suitable for demanding electronics such as mobile phones, televisions, and digital cameras.
The inductor is encapsulated in a 2520 package case with an embossed tape for convenient automated placement. The copper wire wound around the ferrite core ensures efficient magnetic performance and durability. Its shielded design effectively limits electromagnetic interference, contributing to overall device stability.
Designed to operate at currents up to 1.05 A DC, the LQH2HPZ6R8MJRL supports a maximum self-resonant frequency of 35 MHz. It complies with the AEC-Q200 automotive quality standard, ensuring robustness in harsh environments. Operating temperatures range down to -40°C, accommodating diverse industrial and commercial applications. Solder termination style facilitates reliable surface mounting on PCBs.
This inductor is RoHS compliant, meeting environmental safety regulations. It is moulded and constructed with wirewound technology to ensure consistent performance. Designed for high inductance with low DC resistance. Features a ferrite core and copper wire winding for durability and performance.
Packaged in a 2520 case with embossed tape packaging. Supports a maximum self-resonant frequency of 35 MHz. Meets automotive standard AEC-Q200 for quality assurance. Shielded to reduce electromagnetic interference. Operates within -40°C to high temperature ranges.
Ideal for mobile phones, TVs, and digital cameras. Solder termination for surface mount applications. RoHS compliant for environmental safety.
This product is suited for use in industrial, electronics manufacturing, telecommunications, and commercial electronic equipment assembly. The LQH2HPZ6MJRL series inductors provide reliable performance for power regulation, filtering, and signal conditioning.
Explore more Surface Mount Inductors and related components to complete your electronic design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8 μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.05 A.
This inductor supports a maximum self-resonant frequency of 35 MHz.
The dimensions of this model are 2.5 mm in length, 2 mm in depth, and 1.1 mm in height.
It features a ferrite core, which is designed for efficient magnetic performance.
The termination style is solder, facilitating surface mounting on PCBs.
Yes, it meets the AEC-Q200 automotive quality standard, ensuring reliability in automotive applications.
The maximum DC resistance is 310 mΩ.
It is packaged in embossed tape, which is suitable for automated assembly processes.
This inductor operates reliably between -40°C and the typical maximum temperature range.
Yes, it is RoHS compliant, meeting environmental safety regulations.
It is ideal for use in mobile phones, televisions, and digital cameras, among other electronic devices.
