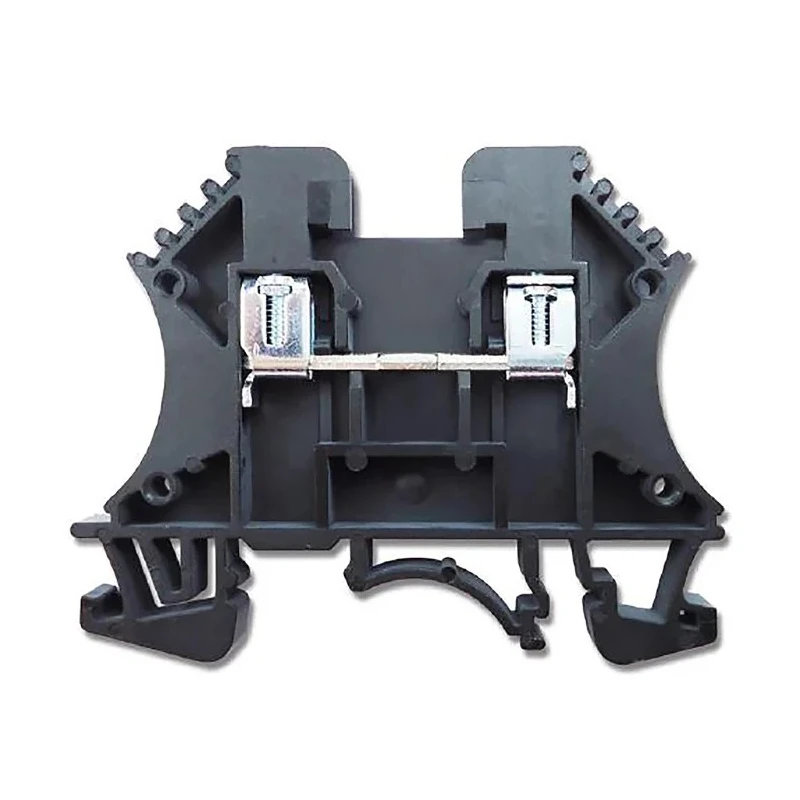

RS PRO DIN Rail Terminal Block Black 2.5mm² 1-Level Screw Terminal 800V 24A 878-7496
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 800V |
| Brand | RS PRO |
| Colour | Black |
| Model | 878-7496 |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC, UL, CSA, cUL |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
| RS PRO DIN Rail Terminal Block Beige, 2.5mm², 1-Level, ScrewBrand | RS PRO |
| 878-7487 | Screw Clamp Terminal Blocks, 2.5sq.mm |
| 878-7496 | Screw Clamp Terminal Blocks, 2.5sq.mm Black |
| 878-7499 | Screw Clamp Terminal Blocks, 2.5sq.mm Blue |
| 913-1207 | Screw Clamp Terminal Blocks, 2.5sq.mm Orange |
| 913-1201 | Screw Clamp Terminal Blocks, 2.5sq.mm Red |
| 878-7519 | Screw Clamp Terminal Blocks, 4sq.mm |
| 913-1210 | Screw Clamp Terminal Blocks, 4sq.mm Blue |
| 878-7534 | Screw Clamp Terminal Blocks, 6sq.mm |
| 913-1213 | Screw Clamp Terminal Blocks, 10sq.mm |
Key Features
- Supports wire sizes from 22 AWG to 10 AWG with a cable cross-sectional area of 2.5mm².
- Operates up to 800V voltage with a maximum current rating of 24A.
- Features screw clamp termination for secure wire connections.
- Durable black color housing with excellent vibration resistance.
- Operating temperature range from -40°C to 105°C for versatile industrial environments.
- Conforms to IEC, UL, CSA, and cUL standards for global compliance.
- Easy mounting and dismounting from DIN rails for quick installation and maintenance.
- Maintenance free design ensuring high reliability in power and connector applications.
Product Description
RS PRO 878-7496 DIN Rail Terminal Block is a reliable, black-colored, screw clamp terminal block designed for industrial and electronic power connector applications. It supports wire cross-sections from 2.5mm² and wire sizes ranging between 22 AWG and 10 AWG, ensuring flexibility to accommodate various wiring requirements. Operating at voltages up to 800V and currents of 24A, it guarantees safe and robust electrical connections.
Constructed to endure harsh operating conditions, this terminal block withstands temperatures ranging from -40°C to 105°C, making it suitable for diverse industrial, manufacturing, HVAC, and electrical systems. The screw termination type offers secure clamping of wires without the need for special preparations, facilitating efficient handling and connection.
Compliant with internationally recognized standards IEC, UL, CSA, and cUL, the product ensures global applicability and safety. The block’s design provides excellent vibration resistance, further improving connection stability in demanding environments. Its easy mounting and removal from DIN rails simplify installation and maintenance tasks, supporting operational efficiency.
This terminal block is maintenance free and offers very low contact resistance, enhancing electrical performance and reliability within power distribution and control cabinets. Supports wire sizes from 22 AWG to 10 AWG with 2.5mm² cable CSA.
Rated for 800V and 24A current. Screw clamp termination for secure and easy wiring. Strong vibration resistance and durable construction. Wide operating temperature range from -40°C to 105°C. Complies with IEC, UL, CSA, and cUL standards.
Simple mounting/dismounting on DIN rails. Maintenance free with very low contact resistance.
This RS PRO DIN Rail Terminal Block is ideal for industrial automation, electrical enclosures, manufacturing facilities, laboratories, HVAC systems, and other commercial or industrial settings requiring reliable terminal block solutions.
Explore more from RS PRO and similar DIN Rail Terminal Blocks in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 800V.
It supports wire sizes ranging from 22 AWG to 10 AWG, with a cable cross-sectional area of 2.5mm².
The operating temperature range is from -40°C to 105°C.
This terminal block uses a screw clamp termination type for secure wire connections.
It conforms to IEC, UL, CSA, and cUL standards for global compliance.
It features excellent vibration resistance, enhancing connection stability in demanding environments.
Yes, it is designed to be maintenance free, ensuring high reliability in power and connector applications.
The terminal block is black in color.
It allows for easy mounting and dismounting from DIN rails, simplifying installation and maintenance tasks.
The country of origin for this terminal block is Taiwan.
