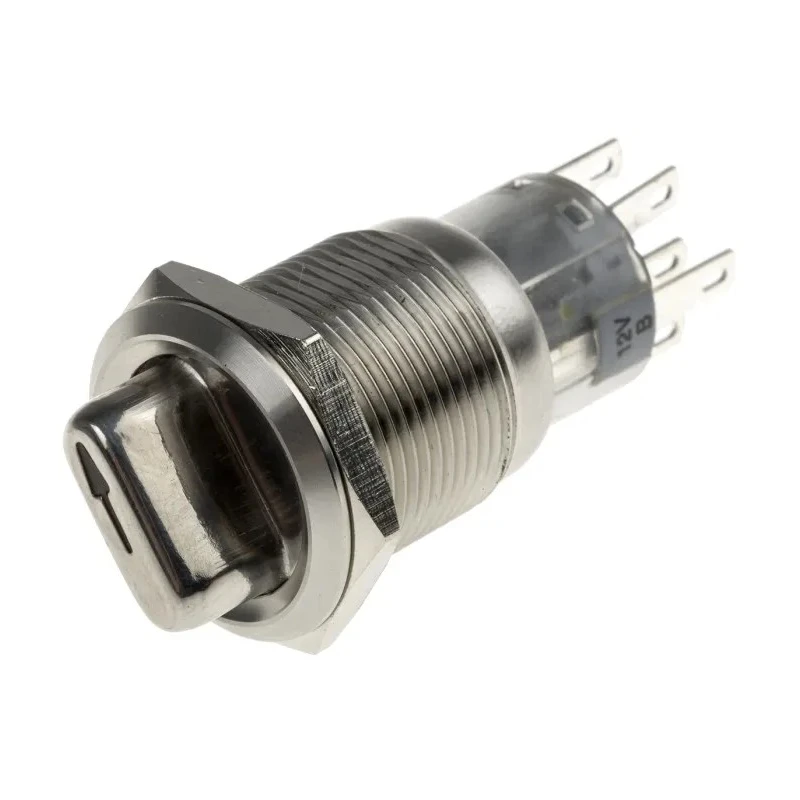

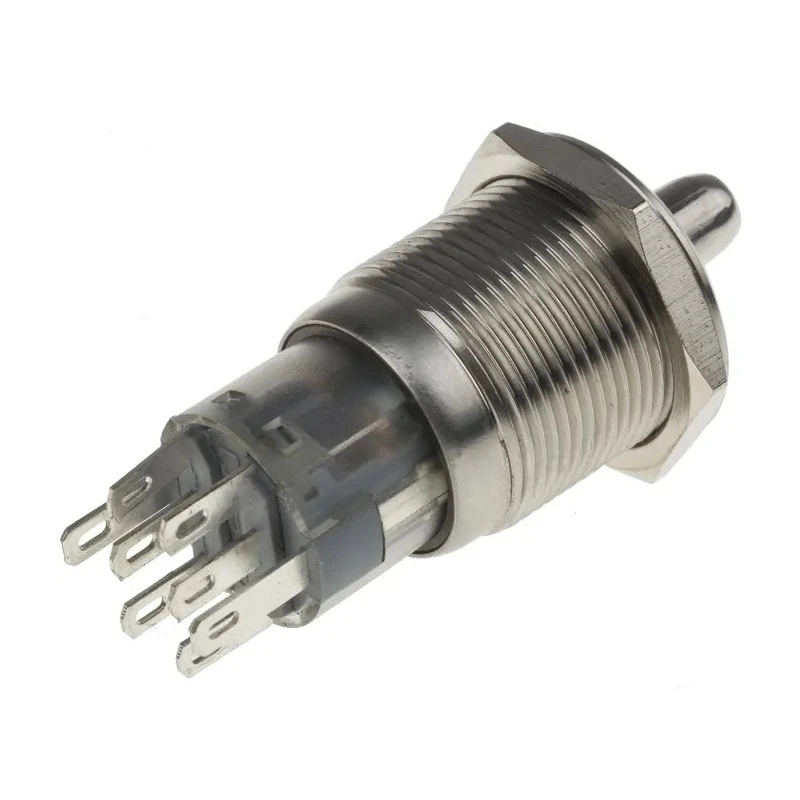

RS PRO Illuminated Rotary Selector Switch On-On 2 Positions IP67 12 V 5 A Stainless Steel 877-1983

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Illuminated Rotary Selector Switch On-On 2 Positions IP67 12 V 5 A Stainless Steel 877-1983

Name: RS PRO Illuminated Rotary Selector Switch On-On 2 Positions IP67 12 V 5 A Stainless Steel 877-1983
Brand: RS PRO
SKU: 384046
Price: 3417.16 INR
Availability: InStock



Category Selector Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	877-1983
IP Rating	IP67
Series	RS PRO
Contact Configuration	On-On
Number of Positions	2
Terminal type	Quick Connect, Solder
Standards/Approvals	RoHS Compliant, CE, UL
Switch Operation	Maintained
Angle of Throw	90 °

Key Features

Features a robust stainless steel case with IK02 impact resistance.
Offers IP67 ingress protection suitable for wet and dusty environments.
Blue illuminated actuator provides clear position indication.
Operates at 12 V with a contact current rating of 5 A at 250 V AC.
Quick connect and solder terminal types simplify connections.
Mechanical life rated at 50,000 cycles under no load.
Includes a mounting hole size of 19.2 mm with sealing O-ring and nut.
Complies with RoHS, CE, and UL safety standards.

Product Description

RS PRO 877-1983 is a 90° rotary selector switch featuring two maintained On-On positions with an illuminated blue actuator for user-friendly operation. Constructed from robust stainless steel and certified with an IK02 impact rating, it offers enhanced durability to withstand potential vandalism or mechanical impact in public and industrial environments.

The switch is rated IP67 for superior ingress protection, making it suitable for use in wet or dusty conditions typical of outdoor or harsh indoor industrial applications. Operating voltage is 12 V with a contact current capacity of 5 A at 250 V AC, offering reliable electrical performance.

Terminals are designed for quick connect and soldering options allowing flexible wiring choices for various installation requirements. With a mechanical lifespan of 50,000 cycles, this selector switch ensures long-lasting operation with minimal maintenance.

The switch includes a panel sealing O-ring and mounting nut for secure front panel fitting with a mounting hole size of 19.2 mm. Compliance with RoHS, CE, and UL standards assures adherence to necessary safety and environmental regulations.

This product is extensively used in industrial automation, vending and dispensing machines, medical equipment, public transportation systems, and self-service kiosks that demand reliable, visually identifiable selector switches.

Robust stainless steel case with IK02 impact resistance. IP67 rated for protection against dust and water ingress. Illuminated blue actuator for clear visual indication. Maintained On-On contact configuration with 2 positions.

Operating voltage 12 V with 5 A contact current rating at 250 V AC. Quick connect and solder terminal types for versatile wiring. Mechanical life of 50,000 cycles without load. Mounting hole size 19.2 mm with included sealing O-ring and nut.

Compliant with RoHS, CE, and UL safety standards. Explore the comprehensive range of Selector Switches at EnvMart for industrial, commercial, and public facility automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The selector switch has an IP67 rating, providing protection against dust and water ingress, making it suitable for wet and dusty environments.

It operates at 12 V with a contact current rating of 5 A at 250 V AC.

The mechanical life of this switch is rated at 50,000 cycles under no load conditions.

This model features quick connect and solder terminal types, allowing for versatile wiring options.

The switch includes a mounting hole size of 19.2 mm, along with a sealing O-ring and nut for secure fitting.

It complies with RoHS, CE, and UL safety standards, ensuring adherence to necessary safety and environmental regulations.

The switch features a maintained On-On contact configuration with two positions.

The case of the switch is constructed from robust stainless steel, providing enhanced durability.

This model has an angle of throw of 90 degrees, allowing for clear position changes.

This selector switch is extensively used in industrial automation, vending machines, medical equipment, public transportation systems, and self-service kiosks.

It features a blue illuminated actuator, providing clear visual indication of the switch position.
