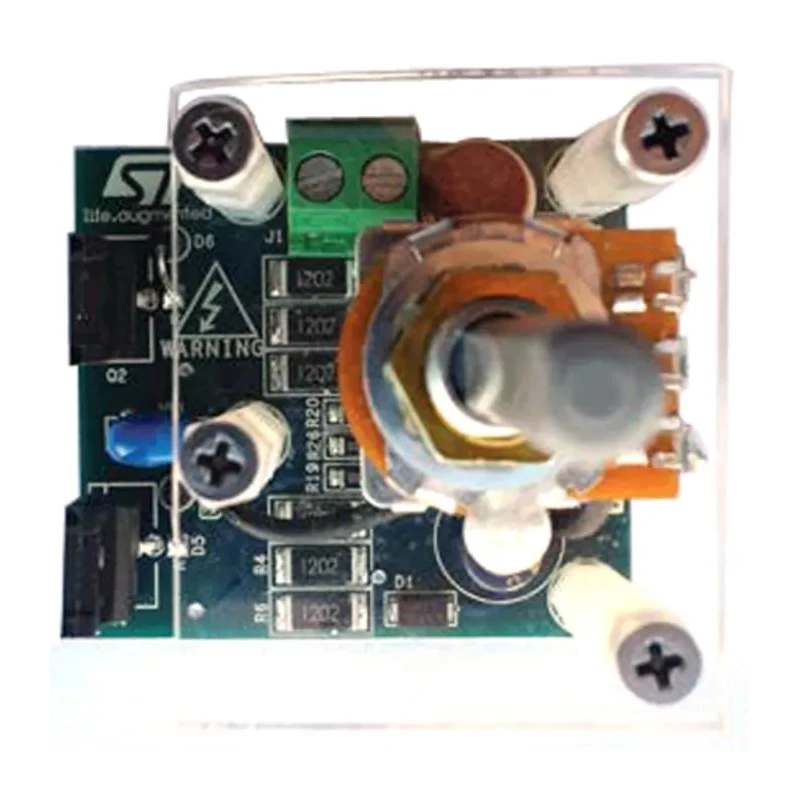

STMicroelectronics Evaluation Board Potentiometer Dimmer for STF17N62K3 STEVAL-ILD005V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILD005V1 |
| Kit Classification | Evaluation Board |
| Featured Device | STF17N62K3 |
| Kit Name | Evaluation Board |
Key Features
- Implements a reverse phase cut dimming solution for analogue wall dimmers.
- Uses a pair of STF17N62K3 power MOSFETs for power control.
- Operates on 230V RMS mains voltage at 50/60Hz.
- Supports trailing-edge control compatible with resistive or capacitive lighting loads.
- Dimmable power range from 40W to 300W.
- Includes a linear rotary potentiometer with a mechanical switch for ON/OFF and dimming functions.
- Designed for operation as a 2-wire wall dimmer.
- Compact evaluation board suitable for development and testing.
Product Description
STMicroelectronics STEVAL-ILD005V1 Evaluation Board Potentiometer Dimmer is designed for efficient and simple reverse phase cut dimming of lighting loads using the STF17N62K3 power MOSFETs. It operates on standard 230V AC mains (50/60Hz) and is compatible with both resistive and capacitive loads, supporting dimming in the 40W to 300W range.
This evaluation board features a trailing edge control mechanism implemented via a pair of STF17N62K3 MOSFETs, offering smooth light dimming and on/off power switching functionalities. The control interface consists of a single linear rotary potentiometer equipped with a mechanical switch, enabling easy up/down dimming and power control.
Designed as a compact 2-wire wall dimmer solution, the STEVAL-ILD005V1 is ideal for developers and engineers requiring a reliable method to evaluate potentiometer-based dimming circuits for LED drivers, lighting ICs, and other power management applications in industrial, commercial, and residential settings.
Implements reverse phase cut dimming with STF17N62K3 MOSFETs. Operates on 230V RMS AC supply at 50/60Hz frequency. Supports dimmable power from 40W up to 300W for versatile lighting use. Trailing edge phase control compatible with resistive and capacitive loads.
Single rotary potentiometer with mechanical switch for intuitive control. Suitable for industrial and laboratory testing of power and motor control systems. Compact form factor for easy integration into evaluation setups.
Explore the STEVAL-ILD005V1 and related Evaluation Boards in the Power, Motor & Robotics Development Tools category on EnvMart for reliable development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a dimmable power range from 40W to 300W, making it versatile for various lighting applications.
It implements a reverse phase cut dimming solution using trailing edge control, which is compatible with both resistive and capacitive lighting loads.
The STEVAL-ILD005V1 operates on a standard 230V RMS AC supply at a frequency of 50/60Hz.
Dimming is controlled via a single linear rotary potentiometer that includes a mechanical switch for ON/OFF functions.
This evaluation board is designed for testing and developing potentiometer-based dimming circuits for LED drivers and other power management applications.
It supports both resistive and capacitive lighting loads, providing flexibility in various lighting setups.
This model features a compact form factor, making it suitable for easy integration into evaluation setups.
The board includes a linear rotary potentiometer with a mechanical switch for intuitive control of dimming and power functions.
The country of origin for this evaluation board is India.
The featured device for this model is the STF17N62K3 power MOSFET, which is integral to its operation.
Yes, it is designed for use in industrial, commercial, and residential settings, making it versatile for various applications.
The STEVAL-ILD005V1 is classified as an Evaluation Board, specifically designed for power management applications.
