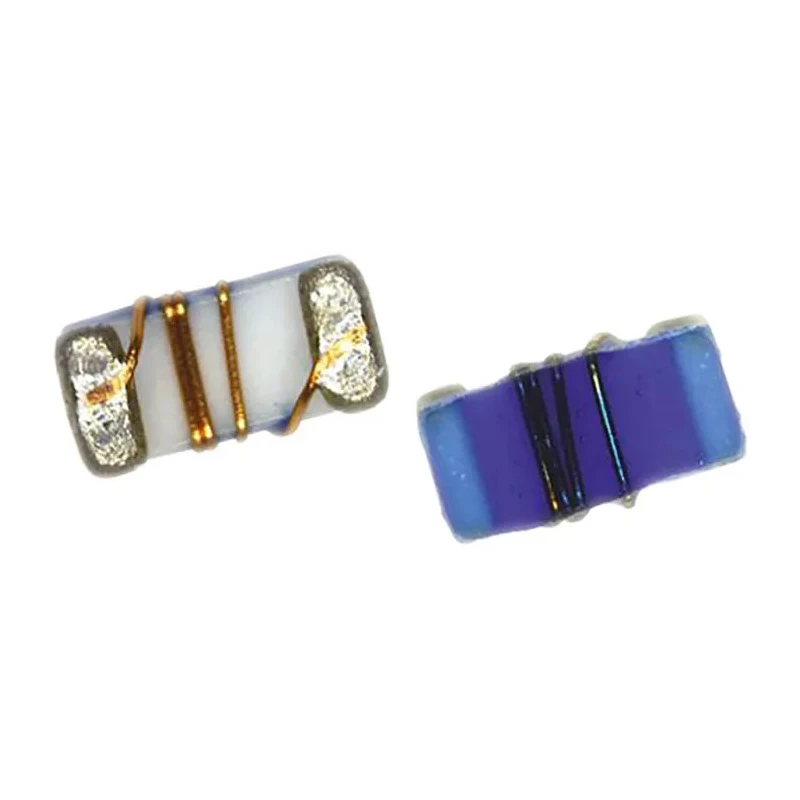

Murata 0603 Unshielded Wirewound Surface Mount Inductor 22 nH ±5% 640 mA Idc Ceramic Core LQW18AN22NJ10D

Murata LQW18AN22NJ10D is a high quality 0603 unshielded wirewound surface mount inductor featuring a ceramic core designed for high-frequency circuits. With an inductance of 22 nH and a tolerance of ±5%, this component supports up to 640 mA DC current, making it ideal for reliable circuit performance in modern electronics.

The compact 0603 package measures 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, facilitating integration in space-constrained PCBs. The wirewound construction reduces losses and offers excellent quality factors (Q of 42 minimum), enabling use in wireless telecommunications circuits such as Bluetooth, GSM, and WLAN applications.

The inductor exhibits a low maximum DC resistance of 99 mΩ and a high maximum self-resonant frequency of 3.2 GHz, suitable for VHF and UHF frequency bands. Its ceramic core ensures stable operation over a wide temperature range of -55°C to 125°C. RoHS compliance and solder termination style allow straightforward automated surface mounting using paper tape packaging.

Murata’s LQW18AN22NJ10D series inductors are optimized for high frequency and low resistance, making them excellent choices for demanding industrial and commercial RF applications. This product is manufactured in Japan, assuring quality and reliability for professional use.

Compact 0603 size with 1.6 mm length and low profile. Wirewound design for high Q and stability. Up to 640 mA DC current capacity with low resistance. Frequency range supports up to 3.2 GHz operation. Ceramic core for robust thermal and mechanical performance.

RoHS compliant, suitable for automated assembly. Wide operating temperature range from -55°C to 125°C. Ideal for wireless communication equipment and RF circuits. Explore a broad range of Surface Mount Inductors and other passive components at EnvMart for your industrial and manufacturing needs.
