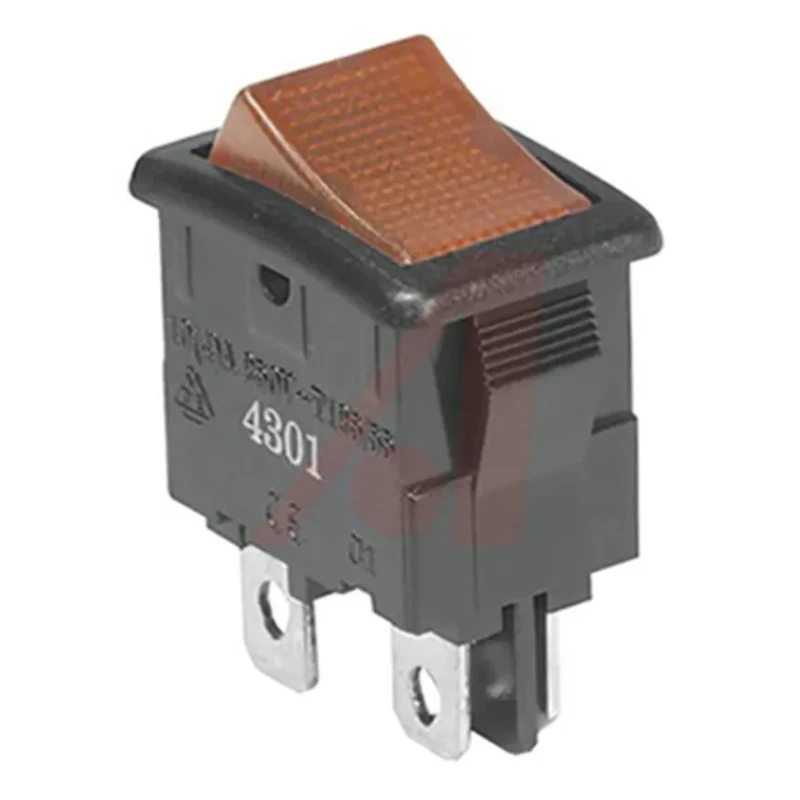

ZF Illuminated DPST On-Off On-Off Rocker Switch Panel Polyamide 66 Housing IP66 LRA32H2BBRLN

Free Delivery in India | Lowest Global Shipping Charges

ZF Illuminated DPST On-Off On-Off Rocker Switch Panel Polyamide 66 Housing IP66 LRA32H2BBRLN



Category Rocker Switch Brand ZF Condition New

Specifications

Country of Origin	China
Brand	ZF
Model	LRA32H2BBRLN
IP Rating	IP66
Mount Type	Panel
Housing Material	Polyamide 66
Maximum Operating Temperature	65°C
Contact Configuration	DPST
Switch Configuration	On-Off
Minimum Operating Temperature	-20°C
Panel Cutout Size	12.9 x 19.69 mm
Terminal type	Quick Connect
Standards/Approvals	BS, CE, CSA, RoHS, UL, VDE
Switch Operation	On-Off
Actuator Colour	Red
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	10A
Mechanical Life	100000Operations
Switch, Rocker, Lighted, Miniature, DPST, ON/OFF, RED, UNPRINTEDBrand	Cherry

Key Features

Double Pole Single Throw (DPST) contact configuration for switching two circuits simultaneously.
Illuminated switch actuator colored red for easy identification.
Constructed with durable Polyamide 66 housing material ensuring high mechanical strength.
Panel cutout size of 12.9 x 19.69 mm fits standard installations.
High contact current rating of 10A suitable for various electrical loads.
Quick connect terminal type enables fast and secure wiring.
IP66 rating provides excellent protection against dust and water ingress.
Rectangular actuator style with on-off operation and self-locking tabs for secure panel mounting.

Product Description

ZF LRA32H2BBRLN is an illuminated DPST (Double Pole Single Throw) On-Off rocker switch panel designed with robust Polyamide 66 housing for durability and high performance in electrical applications.

The switch incorporates a red illuminated rectangular actuator, providing visual status indication, suitable for panel mounting with precise cutout dimensions of 12.9 x 19.69 mm. Its quick connect terminals facilitate fast and secure wiring installation.

Rated for 10A contact current and capable of switching up to 28V DC, this switch supports demanding operational needs. The IP66 rating offers excellent protection against dust and water, making it suitable for harsh industrial and commercial environments.

Its wide operating temperature range from -20°C to 65°C ensures dependable function across varying conditions. The mechanical life rating of 100,000 operations signifies long-lasting reliability for continuous use in control panels, machinery, and automation equipment.

This Rocker Switch complies with multiple international standards, including BS, CE, CSA, RoHS, UL, and VDE, ensuring safety and quality. Double Pole Single Throw (DPST) contact configuration for simultaneous circuit control.

Red illuminated actuator facilitates operational status visibility. Durable Polyamide 66 housing for mechanical robustness. Standard panel cutout size of 12.9 x 19.69 mm for ease of mounting. Rated for 10A contact current suitable for moderate electrical loads.

Quick connect terminals promote fast installation. IP66 ingress protection for dust-tight and water-resistant performance. Rectangular actuator style with secure panel mounting tabs. Operating temperature range from -20°C to 65°C for stable operation.

Mechanical life of 100,000 operations guarantees long service life.

This switch is widely used in industrial, automation, electrical, manufacturing, and commercial applications requiring reliable electrical circuit control with visual illumination cues.

Discover more in the Electrical Switches category at EnvMart for high-quality components designed for precision and durability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a Double Pole Single Throw (DPST) contact configuration, allowing it to switch two circuits simultaneously.

The switch has a maximum contact current rating of 10A, making it suitable for various electrical loads.

It has an IP66 rating, providing excellent protection against dust and water ingress.

The operating temperature range for this model is from -20°C to 65°C, ensuring reliable performance across varying conditions.

The standard panel cutout size required for this switch is 12.9 x 19.69 mm.

It features quick connect terminals that facilitate fast and secure wiring installation.

The illuminated actuator of this switch is colored red, providing easy identification of its operational status.

This switch complies with multiple international standards, including BS, CE, CSA, RoHS, UL, and VDE, ensuring safety and quality.

The mechanical life rating of this model is 100,000 operations, indicating its long-lasting reliability for continuous use.

The switch is constructed with durable Polyamide 66 housing material, ensuring high mechanical strength.

This rocker switch is rated for a contact DC voltage of up to 28V.

This model is widely used in industrial, automation, electrical, manufacturing, and commercial applications requiring reliable electrical circuit control with visual illumination cues.
