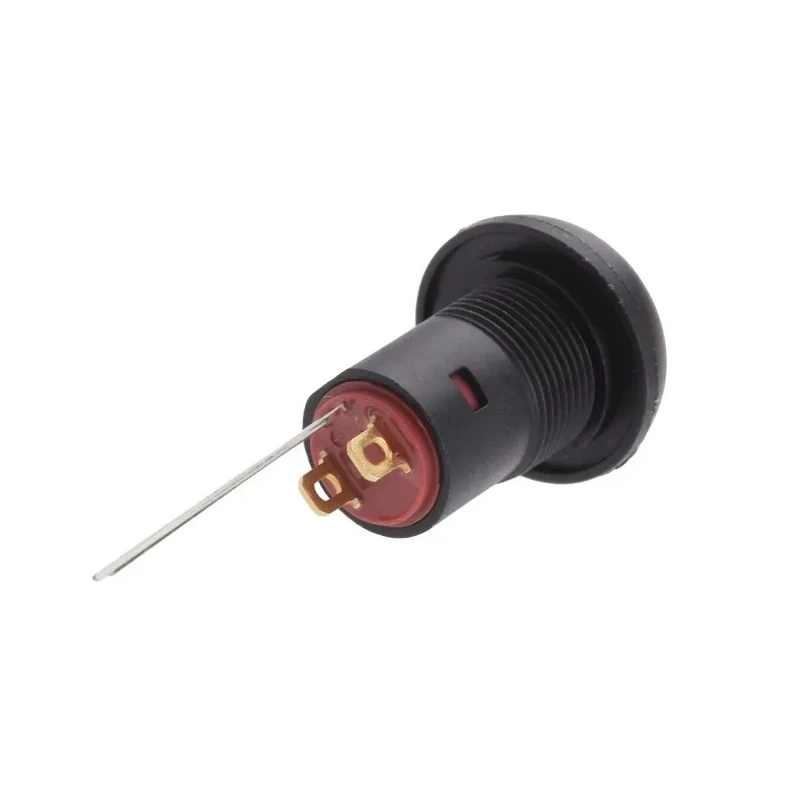

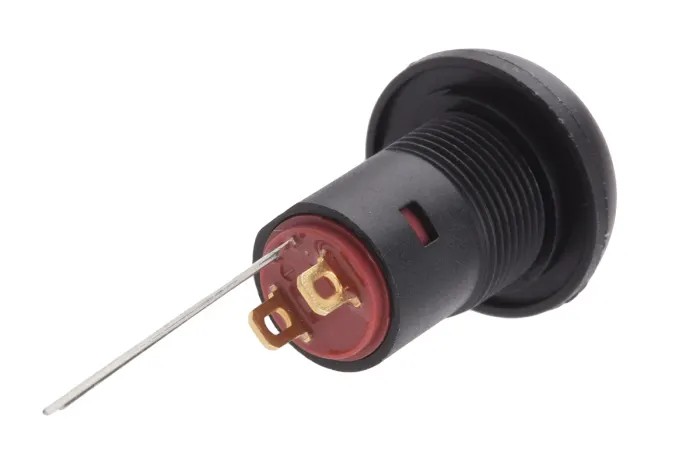

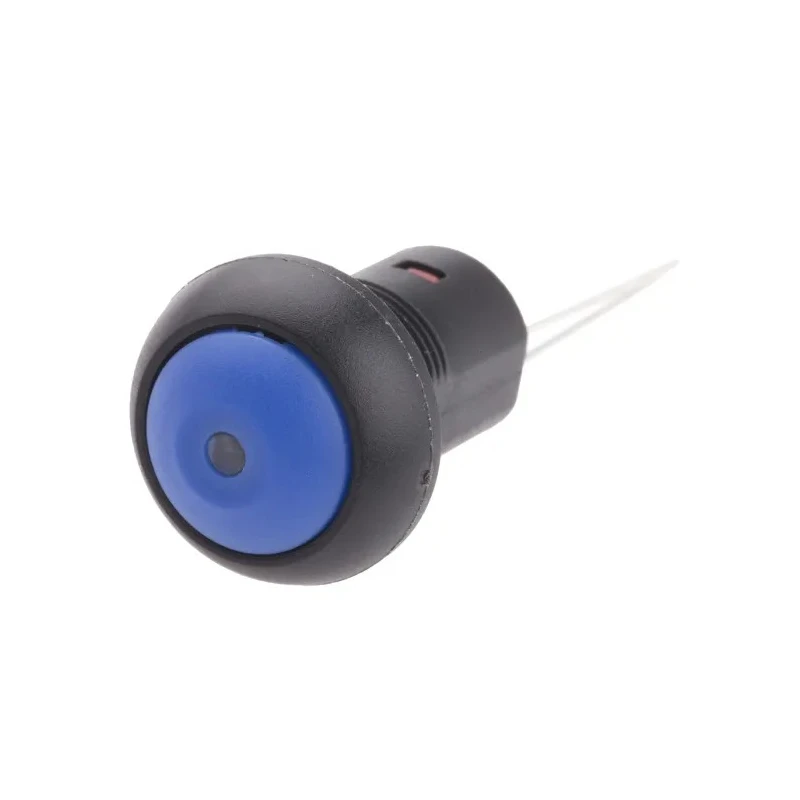

RS PRO Illuminated Miniature Push Button Switch, Latching, PCB Mount, 13.6 mm Cutout, SPST, White LED, IP67, 24 V 8207555P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 8207555P |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Blue |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 30V ac |
Key Features
- The switch operates with a latching mechanism for reliable circuit control.
- Illuminated white LED indicates power status clearly.
- Constructed for PCB mounting with a solder lug terminal type.
- Rated for 24 V DC and 30 V AC contact voltages with 100 mA current capacity.
- IP67 rated for protection against dust and water immersion.
- Black actuator with cap style and blue actuator colour for easy identification.
- Maximum operating temperature of 85°C ensuring durability in demanding environments.
- Gold-plated silver contacts provide reliable electrical conductivity.
Product Description
RS PRO 8207555P Illuminated Miniature Push Button Switch is a compact, latching SPST switch designed for mounting on printed circuit boards (PCB). It features a 13.6 mm panel cutout, white LED illumination, and is ideal for use in commercial electronics, manufacturing facilities, and automation control panels.
The white LED in the push button aids in clear visual identification when the circuit is powered. Its latching operation ensures that the switch stays in the ON or OFF position until actuated again, supporting reliable control functions such as reset buttons or control panel switches.
Designed with a robust IP67 rating, this switch is protected against dust ingress and can endure temporary immersion in water up to 1 meter for 15 minutes, making it suitable for harsh industrial environments. The switch supports contact voltages of 24V DC and 30V AC with a maximum contact current of 100 mA, suitable for low power control circuits.

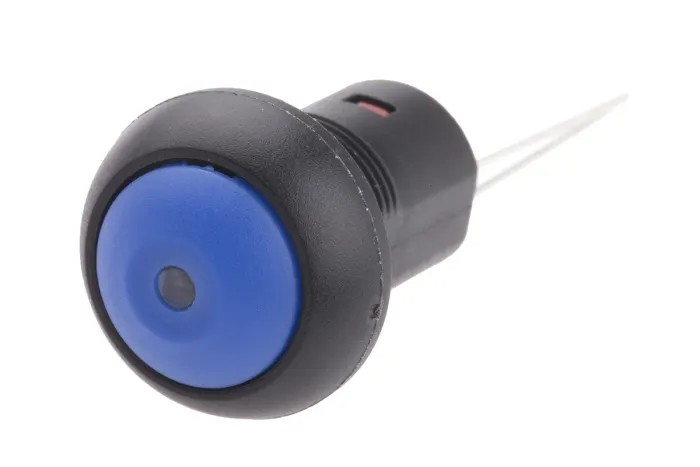

The actuator has a dome-shaped black cap with a blue colour actuator, providing tactile feedback and easy differentiation. Gold-plated silver contacts ensure excellent electrical conduction and resistance to corrosion. The solder lug terminal type facilitates secure PCB connections. It operates reliably up to 85°C, making it suitable for a variety of electrical and electronic industrial applications.
The switch utilizes a Single Pole Single Throw (SPST) contact configuration. Application in circuit control, reset buttons, and control panels in machinery and electronics. Ideal for use in industrial, manufacturing, laboratory, and automation environments.
Protected to IP67 standards for dust and water resistance. Compact and easy to integrate PCB mounting type. Features white LED illumination for power status indication. Explore a wide range of RS PRO products and other push button switches suitable for various electronic and electrical applications on EnvMart.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, allowing it to control a single circuit.
It operates reliably at a maximum temperature of 85°C, making it suitable for various industrial applications.
This model is designed for PCB mounting, facilitating easy integration into printed circuit boards.
The switch requires a panel cutout size of 13.6 mm for proper installation.
It has an IP67 rating, providing protection against dust ingress and temporary immersion in water up to 1 meter for 15 minutes.
This model is rated for contact voltages of 24V DC and 30V AC, suitable for low power control circuits.
The switch has a maximum contact current capacity of 100 mA, allowing it to control low power applications.
It features solder lug terminals, which provide secure connections for PCB mounting.
The switch is equipped with a white LED for clear visual indication of power status.
The actuator has a cap style, with a dome-shaped black cap and a blue color actuator for easy identification.
It is ideal for use in circuit control, reset buttons, and control panels in machinery and electronics, particularly in industrial and automation environments.
The switch features gold-plated silver contacts, which ensure reliable electrical conductivity and resistance to corrosion.
