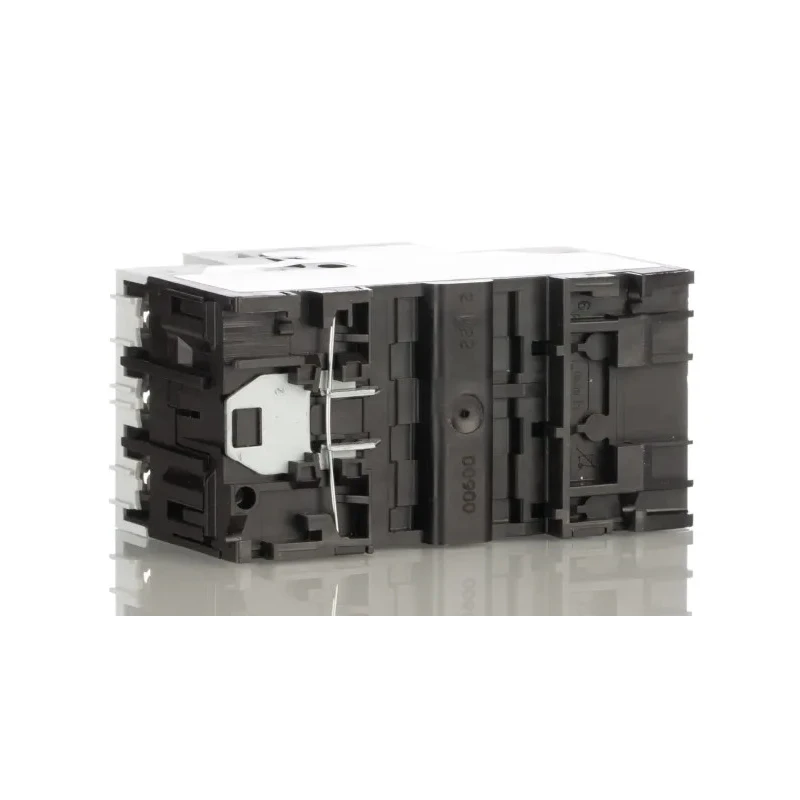

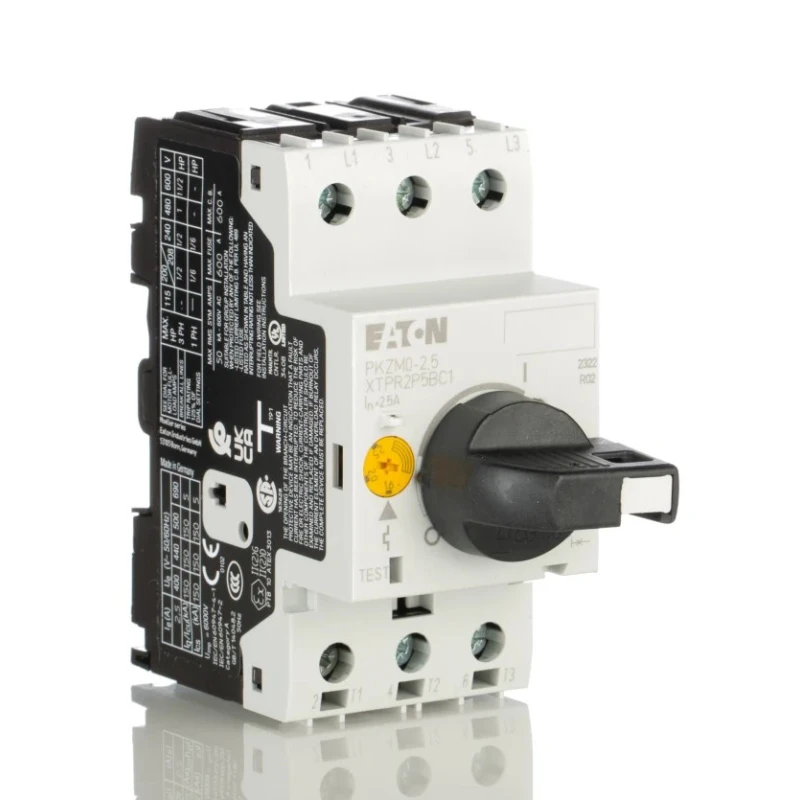

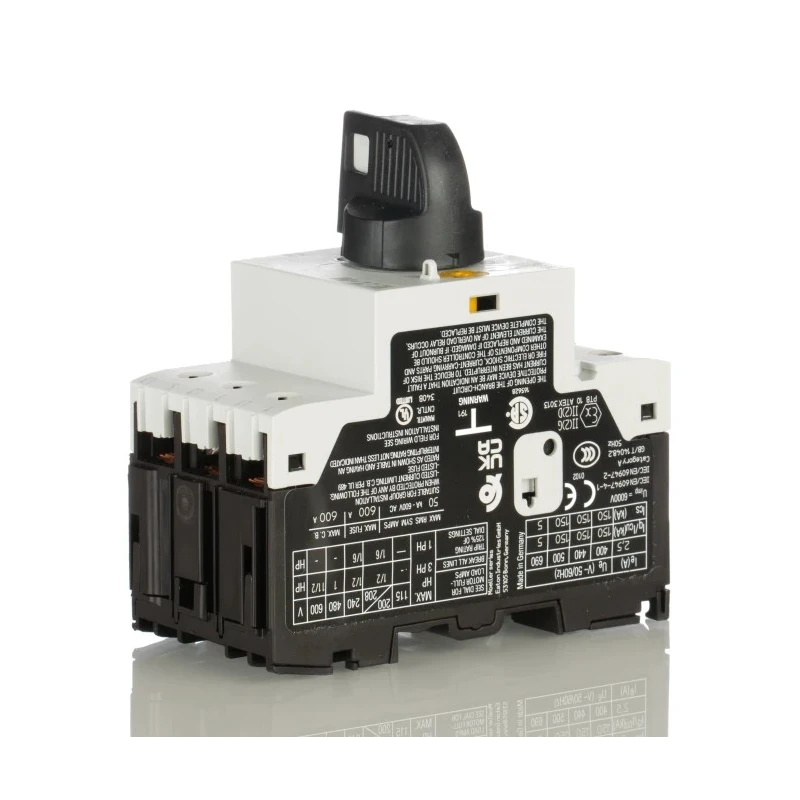

Eaton Motor Protection Circuit Breaker 1.6A to 2.5A Current Rating, 690V AC, IP00/IP20, 3 Poles, -25 to 265337 PKZM0-2,5/AK

Name: Eaton Motor Protection Circuit Breaker 1.6A to 2.5A Current Rating, 690V AC, IP00/IP20, 3 Poles, -25 to 265337 PKZM0-2,5/AK
Brand: Eaton
SKU: 382903
Price: 211.03 USD
Availability: InStock



Category Motor Protection Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Model	265337 PKZM0-2,5/AK
IP Rating	IP00, IP20
Overall Length	45mm
Current Rating	1.6, 2.5A
Series	PKZM 0
Overall Width	93mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Sensing type	Current
Supply Voltage	690V ac
Number of Poles	3
Standards/Approvals	CE, CSA, IEC/EN 60947, UL, VDE 0660
Overall Depth	94mm
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker
Eaton 2.5 A PKZM0 Motor Protection Circuit Breaker, 690 VBrand	Eaton

Key Features

Designed for motor protection with a thermomagnetic trip for reliable overcurrent detection.
Equipped with 3 poles that individually monitor each phase to prevent phase failure damage.
Compact dimensions of 45mm length, 93mm width, and 94mm depth for efficient DIN rail mounting.
IP00 and IP20 ratings ensure touch protection and dust resistance suitable for industrial environments.
Operates safely within a temperature range of -25 °C to 55 °C.
Complies with CE, CSA, IEC/EN 60947, UL, and VDE 0660 standards for quality and safety.
Rotary dial actuator includes a lockable thumb grip to prevent accidental reactivation.

Product Description

Eaton 265337 PKZM0-2,5/AK Motor Protection Circuit Breaker is engineered for safeguarding electric motors in industrial, manufacturing, and automation applications operating on 3-phase power systems. With a current rating range from 1.6A to 2.5A and a supply voltage of 690V AC, this circuit breaker utilizes a thermomagnetic trip mechanism that activates on excessive current induced heat, providing precise and reliable protection against overcurrent conditions.

The device features 3 poles to individually monitor each phase, ensuring robust defense against phase failure and resulting motor damage. Its compact dimensions (45mm length x 93mm width x 94mm depth) enable seamless installation on DIN rails, making efficient use of panel space.

Designed with IP00 and IP20 ratings, this circuit breaker is resistant to accidental touch and dust ingress, enhancing operational safety in harsh environments. It supports a wide operating temperature range from -25 °C to 55 °C, making it suitable for various industrial climates.

The unit conforms to a suite of international standards including CE, CSA, IEC/EN 60947, UL, and VDE 0660, underscoring its compliance with stringent safety and performance benchmarks.

The rotary dial actuator facilitates easy adjustments and includes a lockable thumb grip that prevents accidental reactivation, thereby enhancing control and safety during maintenance and operation.

Thermomagnetic trip provides effective overcurrent protection. Individual phase monitoring with 3 poles ensures motor safety. Compact size for easy DIN rail mounting. IP00 and IP20 ratings for touch and dust protection. Wide operating temperature range from -25 °C to 55 °C.

Compliance with CE, CSA, IEC/EN 60947, UL, and VDE 0660 standards. Lockable rotary dial actuator prevents accidental restarts.

This motor protection circuit breaker is ideal for use in industrial, manufacturing, automation, and electrical motor applications requiring dependable protection against overcurrent and phase failures. For additional related products and options, explore our Motor Protection Circuit Breaker category at EnvMart.
