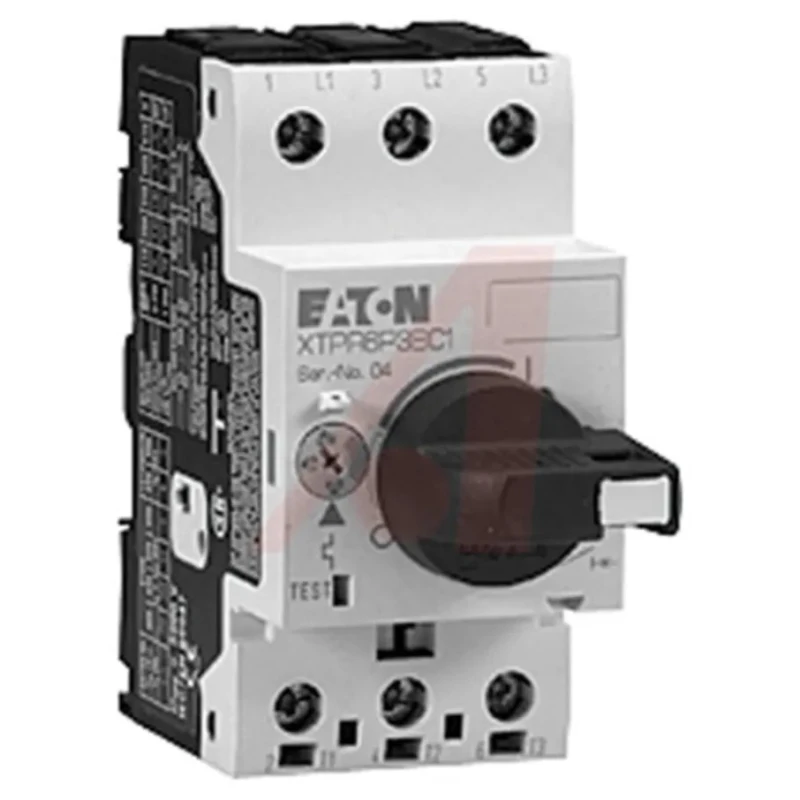

Eaton Motor Protection Circuit Breaker PKZM 0 Series 4A & 6.3A Current Rating, 3 Poles, 690V AC, IP20 265339 PKZM0-6,3/AK

Name: Eaton Motor Protection Circuit Breaker PKZM 0 Series 4A & 6.3A Current Rating, 3 Poles, 690V AC, IP20 265339 PKZM0-6,3/AK
Brand: Eaton
SKU: 382893
Price: 170.9 USD
Availability: InStock



Category Motor Protection Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Model	265339 PKZM0-6,3/AK
IP Rating	IP00, IP20
Overall Length	45mm
Current Rating	4, 6.3A
Series	PKZM 0
Overall Width	93mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Sensing type	Current
Supply Voltage	690V ac
Number of Poles	3
Standards/Approvals	UL, CE, CSA, IEC/EN 60947, VDE 0660
Overall Depth	94mm
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker
Eaton 6.3 A PKZM0 Motor Protection Circuit Breaker, 690 VBrand	Eaton

Key Features

Designed for supply voltage up to 690V AC ensuring wide compatibility.
Features a robust 3-pole construction suitable for three-phase motors.
Incorporates a class 10 trip category for overload protection at 6 times rated current.
Compact design with dimensions 94mm depth, 93mm width, and 45mm length to save installation space.
Equipped with a rotary handle and lockout provision for safe operation and maintenance.
Durable thermoplastic housing provides electrical insulation and impact resistance.
Operational temperature range from -25°C to 55°C for harsh industrial environments.
IP20 rating making it touch-proof and resistant to tools and wires larger than 12mm.

Product Description

Eaton 265339 PKZM0-6,3/AK motor protection circuit breaker from the PKZM 0 series provides dependable protection for industrial motor systems operating up to 690V AC. Rated for current protection at 4A and 6.3A, this 3-pole device safeguards motors by detecting and interrupting overloads and short circuits.

The breaker features a class 10 trip characteristic, which ensures tripping occurs within 10 seconds or more at six times the thermal current rating. This characteristic is ideal for motors with low inrush currents, such as those driving conveyors and material handling equipment in manufacturing and industrial environments.

Compact dimensions of 94mm depth, 93mm width, and 45mm length facilitate installation in space-constrained control panels. The circuit breaker includes a rotary handle with lockout provisions to allow safe isolation during maintenance procedures. Its thermoplastic housing offers robust impact resistance and high electrical insulation quality.

Operating temperature range from -25°C to 55°C makes this device suitable for diverse industrial climates. The IP20 enclosure rating guarantees protection against accidental contact with live parts and intrusion of objects larger than 12mm.

Designed and manufactured under rigorous standards, this breaker is UL, CE, CSA, IEC/EN 60947, and VDE 0660 approved. It can withstand up to 100,000 mechanical operating cycles, emphasizing its durability and long-term reliability.

Class 10 adjustable bi-metallic overload relay for consistent motor protection. Fixed magnetic short circuit trip to protect against electrical faults. Rotary ON/OFF manual disconnect for operational control. Compact and lightweight design minimizes panel space and installation weight.

Lockable handle for maintenance and safety compliance.

This Eaton PKZM 0 Motor Protection Circuit Breaker is essential for industries utilizing electric motors in automation and control gear applications, such as manufacturing plants, processing facilities, and HVAC systems.
