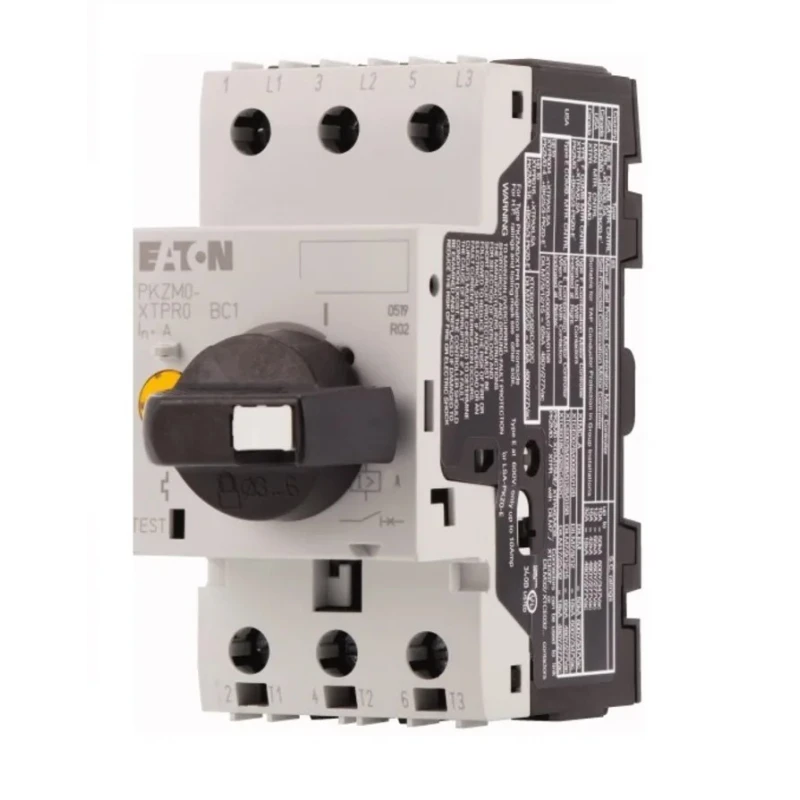

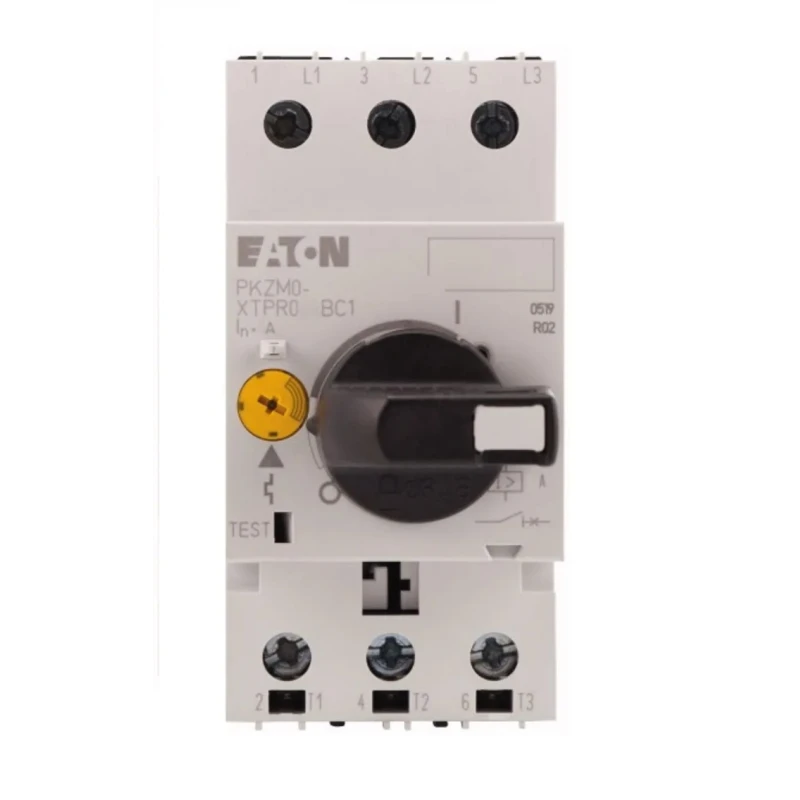

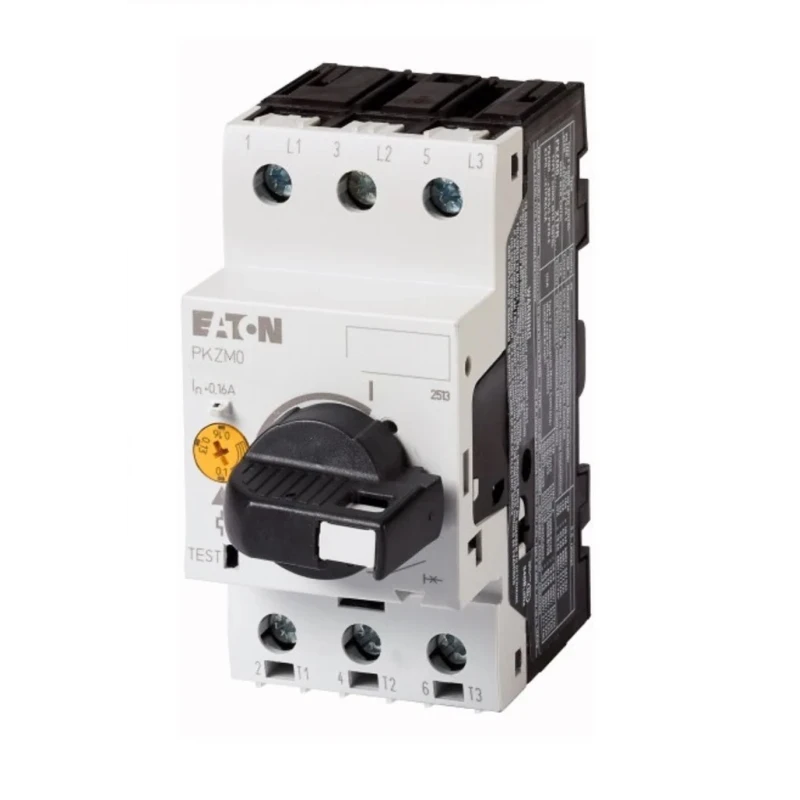

Eaton Motor Protection Circuit Breaker, 10-16 A Current Rating, 690 V AC, 3 Poles, IP00/IP20, -25 to 55°C 265342 PKZM0-16/AK

Name: Eaton Motor Protection Circuit Breaker, 10-16 A Current Rating, 690 V AC, 3 Poles, IP00/IP20, -25 to 55°C 265342 PKZM0-16/AK
Brand: Eaton
SKU: 382898
Price: 59.11 USD
Availability: InStock



Category Motor Protection Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Model	265342 PKZM0-16/AK
IP Rating	IP00, IP20
Overall Length	45mm
Current Rating	10, 16A
Series	PKZM 0
Overall Width	93mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Sensing type	Current Transformer
Supply Voltage	690V ac
Number of Poles	3
Overall Depth	94mm
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker

Key Features

The circuit breaker operates within a temperature range of -25 °C to 55 °C.
Features a thermomagnetic tripping design for rapid response to dangerous currents.
Includes a lockable rotary dial actuator to prevent accidental resets.
Screw terminals ensure secure and stable electrical connections.
Detects phase failure to prevent motor overheating and damage.
Complies with standards VDE 0660 Part 102, RoHS, and IEC/EN 60947-4-1.
Compact design with dimensions 45mm length, 93mm width, and 94mm depth.
Equipped with 3 poles and IP00/IP20 ingress protection rating.

Product Description

Eaton 265342 PKZM0-16/AK Motor Protection Circuit Breaker offers reliable motor safeguarding with a current range from 10 to 16 amps and a 690 V AC supply voltage. Designed to protect motors against short circuits and phase failures, it provides robust operation in demanding industrial and HVAC applications.

This motor protection circuit breaker integrates a thermomagnetic tripping mechanism that instantly disconnects harmful currents, preventing electrical faults and motor failures. Its lockable rotary dial actuator enhances safety by avoiding unintended resets, ensuring uninterrupted system security.

The device features screw terminals to maintain stable connections under vibration and movement. Its IP00 and IP20 ratings provide basic protection against solids, suitable for indoor industrial environments. The compact structure with dimensions 45 mm in length, 93 mm width, and 94 mm depth supports easy installation in equipment panels.

Operating within a temperature range of -25 °C to 55 °C, this circuit breaker conforms to recognized international standards including VDE 0660 Part 102, RoHS, and IEC/EN 60947-4-1, ensuring compliance with safety and environmental demands.

The circuit breaker handles currents between 10 A and 16 A. Thermomagnetic trip mechanism offers rapid protection against overcurrents. Lockable rotary dial prevents accidental reactivation. Screw terminal design ensures strong electrical connections.

Phase failure detection protects motors from overheating. Three-pole configuration provides balanced protection for three-phase motors. Compact dimensions enable versatile installation. IP00/IP20 rating suitable for protected indoor environments.

Complies with VDE 0660 Part 102, RoHS, IEC/EN 60947-4-1 standards.

This model is particularly suitable for motor protection in industrial, manufacturing, HVAC, and electrical automation systems. Eaton's high-quality engineering ensures reliable operation and long service life under challenging conditions.
