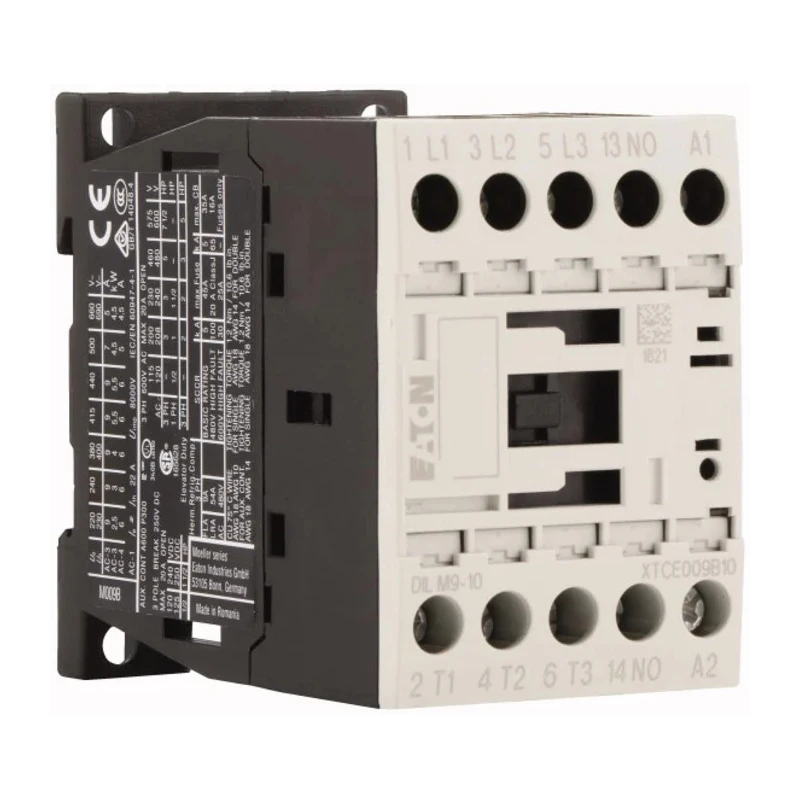

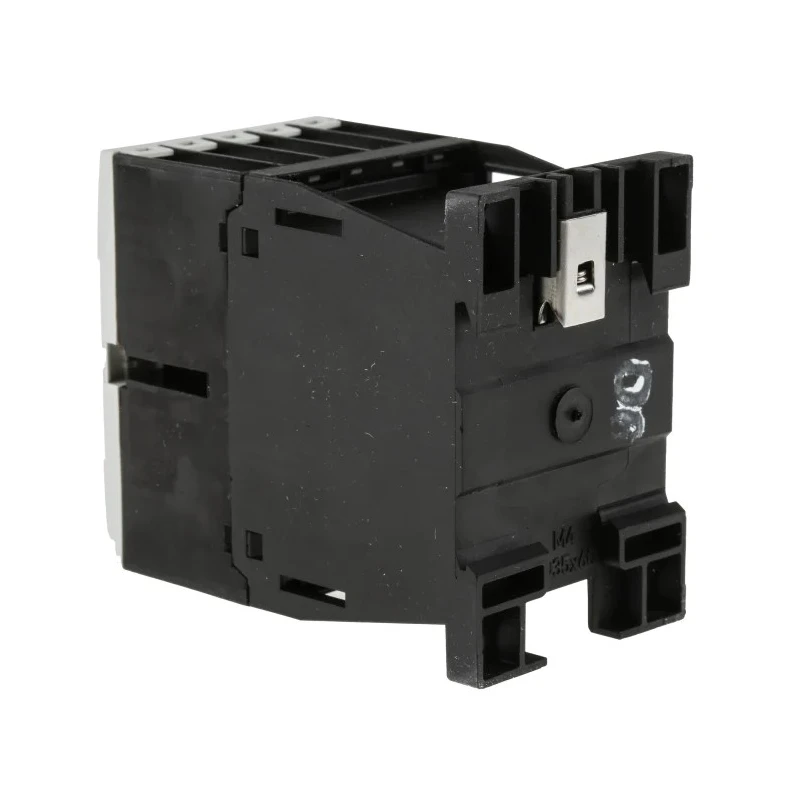

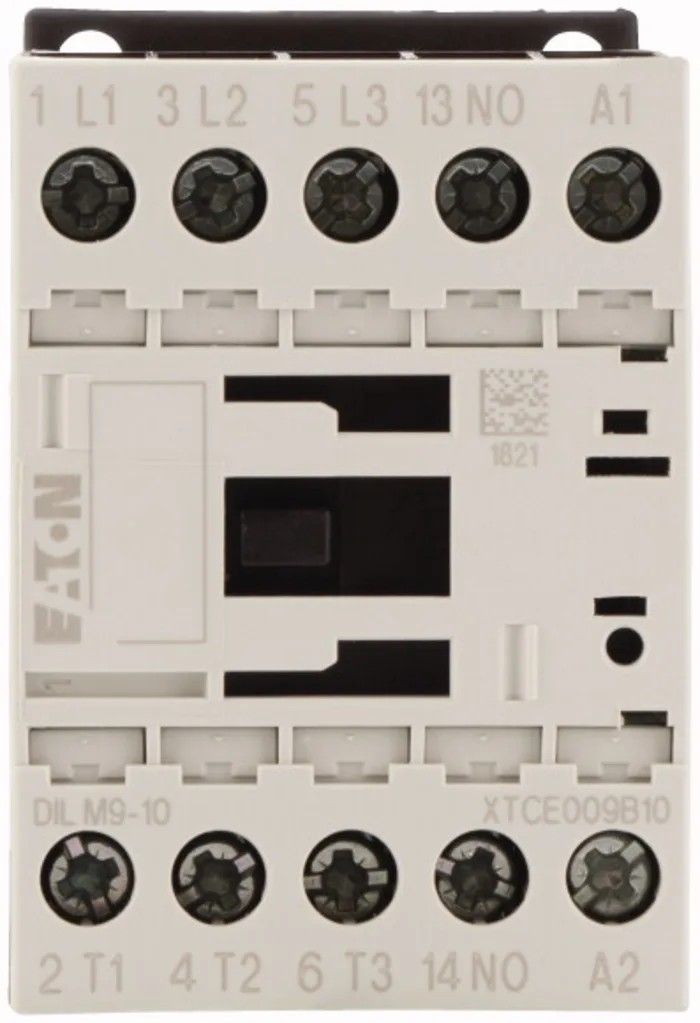

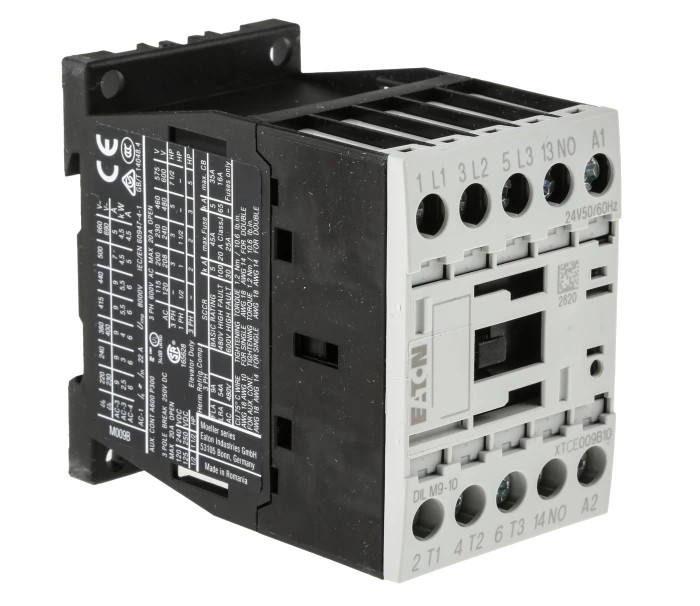

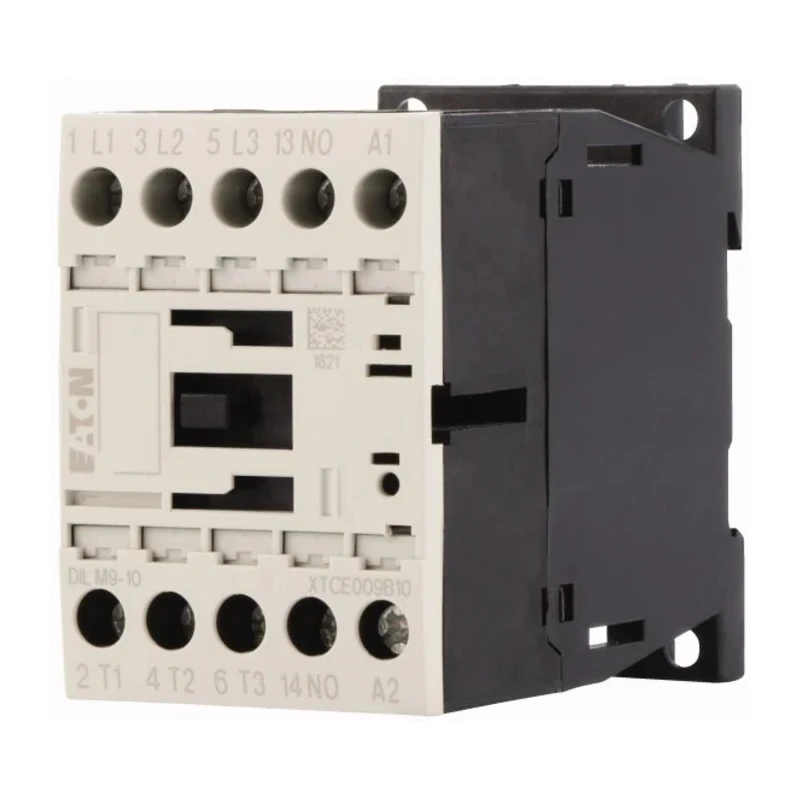

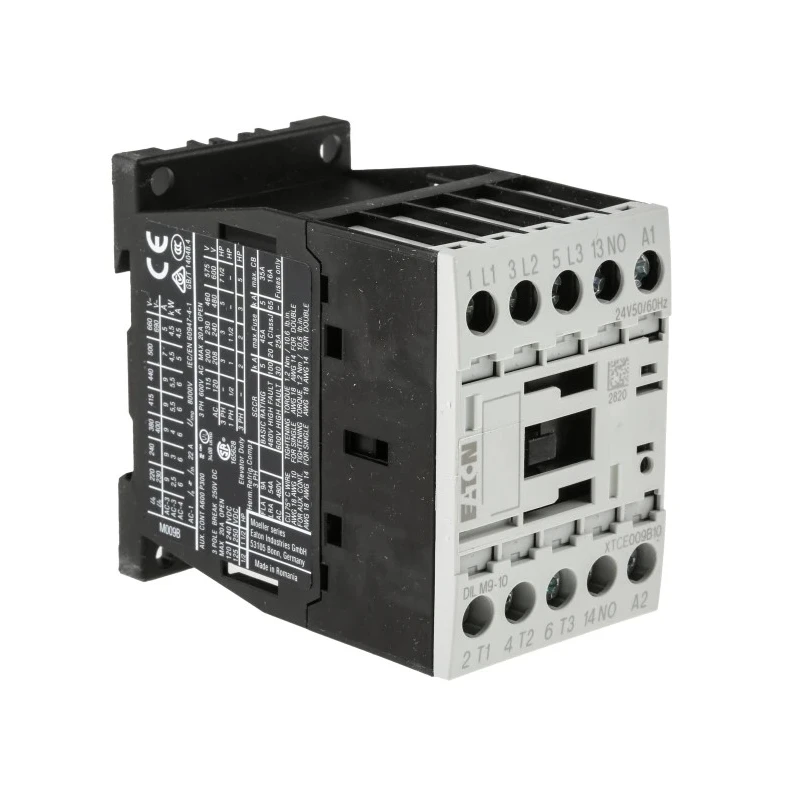

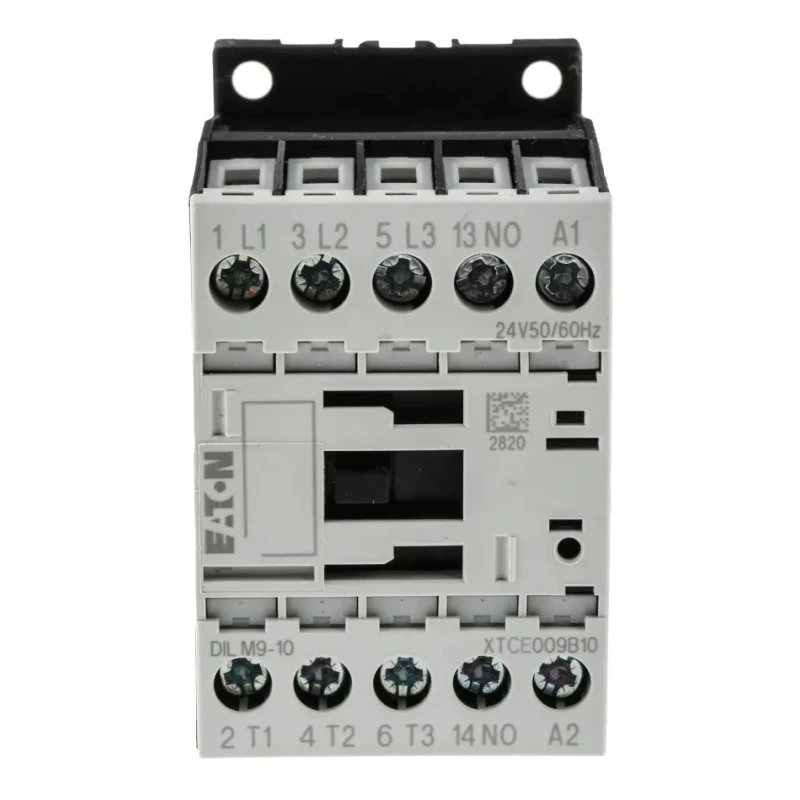

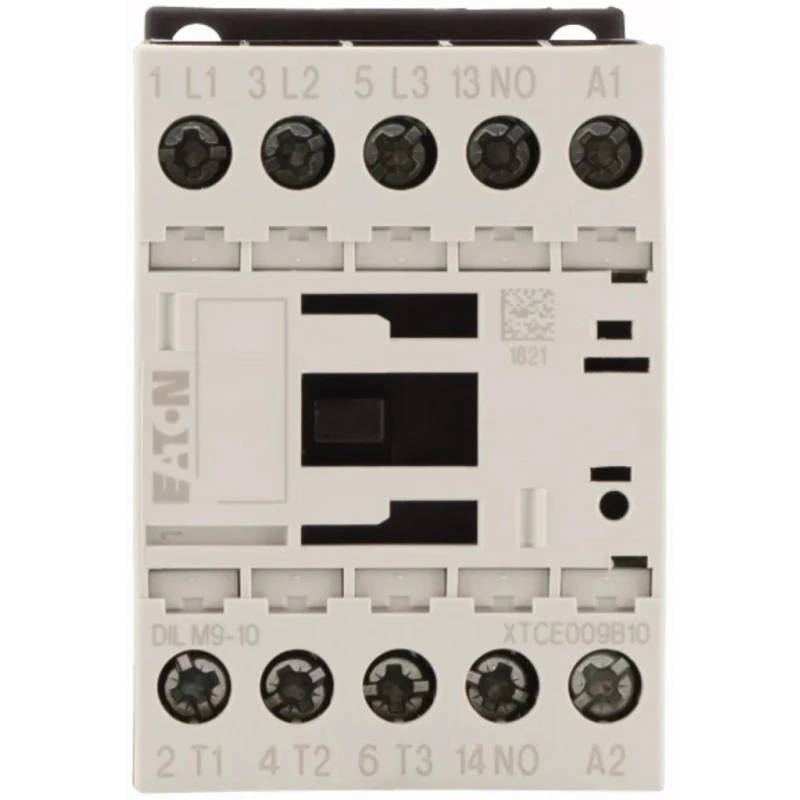

Eaton DILM Contactor, 24V AC Coil, 3-Pole, 9 A Current, 4 kW Power, 3 NO Contacts, 400V AC 276694 DILM9-10(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 68mm |
| Model | 276694 DILM9-10(24V50/60HZ) |
| Depth | 75mm |
| Width | 45mm |
| Mount Type | Table |
| Series | DILM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947, UL, VDE 0660, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/0 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Eaton DILEM Contactor, 400 V ac Coil, 3-Pole, 9 A, 4 kW, 1NOBrand | Eaton |
Key Features
- Features a 3 normally open (3 NO) contact configuration for reliable switching.
- Operates with a coil voltage of 24V AC and contact voltage rating of 400V AC.
- Rated for contact current of 9A and power rating up to 4 kW.
- Equipped with screw clamp terminals ensuring secure electrical connections.
- Compact dimensions of 68mm length, 45mm width, and 75mm depth for space-saving installation.
- Wide operating temperature range from -25°C to +50°C suited for demanding environments.
- Compliant with IEC/EN 60947, UL, VDE 0660, and CSA standards for safety and quality assurance.
- Supports auxiliary modules such as Eaton's 4-contact unit for enhanced functionality.
Product Description
Eaton 276694 DILM9-10(24V50/60HZ) contactor is a robust 3-pole electrical device designed for controlling motors and resistive loads with high efficiency and reliability. It features a 24V AC coil and a 3 normally open (3 NO) contact configuration, making it ideal for applications such as motor control, lighting circuits, and HVAC equipment in industrial, commercial, and automation systems.
This contactor supports a contact current of 9A and power capacity of up to 4 kW at 400V AC, providing ample performance for medium-power switching needs. Compactly sized at 68 mm in length, 45 mm in width, and 75 mm in depth, it fits well within control panels where space is at a premium.
The device uses secure screw clamp terminals to maintain solid connections even in environments subject to vibration. Its wide temperature operating range from -25°C to +50°C ensures dependable operation across harsh industrial conditions. Compliance with IEC/EN 60947, UL, VDE 0660, and CSA standards guarantees high levels of safety and operational quality.
Designed to integrate easily with PLC systems, this contactor facilitates straightforward automation and system control. Auxiliary modules, such as Eaton's 4-contact auxiliary unit, can be mounted on the front to extend functionality.
3-Pole contactor offers 3 normally open contacts for load switching. 24V AC coil voltage suited for various control applications. 9A contact current rating for reliable operation. 4 kW power rating for medium load capacities.
Screw clamp terminals ensure secure wiring and vibration resistance. Compact dimensions of 68 x 45 x 75 mm optimize panel space usage. Wide operating temperature range (-25°C to +50°C) for versatile use. Meets international standards IEC/EN 60947, UL, VDE 0660, and CSA.
This Eaton contactor is widely used in industrial, laboratory, manufacturing, construction, HVAC, and electrical automation contexts. Its durable design and efficient switching capabilities support applications requiring frequent mechanical operations.
EnvMart customers can explore more Eaton Contactors and related automation control gear to find suitable products for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 3 normally open (3 NO) contact configuration, suitable for reliable switching in various applications.
It operates with a coil voltage of 24V AC, making it compatible with a variety of control applications.
The contactor has a power rating of up to 4 kW at 400V AC, suitable for medium-power switching needs.
It is rated for a contact current of 9A, ensuring reliable operation for various loads.
This unit has compact dimensions of 68mm in length, 45mm in width, and 75mm in depth, optimizing space in control panels.
It operates effectively in a wide temperature range from -25°C to +50°C, suitable for demanding environments.
It complies with IEC/EN 60947, UL, VDE 0660, and CSA standards, ensuring high levels of safety and quality assurance.
It is equipped with screw clamp terminals, which ensure secure electrical connections even in vibration-prone environments.
Yes, it supports auxiliary modules, such as Eaton's 4-contact unit, for enhanced functionality.
This contactor is designed for motor control and resistive load applications, commonly used in industrial and commercial settings.
It is designed for table mounting, facilitating easy installation in various setups.
The model number is 276694 DILM9-10(24V50/60HZ), which specifies its configuration and specifications.
