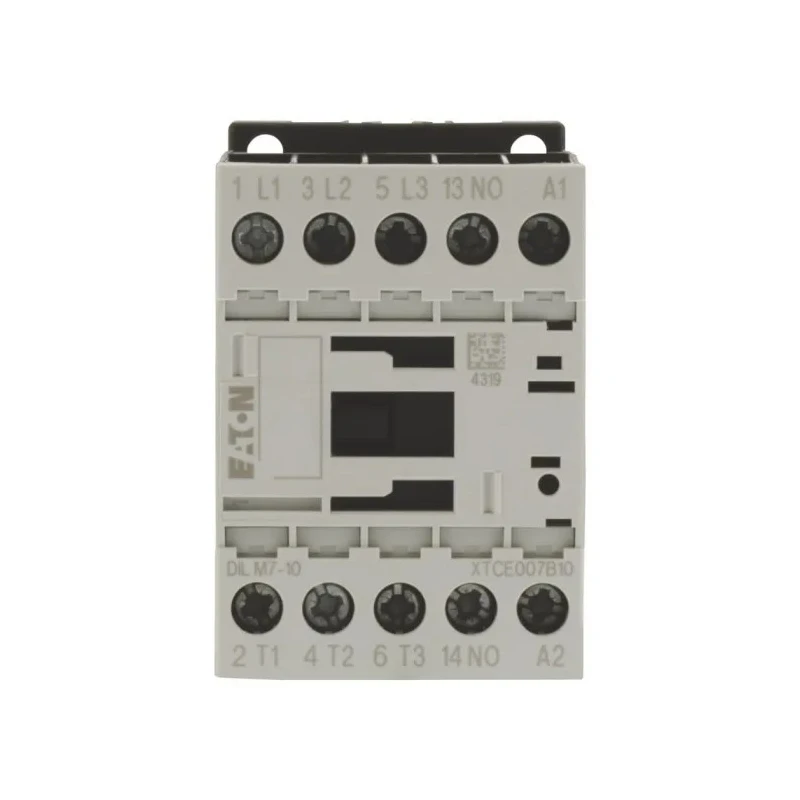

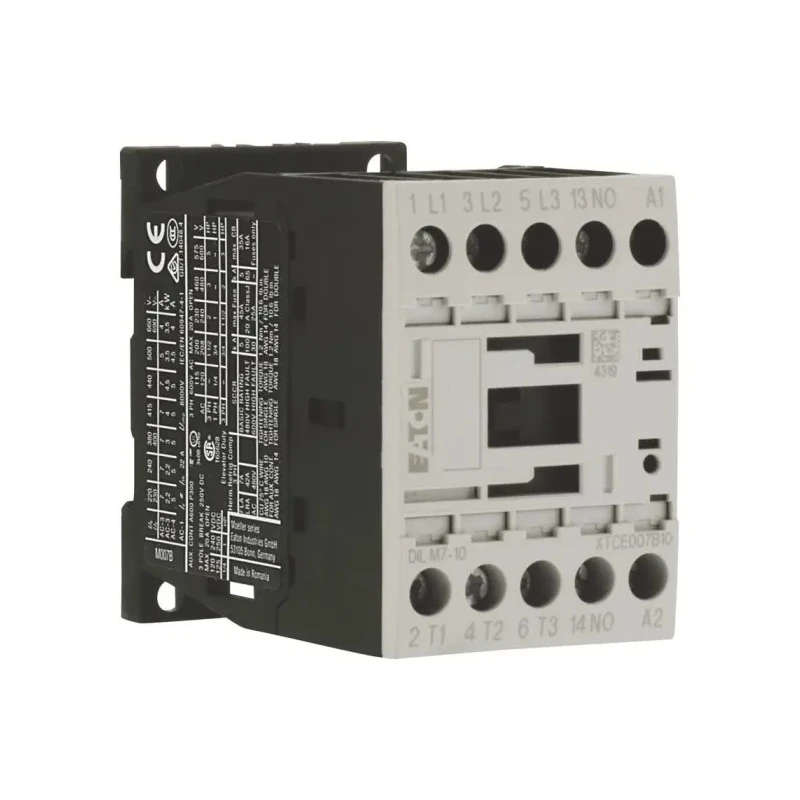

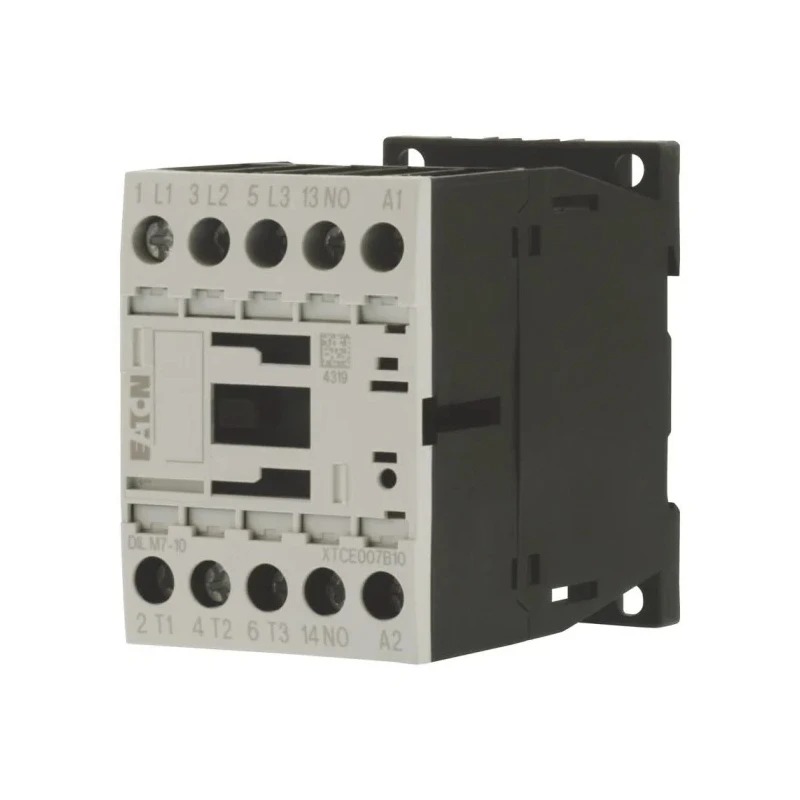

Eaton Contactor, 3-Pole, 24V AC Coil Voltage, 7 A Current, 3 kW Power Rating, 400V AC Contact 276554 DILM7-10(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 75mm |
| Model | 276554 DILM7-10(24V50/60HZ) |
| Depth | 75mm |
| Width | 45mm |
| Mount Type | Table |
| Series | DILM |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, CSA, IEC/EN 60947, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 1 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/0 NC |
| Operational Current Ie | 7A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- The contactor supports a contact current rating of 7 amperes and power rating of 3 kilowatts.
- It features a 400V AC contact voltage suitable for various industrial applications.
- Equipped with screw clamp terminals for secure and reliable connections.
- Designed to operate within a temperature range from -25°C to +60°C for versatile environmental conditions.
- Compact dimensions including 75mm length, 45mm width, and 75mm depth ensure space-efficient installation.
- Includes one auxiliary contact with configuration 1 NO/0 NC for added functionality.
- Complies with standards VDE 0660, CSA, IEC/EN 60947, and UL ensuring quality and safety.
- Ideal for factory automation, HVAC systems, lighting control, and motor management in commercial and industrial environments.
Product Description
Eaton 276554 DILM7-10(24V50/60HZ) Contactor is a reliable 3-pole electrical control device featuring a 24V AC coil voltage, designed for motor control and resistive load applications. Rated for 7 A contact current and 3 kW power, it operates efficiently at contact voltages up to 400V AC, making it suitable for demanding industrial environments.
This contactor includes screw clamp type terminals to ensure secure and dependable connections, supporting stable operation in automation and control systems. It is engineered to function reliably across a wide temperature range from -25°C to +60°C, allowing installation in diverse settings.
Measuring 75mm in length, 45mm in width, and 75mm in depth, the compact design facilitates easy installation even where space is limited. The device is equipped with one auxiliary contact configured as 1 NO/0 NC, adding versatility for control circuit requirements.
Built to comply with recognized safety and performance standards including VDE 0660, CSA, IEC/EN 60947, and UL, this Eaton contactor ensures robustness and compliance for professional use.
The contactor supports a contact current rating of 7 amperes and power rating of 3 kilowatts. Includes one auxiliary contact with configuration 1 NO/0 NC for extended functionality. Operational temperature range from -25°C to +60°C accommodates challenging environments.
Screw clamp terminals provide durable and secure electrical connections. Compact dimensions optimize space utilization in control panels and machines. Compliant with multiple international standards for quality assurance.
Suitable for industrial automation, HVAC system control, lighting, and motor management applications.
In industrial, electrical, and automation sectors, the Eaton 276554 DILM7-10(24V50/60HZ) Contactor is an essential component for effectively managing control circuits and electrical loads. Its low-power 24V AC coil helps reduce energy consumption while maintaining operational reliability.
Explore comprehensive automation and control solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 3 kilowatts.
It supports a contact current rating of 7 amperes.
The coil voltage for this unit is 24V AC.
It can handle a maximum contact voltage of 400V AC.
The contactor measures 75mm in length, 45mm in width, and 75mm in depth.
It features screw clamp terminals for secure connections.
The operational temperature range is from -25°C to +60°C.
This contactor includes one auxiliary contact configured as 1 NO/0 NC.
It complies with VDE 0660, CSA, IEC/EN 60947, and UL standards.
It is suitable for motor control and resistive load applications in industrial settings.
The mounting type for this model is table mount.
This contactor belongs to the DILM series.
