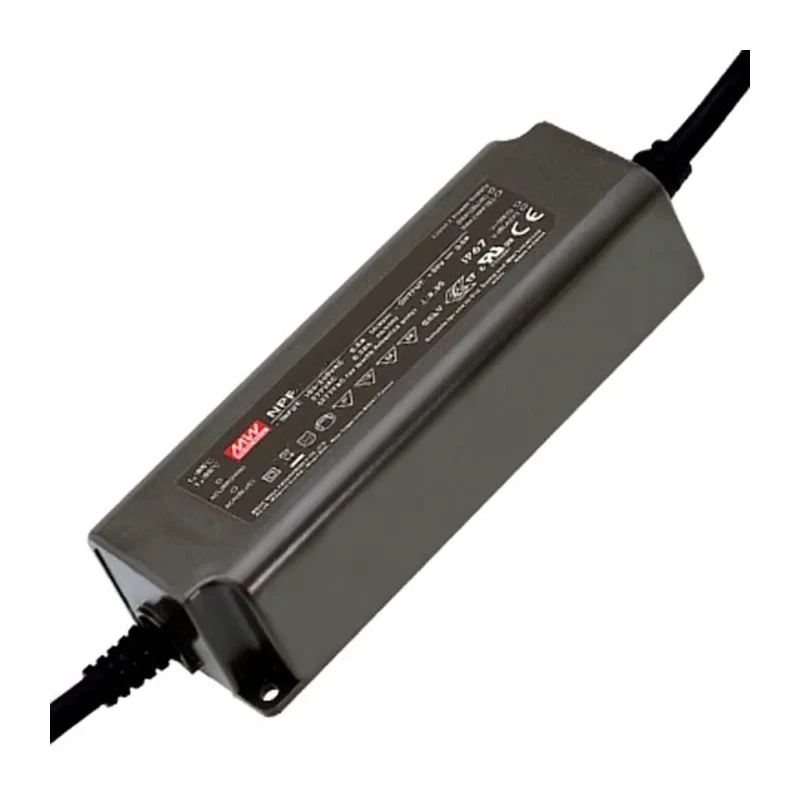

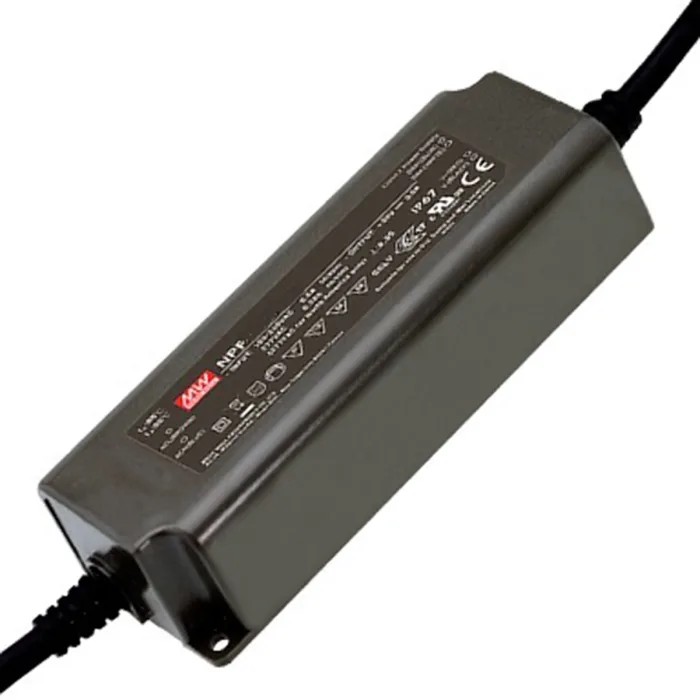

MEAN WELL 90W 30V 3A IP67 Rated 5 Output Constant Voltage LED Driver
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | NPF-90 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 90W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 30V |
| Power Dissipation | 90W |
| Standards/Approvals | SELV, UL, CAN/CSA, CB, CE, EAC, ENEC |
| Primary Type | AC-DC |
| Driver Current | 3A |
Key Features
- Universal AC input voltage range from 90V to 305V ensures wide compatibility.
- High efficiency up to 95% reduces energy loss during operation.
- Waterproof, fully encapsulated design provides IP67 ingress protection for harsh environments.
- Built-in protections include short circuit, over current, over voltage, and over temperature safeguards.
- Cooling is achieved through free air convection without requiring fans.
- Operating temperature range from -40°C to +70°C enables use in extreme conditions.
- Class II design with double insulation and weather-resistant cable ensures safety and flexible installation.
- Low no-load power consumption below 0.15W enhances energy savings during standby.
Product Description
MEAN WELL NPF-90-30 is a high-performance 90W constant voltage LED driver supplying 30V output at 3A with five outputs, featuring an IP67 rated waterproof and dustproof enclosure, making it suitable for demanding industrial, commercial, and outdoor LED lighting applications.
Designed with a universal AC input voltage range from 90V to 305V, the driver integrates active power factor correction (PFC) to ensure efficient power usage and low harmonic distortion. The enclosure is made of flame-retardant plastic with a silicone potting inside to resist vibrations up to 5G while enhancing thermal dissipation.
Its multiple builtin protections against short circuit, over current, over voltage, and over temperature improve system reliability and safety. Cooling via natural convection eliminates the need for auxiliary fans, reducing maintenance and noise.
The IP67 rating and fully encapsulated construction enable the driver to operate efficiently in wet, dusty, or humid environments, including outdoor industrial settings, water treatment facilities, and automotive lighting systems.
This class II power supply includes double insulation and a weather-resistant cable, allowing flexible installation without ground connection requirements. The device complies with international standards such as UL8750, CSA, ENEC, CB, CE, and EAC, ensuring global regulatory acceptance.
Universal AC input 90 to 305Vac with active PFC function. High efficiency up to 95% with low no load power consumption below 0.15W. Fully encapsulated plastic case rated IP67, resistant to water and dust. Robust anti-vibration design with silicone potting.
Multiple protections: short circuit, over current, over voltage, and over temperature. Operating temperature range: -40°C to +70°C. Class II double insulated weather-resistant cable for safe, flexible installation. Five constant voltage outputs at 30V, 3A providing reliable LED driving.
MEAN WELL LED drivers like the NPF-90-30 are widely used in industrial lighting, architectural and outdoor illumination, horticulture lighting, and other LED-based systems requiring dependable constant voltage power supplies with robust environmental resistance.
Explore the range of LED Drivers at EnvMart for compatible industrial components and enhanced lighting efficiency.
Explore more products in our Electronic Components, Power & Connectors category.
