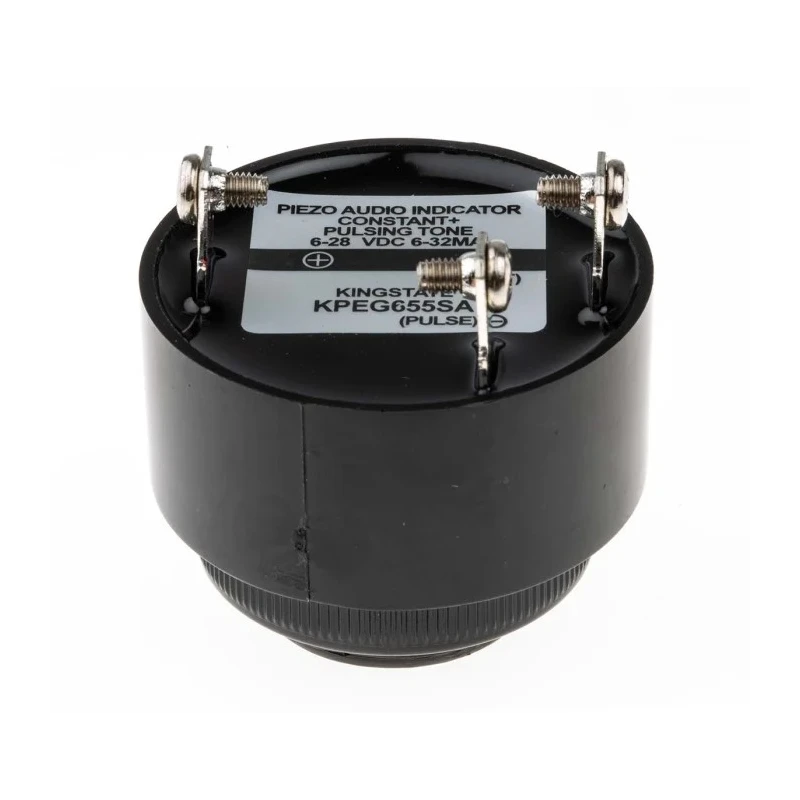

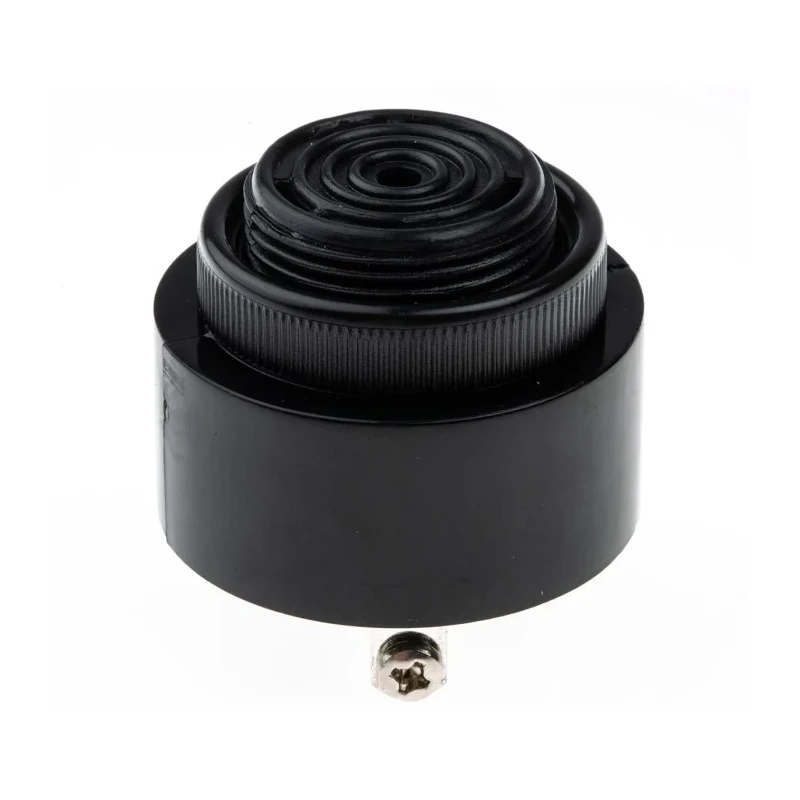

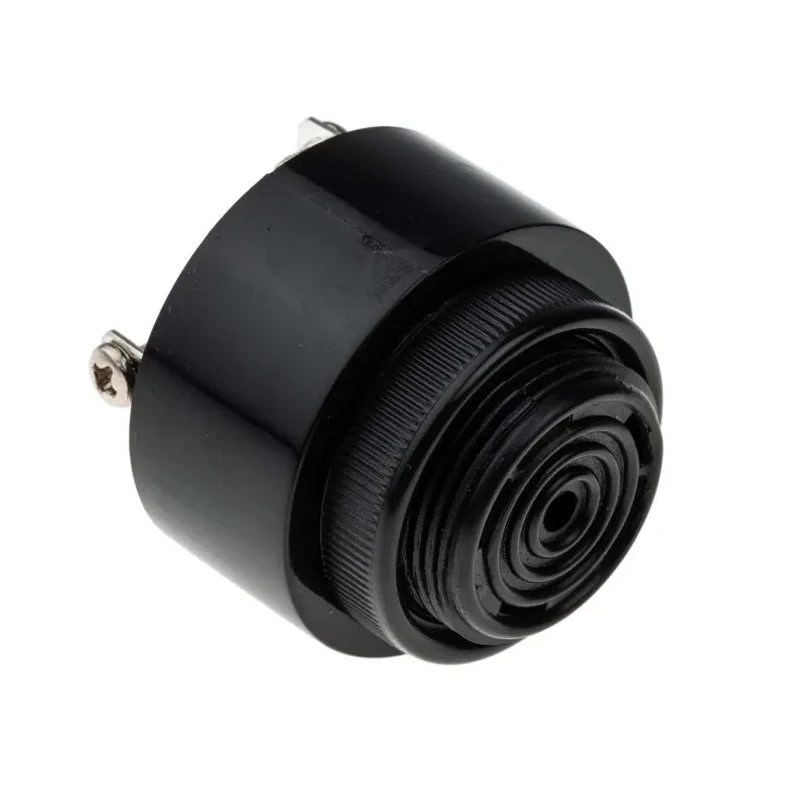

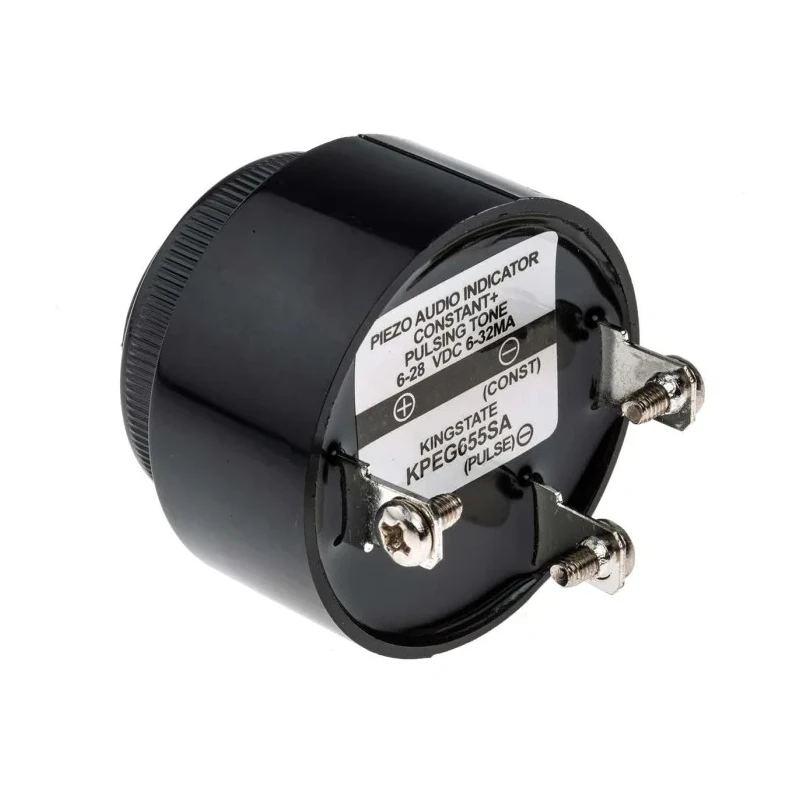

Kingstate 92 dB Panel Mount Continuous Fast Pulse Internal Buzzer 6 V dc Min 28 V dc Max 622-1556

Kingstate 622-1556 is a high-quality 92 dB panel mount buzzer featuring continuous and fast pulse internal tone capabilities. This buzzer operates efficiently within a supply voltage range of 6 V dc minimum to 28 V dc maximum, making it compatible with a wide variety of consumer electrical appliances.

Compact in design, it features a 42.5 mm diameter and 33 mm height, ideal for space-saving panel mounting applications. The buzzer draws 29 mA current, delivering a clear audible output at frequencies ranging between 2300 Hz and 3.3 kHz. Designed to work reliably in demanding environments, it supports an operating temperature range from -30°C to 85°C.

Installation is facilitated by FASTON terminals, allowing for straightforward wire connection and crimping without soldering. The internal drive type enhances the reliability of tone generation, ensuring a steady and effective warning or signaling sound.

This product conforms to international electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, protecting it from damage due to electrostatic discharge during handling and packaging.

Typical applications for this buzzer include household appliances such as microwaves, doorbells, and other consumer electronics requiring audible alerts. Manufactured in Taiwan, the product meets rigorous quality assurance processes intrinsic to the Kingstate brand.

The buzzer provides a sound level of 92 dB to overcome environmental noise. Designed for panel mounting with a compact 42.5 mm diameter and 33 mm height. Operates within a voltage range of 6 V dc minimum to 28 V dc maximum.

Features continuous and fast pulsed tone types for versatile audio signaling. Supplies 29 mA current with a frequency range of 2300 Hz to 3.3 kHz. Durable operation over temperature range from -30°C to +85°C. Equipped with internal drive and FASTON terminals for easy wiring without soldering.

Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards. Manufactured in Taiwan, Province Of China, ensuring high quality standards. Explore the EnvMart collection for a wide range of industrial and electronic components, including verified Kingstate products trusted for performance and quality.
