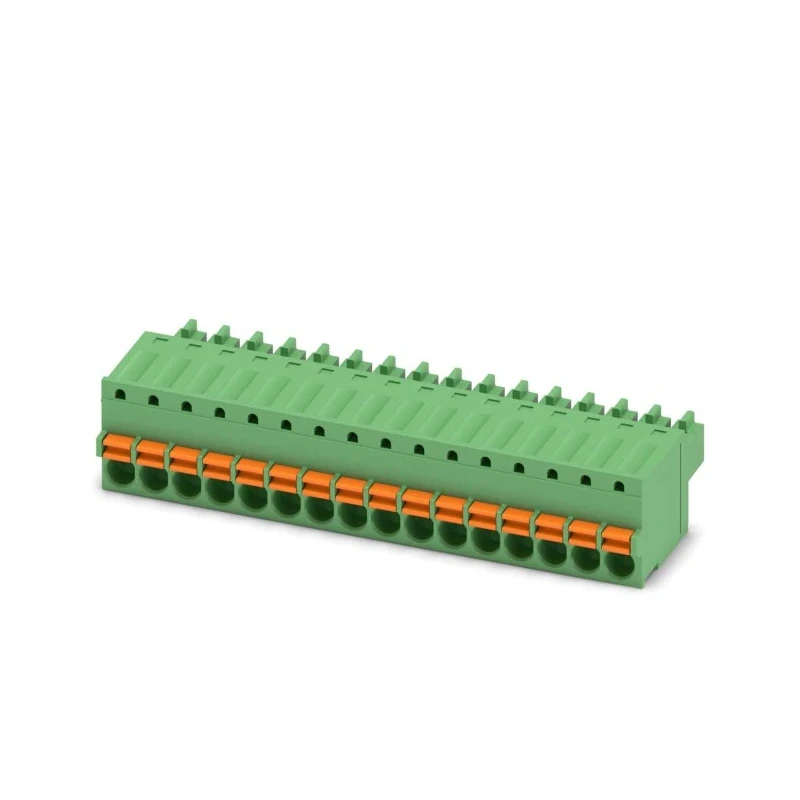

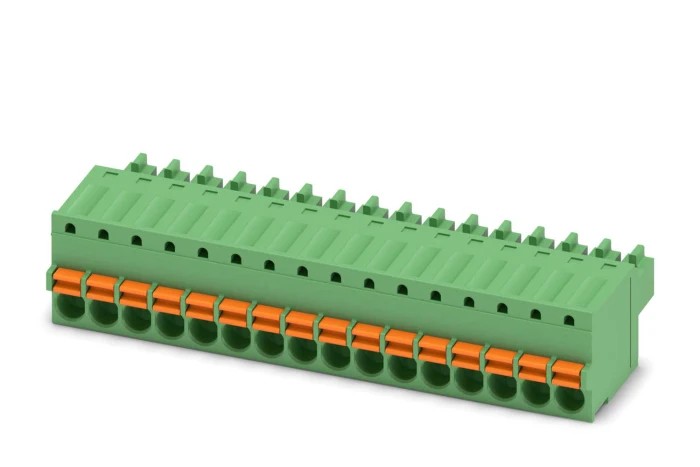

Phoenix Contact FK-MCP 1.5/16-ST-3.5 Series Pluggable Terminal Block, 16-Contact, 3.5 mm Pitch, 1 Row, 320V, 8A 1940046
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 21mm |
| Model | 1940046 |
| Depth | 12.4mm |
| Width | 56.9mm |
| Housing Material | Polyamide |
| Series | FK-MCP 1.5/16-ST-3.5 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 16 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Push-in Spring |
Key Features
- Provides 16 connections in one row for efficient pcb wiring.
- Supports a nominal current of 8 amperes with rated voltage of 320 volts.
- Push-in spring connection method ensures reliable and quick wire installation.
- Constructed with durable polyamide housing for enhanced safety and longevity.
- Compatible with wire sizes ranging from 0.14 mm² minimum to 1.5 mm² maximum.
- Features a female connector gender and straight orientation for straightforward PCB integration.
- Compact dimensions include 21 mm length, 56.9 mm width, and 12.4 mm depth.
- Color coded green for easy visual identification and system organization.
Product Description
Phoenix Contact 1940046 Pluggable Terminal Block is a high-quality electrical connector designed for seamless PCB wiring applications. It features 16 contacts arranged in a single row with a 3.5 mm pitch, making it suitable for compact and efficient circuit board layouts.
The terminal block supports a nominal current rating of 8 amperes and a voltage rating of 320 volts, ensuring safe operation under demanding electrical loads. Its push-in spring connection method enables secure wire retention and simplifies installation by allowing quick and reliable conductor seating without additional tools.
The housing is made from robust polyamide material, which enhances electrical insulation and mechanical durability. This terminal block accepts wire sizes from 0.14 mm² to 1.5 mm² (26 AWG to 16 AWG), accommodating a range of conductor gauges commonly used in industrial and commercial wiring.
Physically, it measures 21 mm in length, 56.9 mm in width, and 12.4 mm in depth. The green color coding supports easy identification within complex assemblies. Manufactured in Germany, this product adheres to stringent quality control standards.
16 individual contacts in a single-row arrangement ensure ample connectivity. 8A nominal current rating provides reliable electrical performance. 3.5 mm pitch spacing supports compact PCB designs. Push-in spring connection method allows tool-free, fast wiring.
Polyamide housing enhances safety and mechanical strength. Wire size compatibility from 0.14 mm² to 1.5 mm² facilitates versatile applications. Straight orientation and female connector gender for standard use cases. Compact form factor for space-saving installation.
Green color coding for system organization and troubleshooting. Manufactured in Germany with high precision and reliability.
This Pluggable Terminal Block is ideal for use in industrial automation, control cabinets, machinery wiring, and other electronic assembly applications where reliable and durable connections are critical. Its design supports efficient electrical installation, maintenance, and system modifications.
Explore more Phoenix Contact products at EnvMart for comprehensive electrical and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a nominal current rating of 8 amperes.
It has a voltage rating of 320 volts.
The pitch size is 3.5 mm, allowing for compact PCB designs.
This terminal block accommodates wire sizes ranging from 0.14 mm² to 1.5 mm² (26 AWG to 16 AWG).
It utilizes a push-in spring connection method for secure and tool-free wiring.
The dimensions are 21 mm in length, 56.9 mm in width, and 12.4 mm in depth.
The connector gender is female, designed for straightforward PCB integration.
It is manufactured in Germany, adhering to stringent quality control standards.
The housing is color-coded green for easy visual identification.
It features 16 contacts arranged in a single row.
It is ideal for use in industrial automation, control cabinets, and machinery wiring.
The housing is constructed from durable polyamide material, enhancing electrical insulation.
