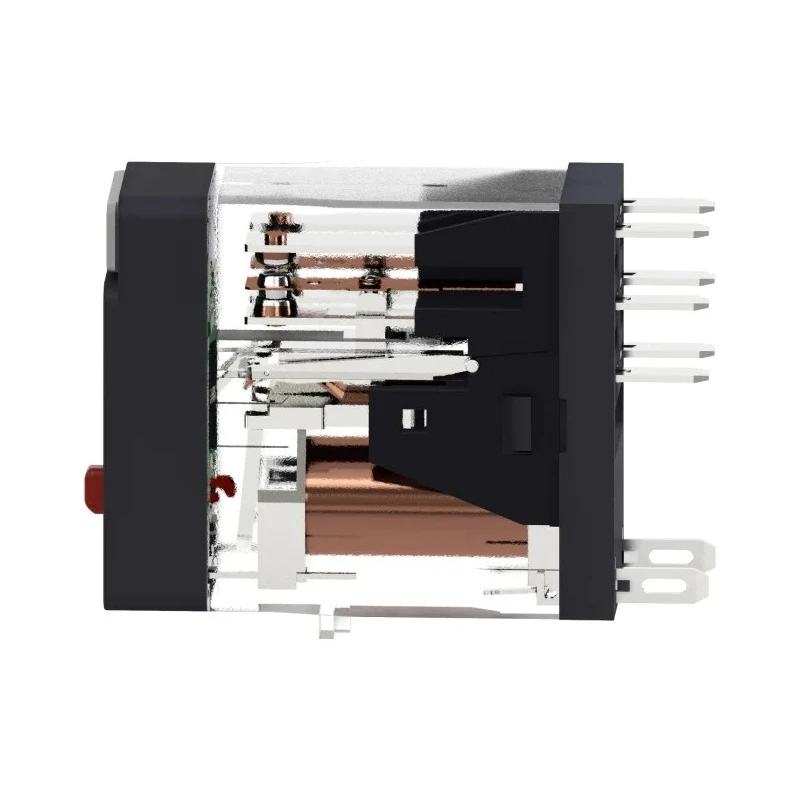

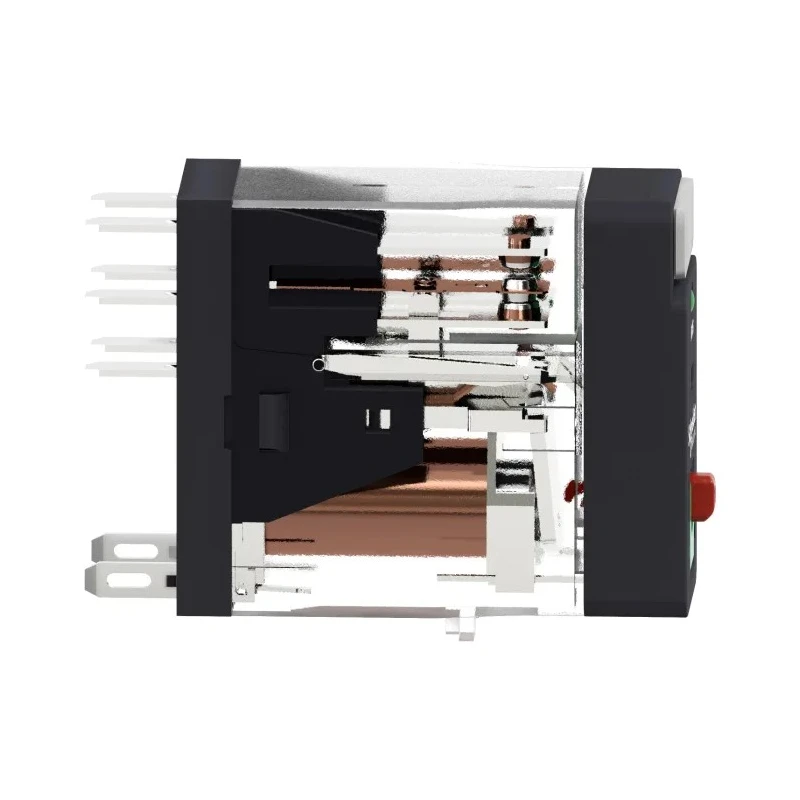

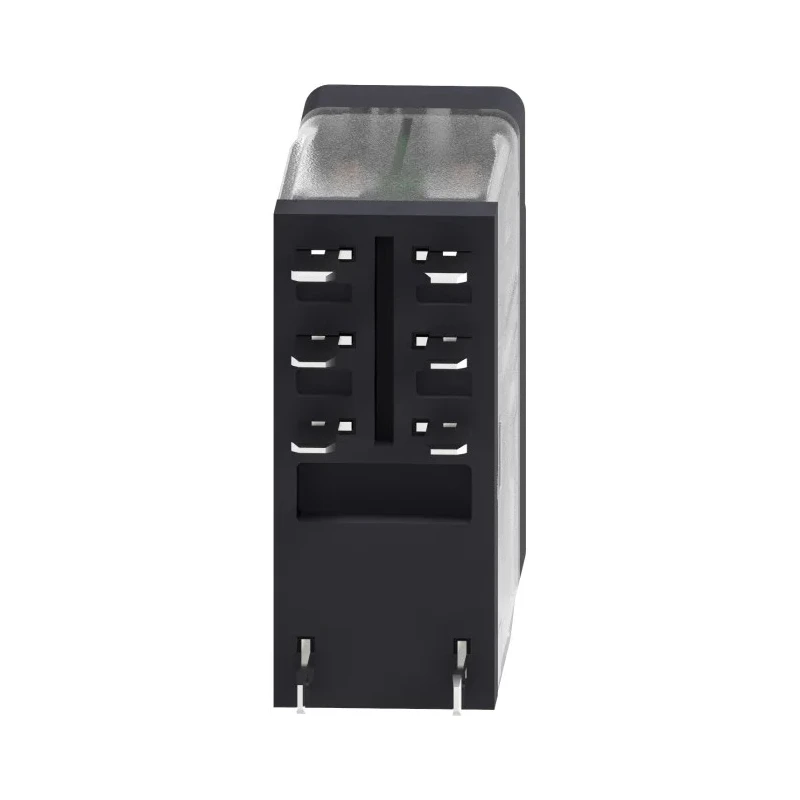

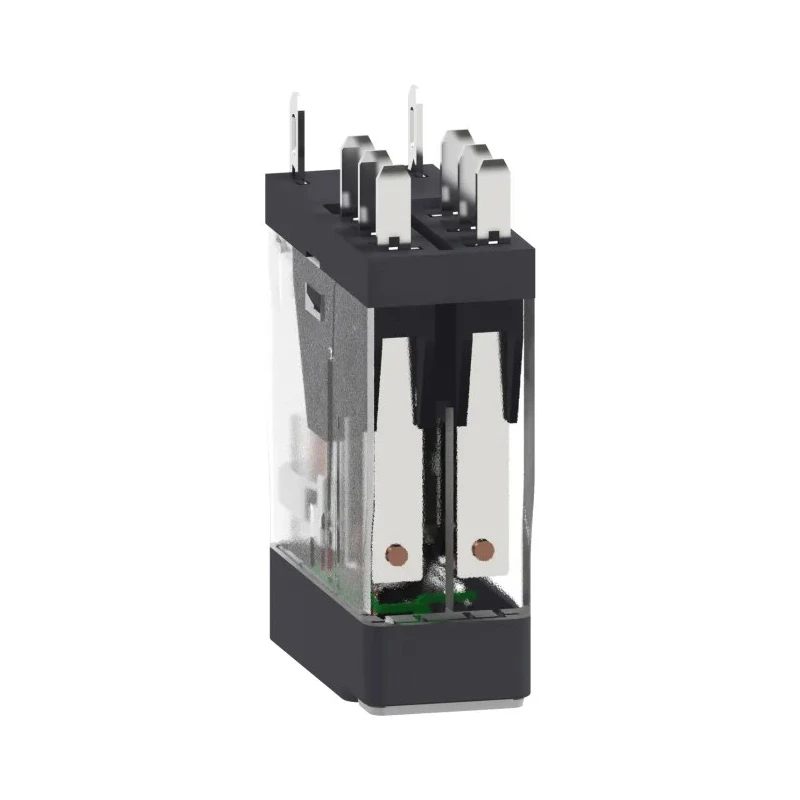

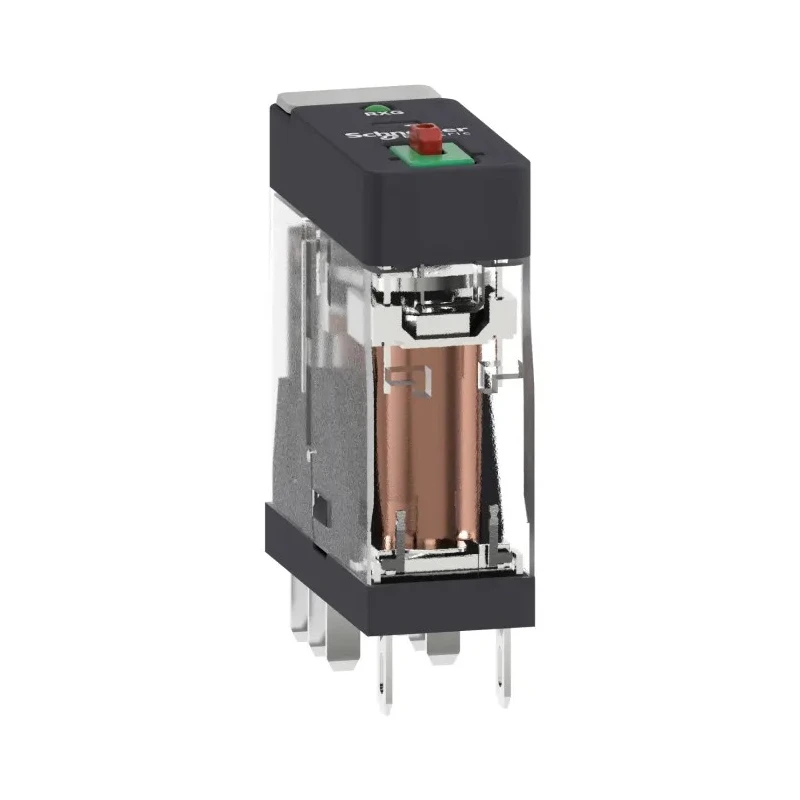

Schneider Electric Power Relay 230V AC Coil 5A Switching Current 2 CO Plug-In Harmony Relay RXG RXG22P7

Schneider Electric RXG22P7 is a high-performance power relay from the Harmony Relay RXG series designed for industrial and automation system controls. Operating at 230V AC coil voltage with 5A switching current, this relay features 2 changeover (CO) contacts enabling efficient switching of AC and DC loads up to 1250VA capacity. Its plug-in terminal type supports quick installation and maintenance.

The relay coil consumes only 820mW power with a coil resistance of 23.5kΩ, optimizing control circuit energy efficiency. The compact form factor with dimensions 13mm (L) x 16mm (W) x 37.1mm (H) and robust silver alloy contacts ensure reliability and long service life with mechanical life rated at 10 million cycles and electrical life of 100,000 cycles at elevated temperatures.

Designed for harsh industrial environments, the RXG22P7 operates in temperature ranges from -40°C to 70°C and stores safely up to 85°C with humidity tolerance from 10% to 85% RH. It incorporates reinforced insulation between coil and contacts with a dielectric strength of 5000V AC and surge endurance of 6kV impulse voltage, providing excellent protection against electrical surges.

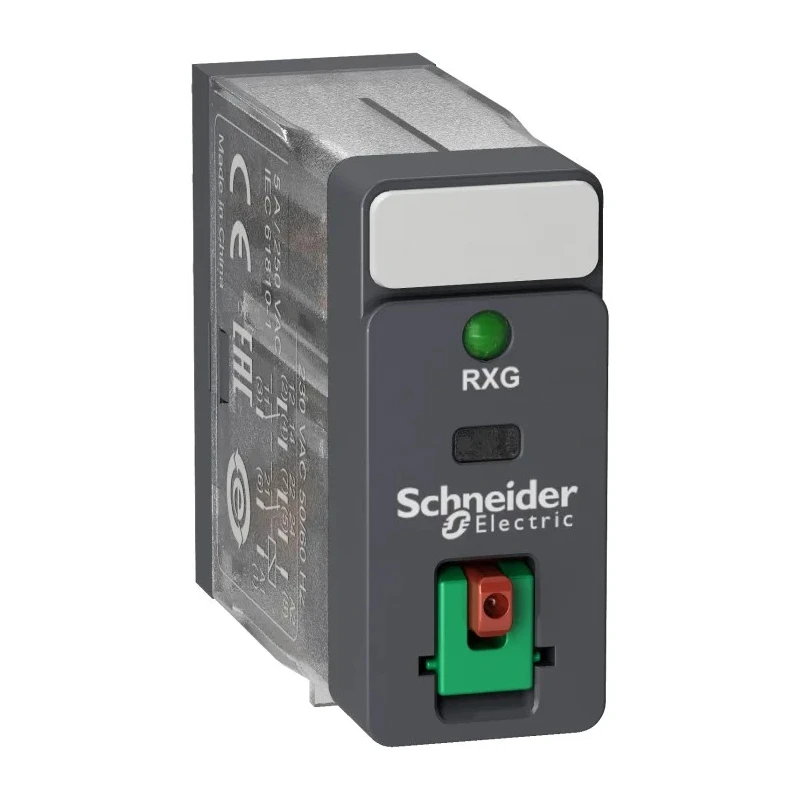

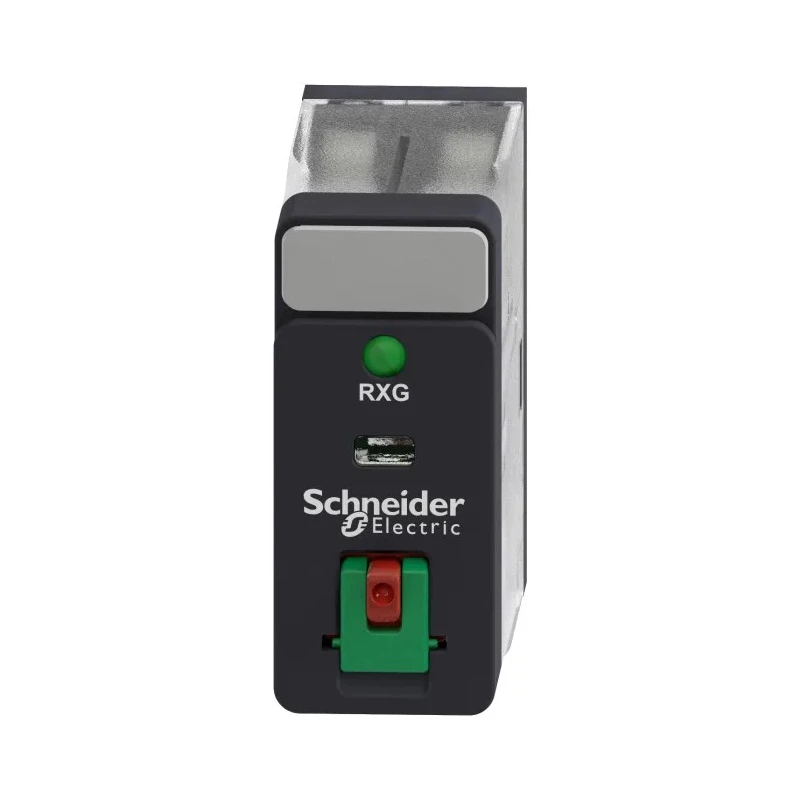

The relay includes an LED indicator and a lockable test button for safe diagnostics and straightforward status verification during maintenance. Its IP40 protection rating suits installation in enclosed control panels, adaptable to any mounting orientation.

Applications include machine control panels requiring precise status indication, interposing PLC outputs to field devices, switching lighting and small motor circuits, relay logic in automation racks, and retrofit replacements in control cabinets.

Operates at 230V AC coil voltage optimizing control supply compatibility. 5A switching current manages moderate industrial control loads efficiently. 2 changeover contacts support diverse AC/DC load switching applications.

Plug-in terminal design enables easy installation and maintenance. Robust coil and contact design ensures mechanical and electrical durability. Reinforced insulation and surge resistance improve operational safety. Wide ambient temperature and humidity tolerance maximize usability.

LED diagnostic indicator and lockable test button enhance maintenance safety. Compact size fits standard control panels with IP40 protection class. Explore Schneider Electric Power Relays and other high-quality electrical components on EnvMart for your industrial automation needs.
