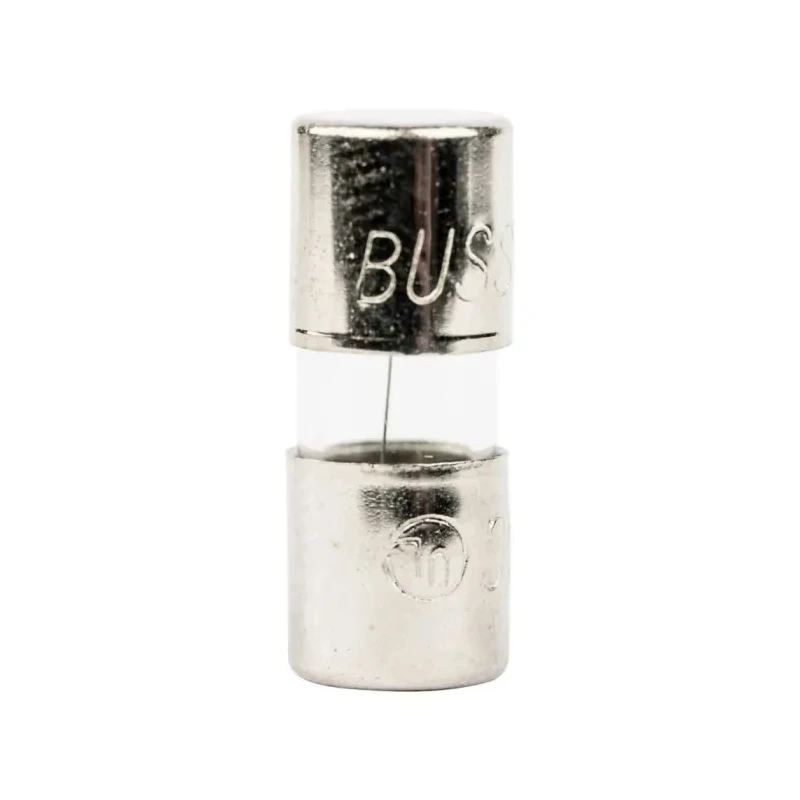

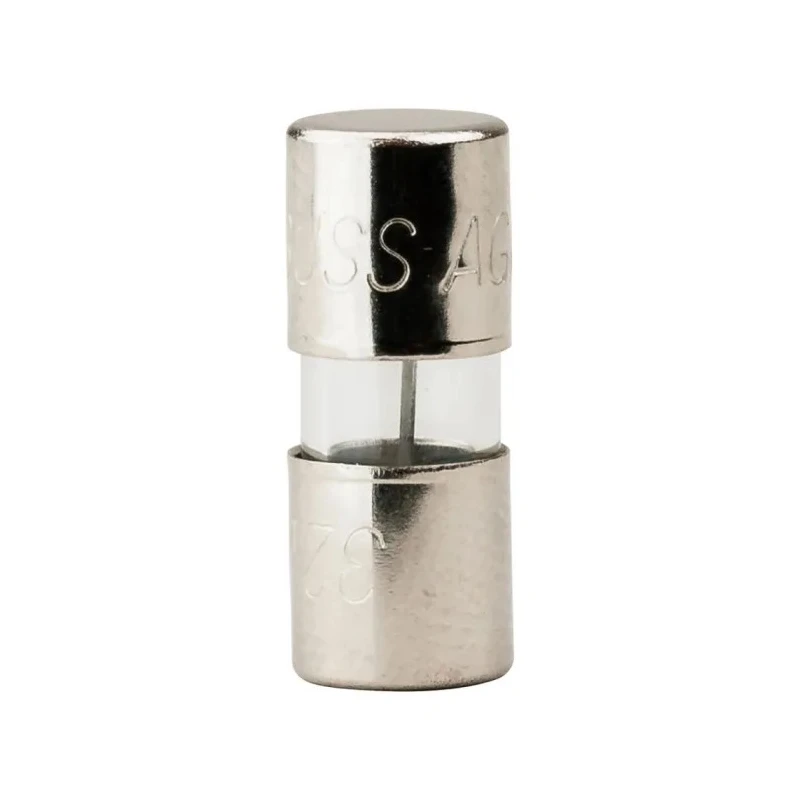

Eaton Fast Acting Glass Cartridge Fuse 5A 125V AC, 6.4 x 15.9 mm AGA-5

Eaton AGA-5 fast acting glass cartridge fuse with a current rating of 5A and voltage rating of 125V AC is designed for effective circuit protection in electrical and automation applications. Featuring a fuse size of 6.4 x 15.9 mm, this compact fuse fits well in tight installations, ensuring reliable overcurrent protection.

The glass body allows full visibility of the fuse element for easy inspection, while nickel-plated brass end caps enhance conductivity and durability to withstand electrical stresses. This fuse type operates effectively in both AC and DC electrical systems, making it versatile for diverse use cases.

Certified to UL Class 248-14, the AGA-5 fuse assures compliance with established electrical safety standards, guaranteeing dependable and safe operation in industrial control panels, home electronics, and machinery protection circuits.

The fast acting characteristic enables prompt disconnection on fault detection, with an overload response time of 4 hours at full 100% load, reducing to just 120 seconds at double load, safeguarding sensitive electronic components.

This fuse is particularly suitable for use in automation systems requiring fast and reliable overcurrent protection, electronic circuit boards, control panels, and various home appliance applications.

Fast response time for effective electrical fault protection. Durable glass body construction with enhanced visibility. Nickel-plated brass end caps provide corrosion resistance and conductivity. Conforms to UL 248-14 electrical fuse standards.

Compact 6.4 x 15.9 mm size ideal for space-constrained applications. Rated for 5A current with 125V AC and 32V DC voltage compatibility. Non-indicating type for simple integration in electrical circuits. Widely applicable in home electronics, industrial control, and automation systems.

Overload response times ensure circuit safety under varied fault conditions.

Select Eaton fuses for consistent quality and performance in electrical protection devices. Explore more Eaton products and Cartridge Fuses on EnvMart for your industrial and electrical needs.
