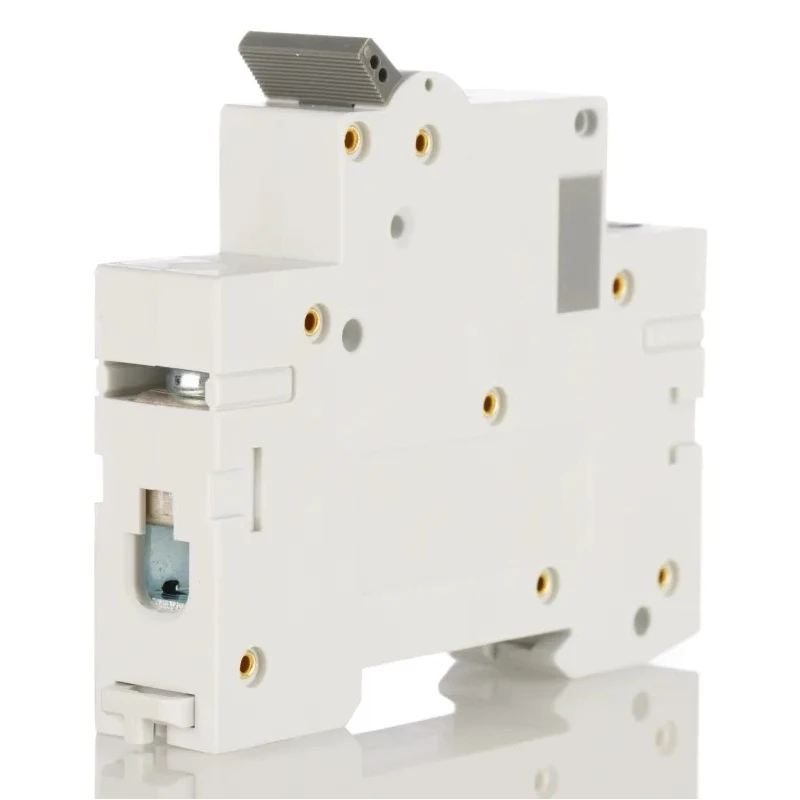

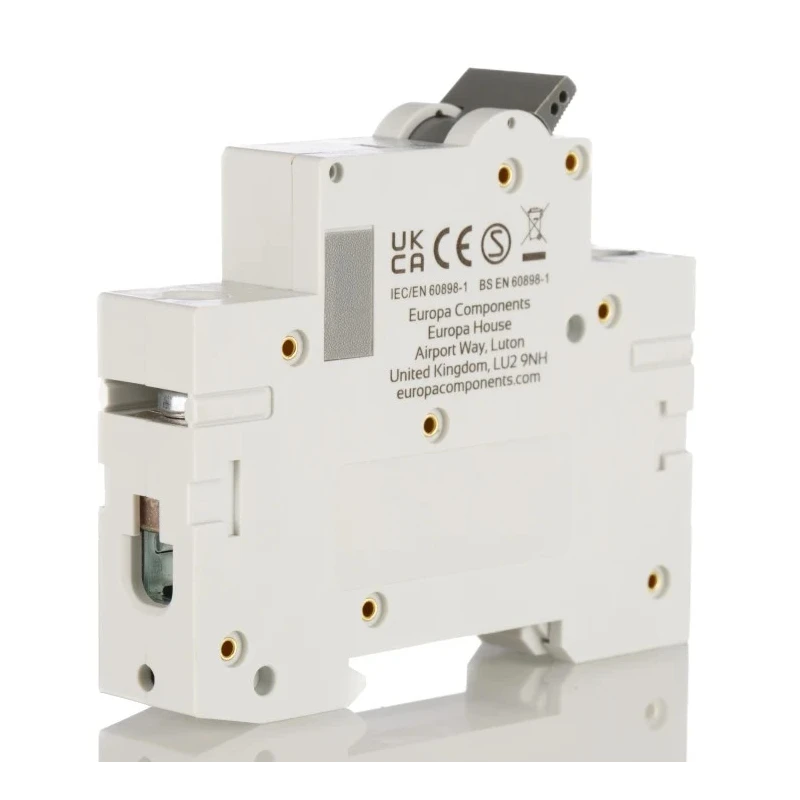

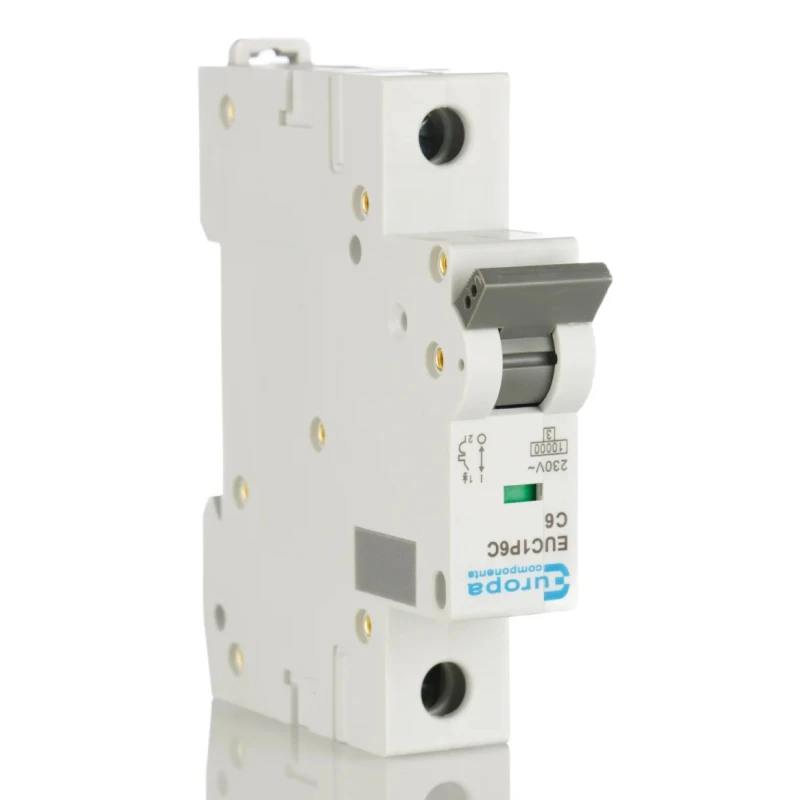

Europa Miniature Circuit Breaker 1-Pole 6A Type C 400V AC 10 kA Breaking Capacity EUC1P

Free Delivery in India | Lowest Global Shipping Charges

Europa Miniature Circuit Breaker 1-Pole 6A Type C 400V AC 10 kA Breaking Capacity EUC1P

Name: Europa Miniature Circuit Breaker 1-Pole 6A Type C 400V AC 10 kA Breaking Capacity EUC1P
Brand: Europa
SKU: 381805
Price: 9.74 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Europa Condition New

Specifications

Country of Origin	China
Range	EUC1P
Brand	Europa
Height	18mm
Model	EUC1P
Depth	87mm
IP Rating	IP20
Width	78mm
Mount Type	DIN Rail
Current Rating	6A
Terminal Capacity	1mm2 to 25mm2
Series	EUC1P
Terminal type	Tunnel
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	SEMKO, CE, EN 60898, IEC 60898
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Toggle Switch
Merlin Gerin C60HC MCB1P, 6A Curve C, 415V AC, 10 kA Breaking CapacityBrand	Merlin Gerin

Key Features

Designed for 35mm DIN rail mounting with toggle switch reset actuator.
Suitable for electrical circuit protection in residential and commercial applications.
Terminal capacity supports conductor sizes from 1 mm² to 25 mm².
IP20 rated enclosure providing basic protection against solid objects.
Operates reliably within temperature range of -5°C to 40°C.
Conforms to IEC 60898 and EN 60898 standards with SEMKO and CE approvals.
Supports safe and reliable electrical automation systems and distribution boards.

Product Description

Europa EUC1P6C Miniature Circuit Breaker is a single-pole device engineered for protection of electrical circuits up to 6A current rating. It operates at a rated voltage of 400V AC and features Type C tripping characteristics suitable for general-purpose protection against overload and short circuits.

The device is designed for mounting on a 35mm DIN rail and includes a toggle switch for manual reset, facilitating ease of operation and maintenance. Its compact form factor, with dimensions of 78mm width, 18mm height, and 87mm depth, allows it to fit seamlessly within consumer units and electrical panels.

The circuit breaker ensures high breaking capacity of 10 kA, offering robust protection during fault conditions. Terminal design supports conductor sizes from 1 mm² up to 25 mm² ensuring compatibility with various wiring configurations. The product carries an IP20 rating providing protection against ingress of solid foreign objects.

Operating safely in ambient temperatures ranging from -5° to 40°C, this circuit breaker complies with international IEC 60898 and EN 60898 standards. The product is additionally certified with SEMKO and CE marks, demonstrating conformity to safety, reliability, and performance benchmarks.

1-Pole Miniature Circuit Breaker with 6A Current Rating. Type C tripping characteristic for versatile applications. Rated for 400V AC operation with 10 kA breaking capacity. 35mm DIN Rail mounting with toggle switch actuator.

Compact size suitable for consumer electrical units. Supports terminal conductor sizes from 1 mm² to 25 mm². Compliant with IEC 60898 and EN 60898 safety standards. Certified with SEMKO and CE approvals for assured quality.

This Europa EUC1P6C circuit breaker is ideal for use in residential, commercial, and light industrial electrical distribution applications. It provides reliable circuit protection ensuring safety and longevity of your electrical infrastructure.
