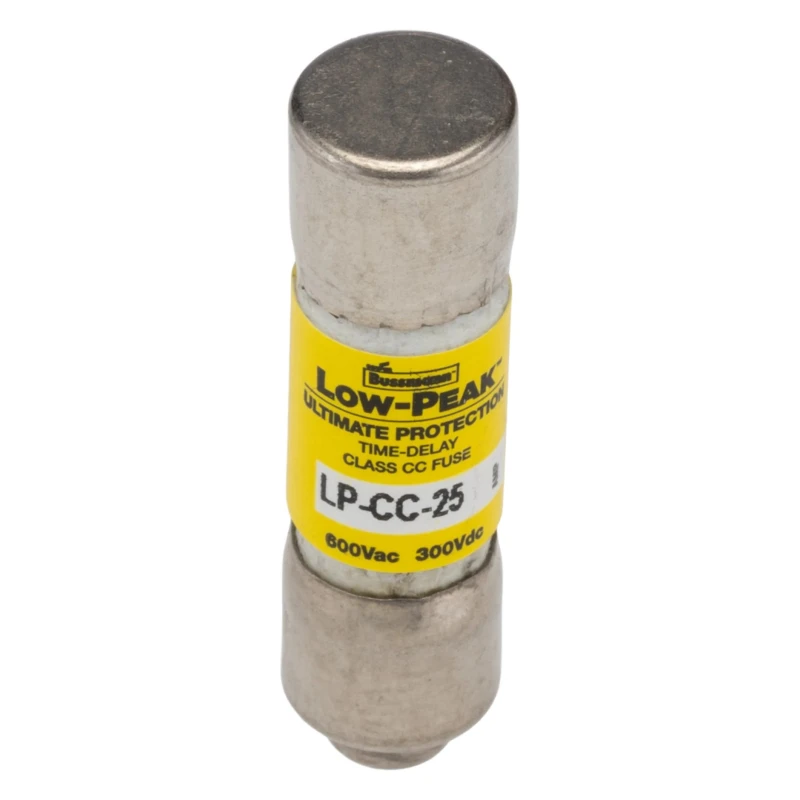

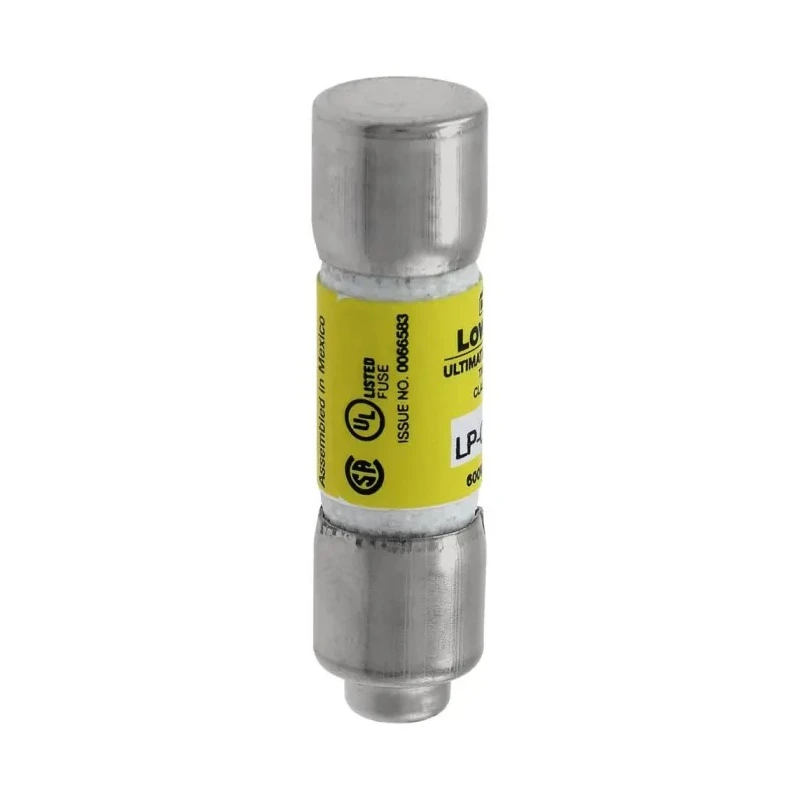

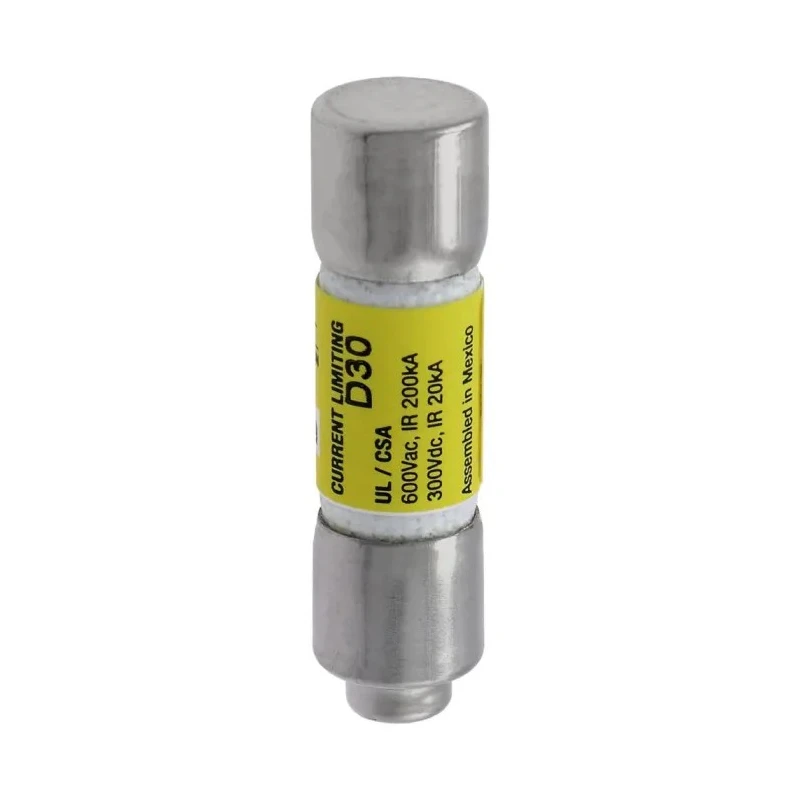

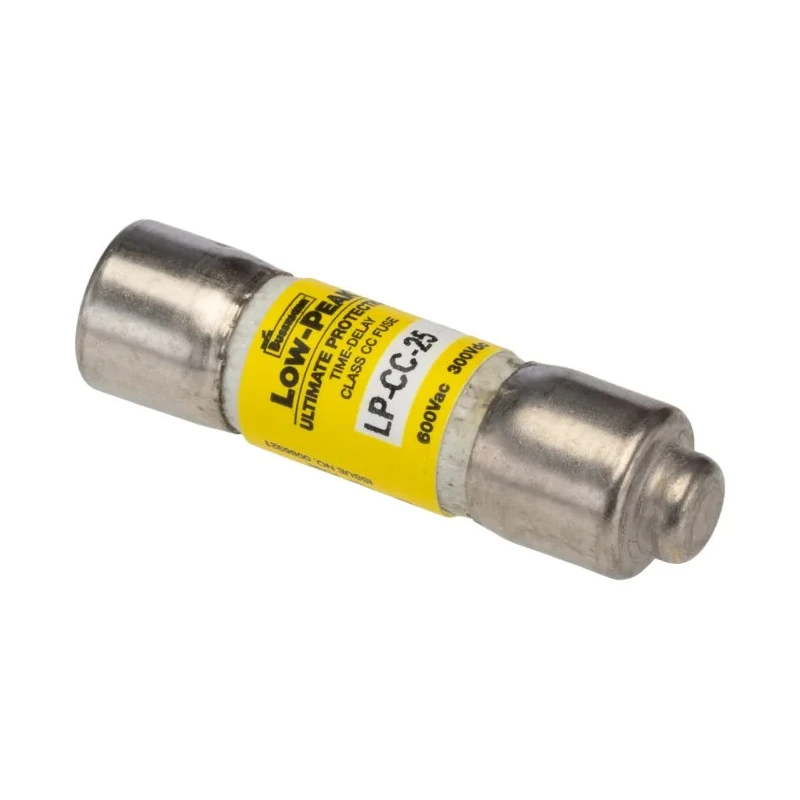

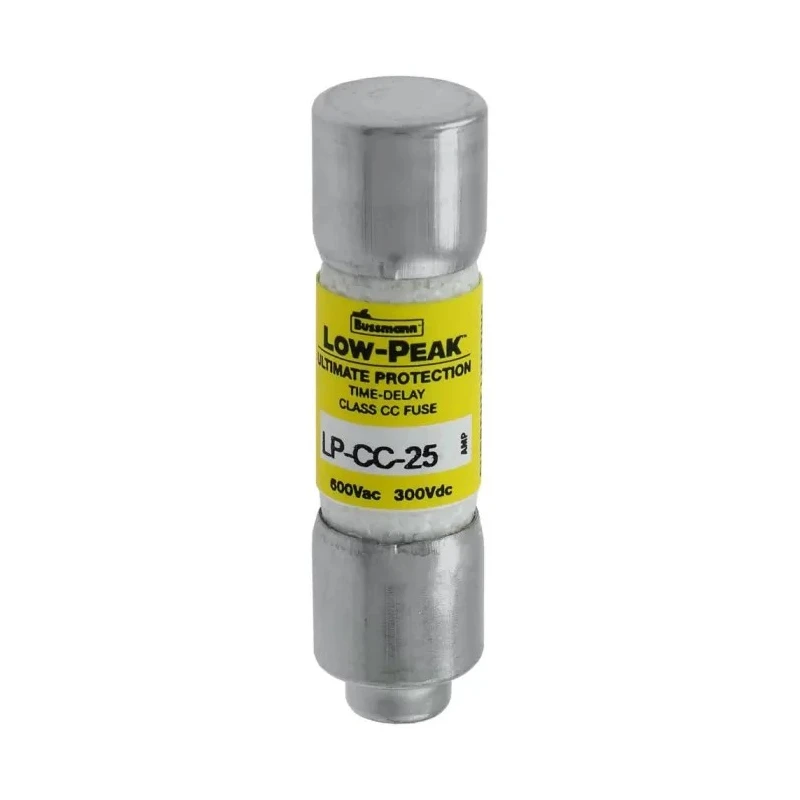

Eaton 25A Time Delay Melamine Cartridge Fuse 10 x 38 mm LP-CC-25

Eaton LP-CC-25 is a 25 ampere time delay cartridge fuse with a melamine body, measuring 10 x 38 mm, designed for specialized circuits and industrial control applications. It operates at voltages of up to 600V AC and 300V DC, providing reliable protection in a compact form factor.

This cartridge fuse features a current-limiting design that safeguards equipment by rapidly controlling surge currents. Its durable melamine construction offers enhanced mechanical strength and thermal performance, ensuring longevity in demanding environments.

The 25A rating is suitable for protecting small horsepower motor circuits, while the time-delay characteristic prevents nuisance openings during transient overload conditions, improving system reliability. Consistent ampacity ratios facilitate easy selective coordination, simplifying electrical protection design.

This fuse is ideal for use in branch circuits requiring protection up to 30A, and is compatible with NEMA and IEC motor controllers for Type 2 coordinated protection, making it suitable for industrial automation, manufacturing, and specialized electrical systems.

Standards compliance includes CE, CSA, RoHS, and UL certifications, underscoring safety and quality assurance. Designed to reduce fuse inventory requirements by up to 33%, it provides cost-effective system upgrades.

Current-limiting design protects against surge currents effectively. Durable melamine body ensures long-lasting performance. 25A current rating suitable for small horsepower motor circuits. Time-delay feature avoids unwanted fuse openings during short-circuits.

Consistent ampacity ratios enable easy selective coordination. Reduces inventory needs by up to 33%, offering cost efficiency. Compact 10 x 38 mm size fits a broad range of fuse holders. Voltage ratings of 600V AC and 300V DC support versatile applications.

Approved to CE, CSA, RoHS, and UL standards for safety compliance.

This Eaton cartridge fuse is widely applicable in industrial, commercial, and specialized electrical protection needs. Explore more Eaton products and Cartridge Fuses on EnvMart for your electrical system requirements.
