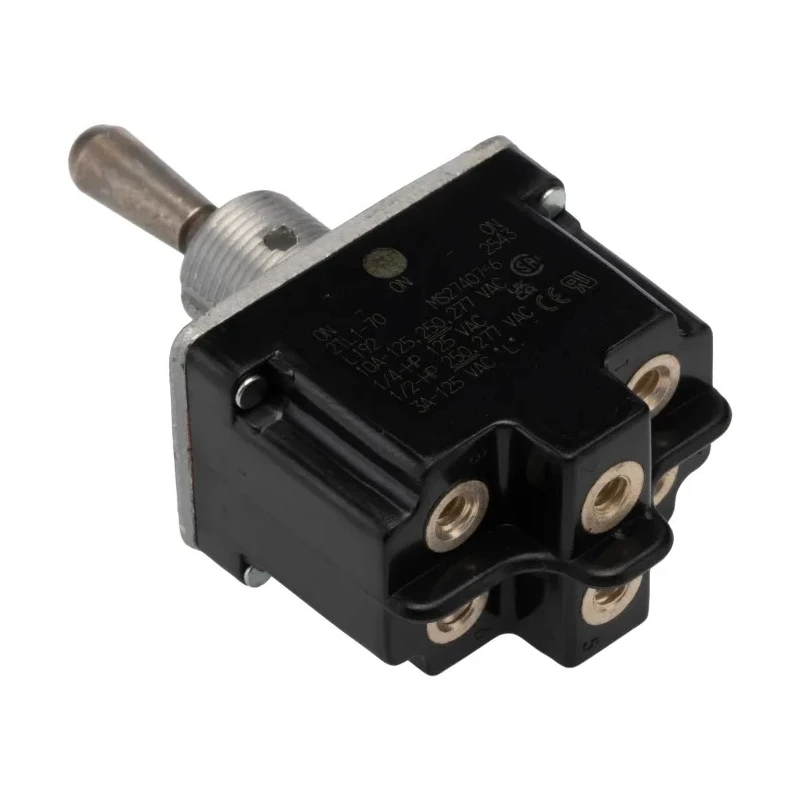

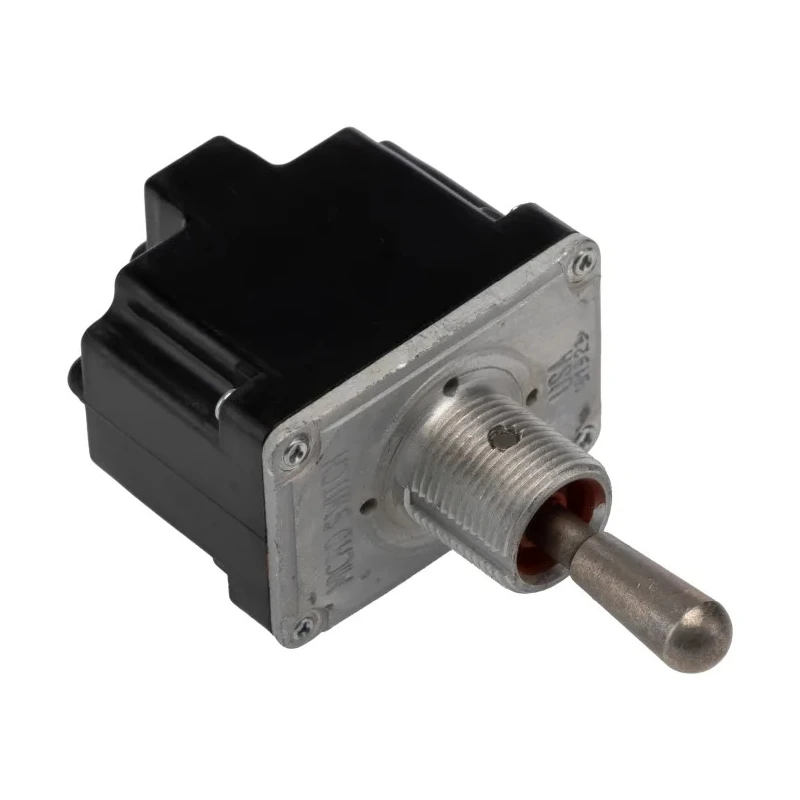

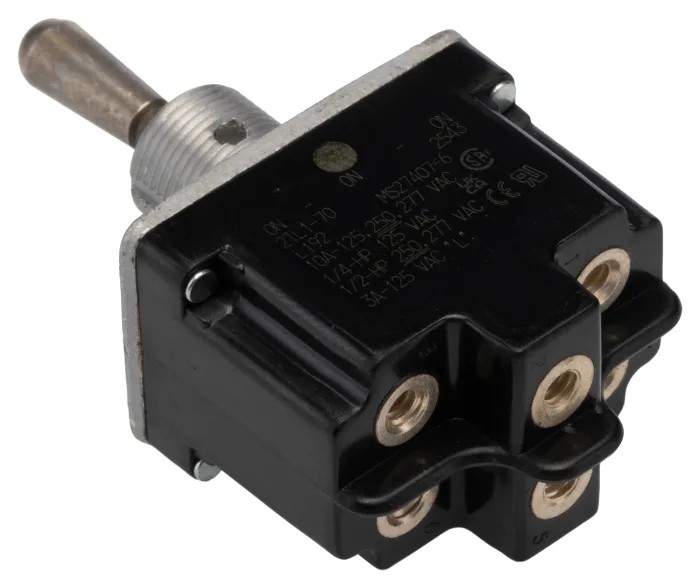

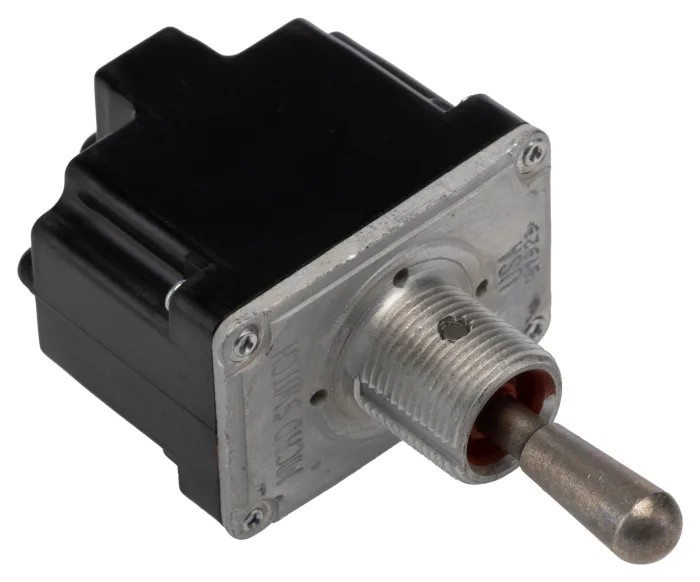

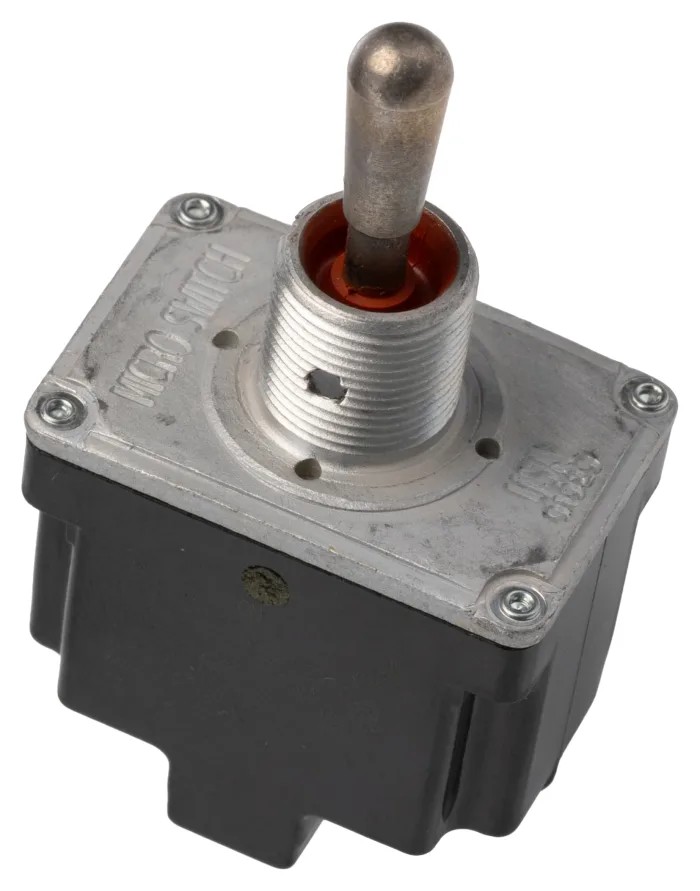

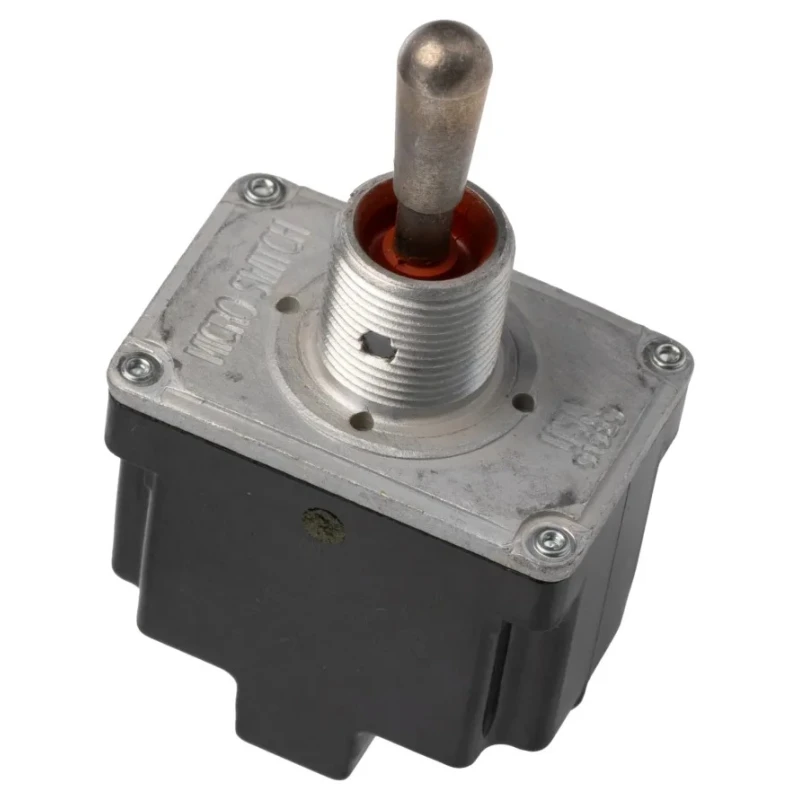

Honeywell Technologies Toggle Switch Panel Mount DPDT On-On-On Screw Terminal 277V AC 2TL1-70

Honeywell 2TL1-70 is a high-quality toggle switch designed for panel mount applications in industrial and commercial electrical systems. It features a double-pole double-throw (DPDT) contact configuration with On-On-On three-position switch operation, enabling flexible routing of signals or power between circuits. The switch supports multiple current ratings of 6A, 11A, and 18A, making it suitable for various load types and control scenarios.

This toggle switch mounts through a panel with a 12.4 mm diameter cutout, securing firmly by a bushing mount, which simplifies installation in control panels and electrical enclosures. The screw terminal type provides secure and maintainable electrical connections, allowing conductors to be clamped tightly and retightened as necessary.

The actuator length of 17 mm ensures easy manual toggling, while the switch overall dimensions of 26.7 mm height, 33.5 mm width, and 22 mm length offer a compact footprint for panel integration. It operates effectively over a wide temperature range from -65°C to 71°C, accommodating extreme cold storage environments and heated enclosures alike.

Certified by CSA, CE, and UL standards, the 2TL1-70 toggle switch meets global safety and regulatory requirements, offering reliable performance for mains control panels, motor control circuits, lighting distribution panels, and industrial instrumentation signal routing. It is also suited for retrofit replacements in legacy control assemblies.

Applications of this Honeywell toggle switch include control panel switching for mains circuits, motor control dual-pole switching, signal routing in instrumentation, and changeover switching in lighting distribution systems.

The toggle switch features a double-pole double-throw (DPDT) design for flexible circuit routing. The On-On-On switch operation allows three distinct positions for versatile control. Rated current capacities include 6A, 11A, and 18A to accommodate varied load requirements.

Screw terminal type ensures secure electrical connections and easy installation. Designed for panel mounting with a 12.4 mm diameter cutout for integration. The actuator length of 17 mm provides reliable manual operation.

Operates reliably in temperatures ranging from -65°C up to 71°C for diverse environments. Dimensions are compact with a height of 26.7 mm, width of 33.5 mm, and length of 22 mm. Certified to CSA, CE, and UL standards for safety and compliance.

Manufactured in the United States, assuring quality and consistency. Explore Honeywell Toggle Switch solutions and high-quality electrical control components on EnvMart, your trusted source for industrial automation and electrical products.
