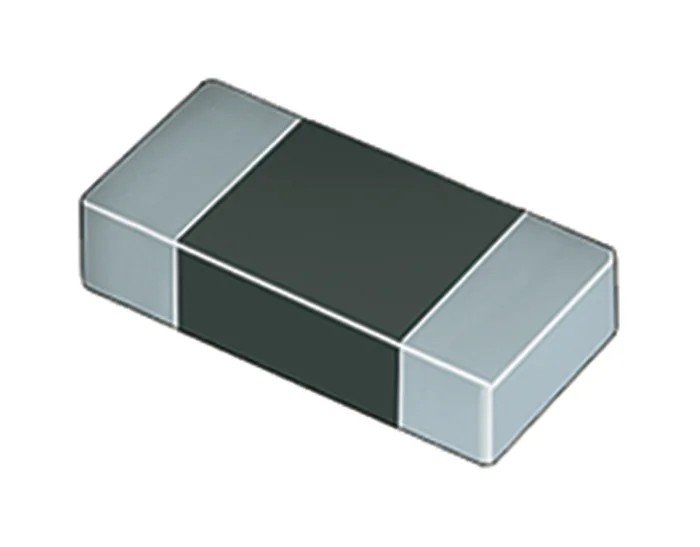

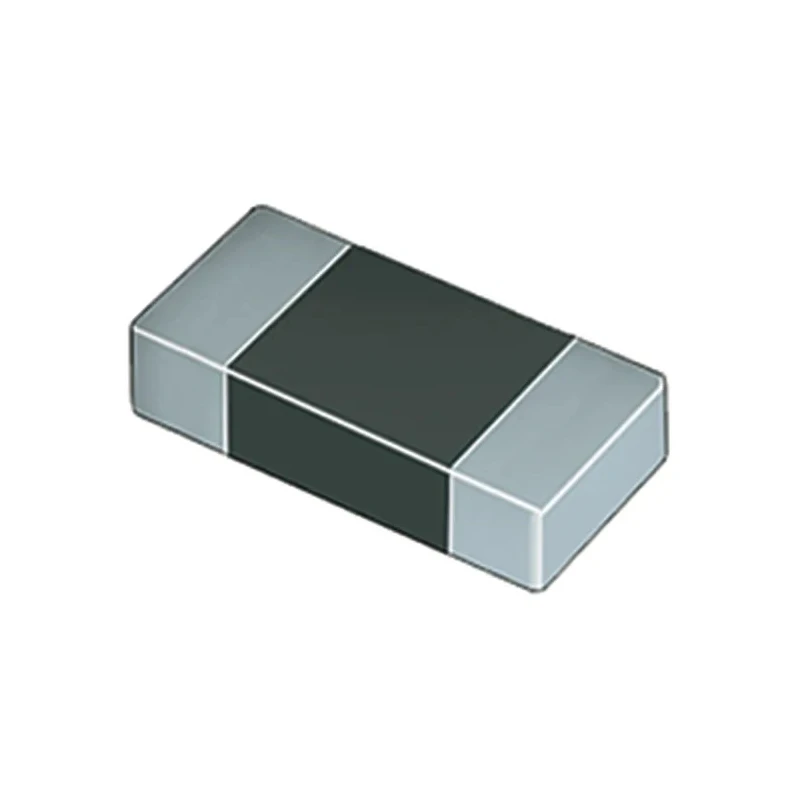

Murata 0603 Unshielded Surface Mount Inductor Non-Magnetic Core 20 nH ±5% 550 mA Idc Q:40 LQW18AN20NJ00D

Murata LQW18AN20NJ00D is a high-quality 0603 unshielded surface mount inductor featuring a non-magnetic core, ideal for high frequency electronic applications. With an inductance of 20 nH and a tolerance of ±5%, it offers precise performance for demanding circuits. The inductor supports a maximum DC current of 550 mA and has a low DC resistance of 160 mΩ, ensuring efficiency and minimal energy loss.

The compact 0603 package with dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth allows for dense PCB layouts. This wirewound, molded inductor is engineered for high reliability and stability within the temperature range of -55°C to 125°C. It also achieves a minimum quality factor of 40 and a maximum self-resonant frequency of 4.9 GHz, making it suitable for VHF and UHF frequency bands.

Murata inductors in the LQW18AN series are recognized for low tolerance and excellent resonance frequency, which makes them well-suited for wireless telecommunications equipment such as Bluetooth modules, GSM devices, and WLAN applications. The solder termination style ensures solid and long-lasting connections on printed circuit boards.

Packaged in paper tape form, these inductors are ready for automated insertion into manufacturing lines, increasing production efficiency and consistency. With compliance to RoHS standards and manufactured in Japan, this inductor meets stringent quality and environmental requirements.

The inductor's non-magnetic core material reduces interference and enhances signal integrity. Compact 0603 form factor facilitates integration into miniature electronic assemblies. High quality factor improves performance in resonant and filter circuits.

Wide operating temperature range guarantees stable operation under various environmental conditions. Low maximum DC resistance minimizes power losses in high current applications. Suitable for surface mount technology enabled production lines thanks to paper tape packaging.

Meets RoHS compliance ensuring minimal environmental impact. Applications include wireless communication devices requiring high-frequency inductors. Japanese manufacturing ensures consistent quality and reliability. Explore more Surface Mount Inductors and related electronic components in the Electronics & Electricals category at EnvMart, your trusted industrial partner.
