| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Dimensions | 2.09 x 1.53 x 1.42 mm |
| Height | 1.42mm |
| Length | 2.09mm |
| Model | LQW2BAS68NJ00L |
| Depth | 1.53mm |
| Operating Temp | -55→ +125°C |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 0.068μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 500mA |
| Pin Count | 2 |
| Maximum DC Resistance | 380mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.5GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |

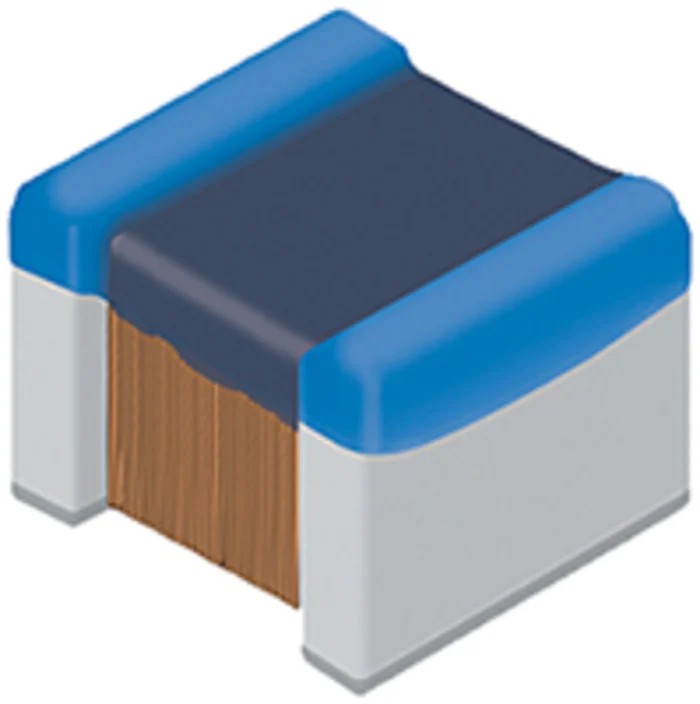

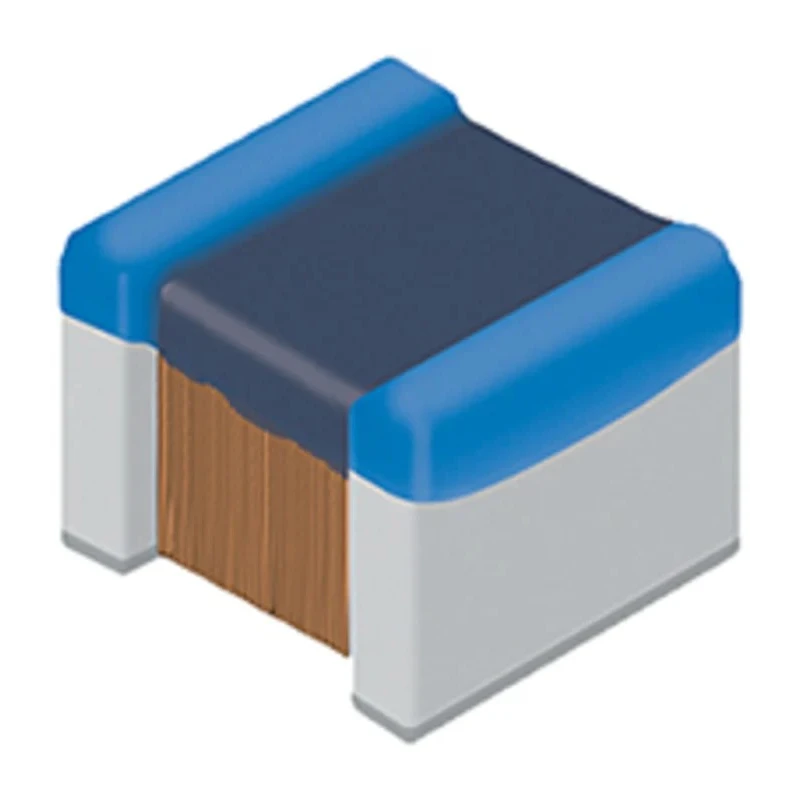

Murata LQW2BAS68NJ00L is a precision wirewound surface mount inductor designed for robust performance in electronic circuits requiring 0.068 μH inductance with ±5% tolerance. It features a shielded, non-magnetic core construction that ensures minimal interference and high Q factor of at least 60, suitable for UHF and SHF frequency ranges.
Encapsulated in a compact 0805 package with dimensions of 2.09 mm length by 1.53 mm depth and 1.42 mm height, this inductor is ideal for high-density surface mount PCB layouts. Its maximum DC current rating of 500 mA and maximum DC resistance of 380 mΩ support efficient and reliable operation in demanding electronic applications.
The component is designed to operate over a wide temperature range from -55°C up to +125°C, making it suitable for industrial, automotive, and telecommunications applications requiring durability in harsh environments.
Murata's adherence to RoHS standards ensures the component is environmentally compliant. The solder termination style facilitates automated manufacturing processes and reliable solder connections.
Packaged on paper tape reels, the inductor is optimized for assembly line insertion, enhancing manufacturing productivity and component handling. Compact 0805 package size for space-constrained designs. Shielded non-magnetic core for reduced EMI and enhanced performance.
High Q factor and self resonant frequency for advanced RF applications. Wide operating temperature range suitable for industrial use. RoHS compliant manufacturing supporting environmental sustainability. Solder terminations designed for automated PCB assembly.
Low DC resistance reducing power losses in circuits. Suitable for use in automotive, telecommunications, and industrial electronics. Packaging on paper tape reels for efficient automated processes.
This Murata surface mount inductor is an excellent choice for designers demanding precision, durability, and performance in miniature electronic components. Explore similar components in the Surface Mount Inductors category at EnvMart for your next project.
