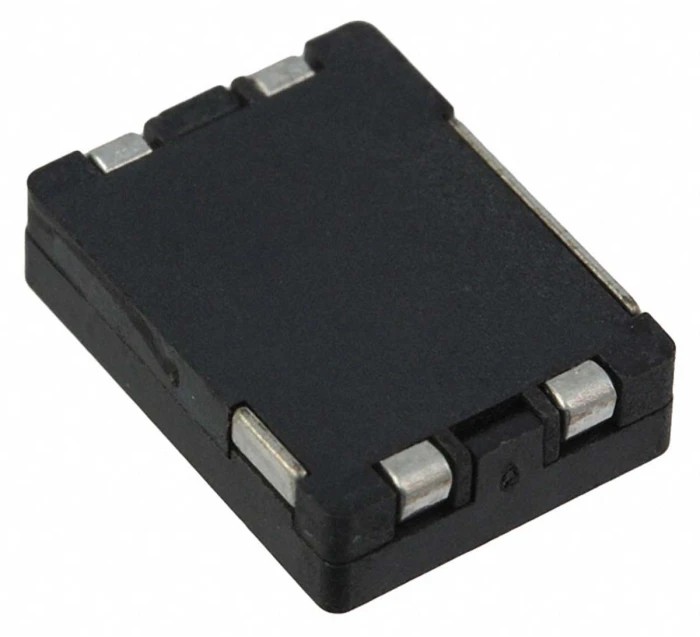

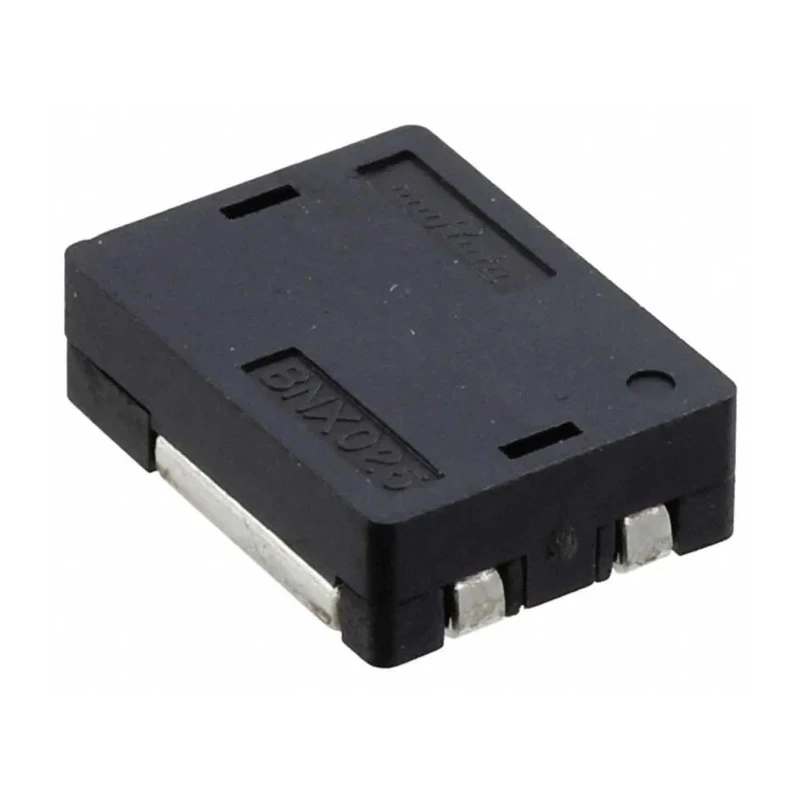

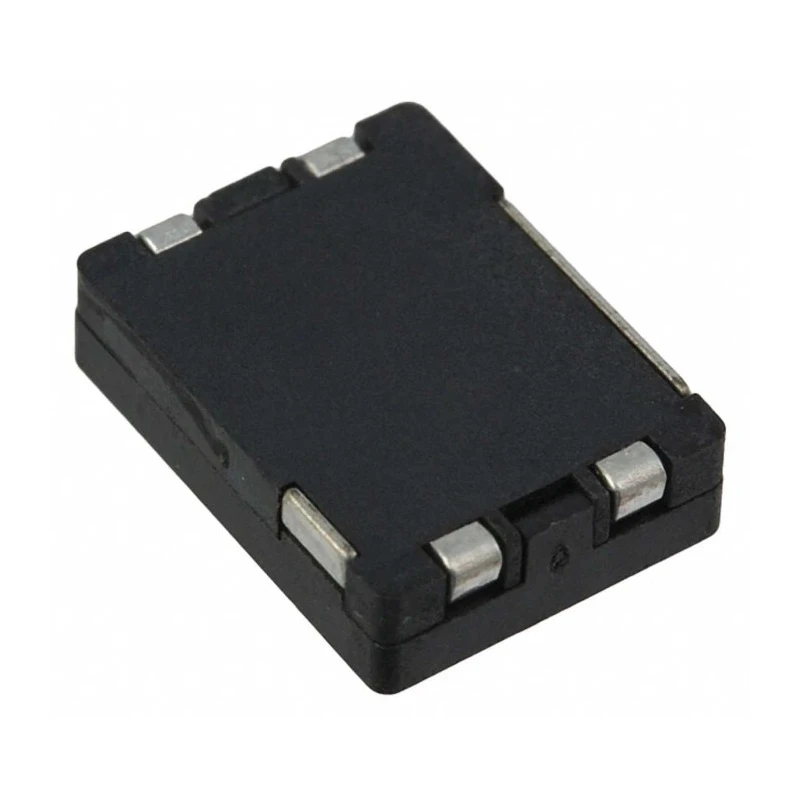

Murata Surface EMI Filter BNX02 15A 25V DC 1 GHz, 50kHz, Flat Contact BNX02
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 3.5mm |
| Length | 12.1mm |
| Model | BNX02 |
| Depth | 9.1mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Operating Frequency | 1, 50GHz |
| Series | BNX02 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 10μF |
| Minimum Operating Temperature | -55°C |
| Maximum Current | 15A |
| Maximum Voltage | 25V dc |
| Standards/Approvals | RoHS |
| Termination Style | Flat Contact |
Key Features
- Designed for surface mounting with flat contact termination style.
- Operates efficiently from -55°C to 125°C temperature range.
- Supports capacitance of 10μF ensuring effective noise suppression.
- Packaged in tape and reel format suitable for automated assembly.
- Complies with RoHS standards for environmental safety.
- Wide frequency range supports automotive and factory automation devices.
- Manufactured in Japan ensuring quality and reliability.
Product Description
Murata BNX02 Surface EMI Filter BNX025H01L offers a robust solution for suppression of electromagnetic interference in automotive and industrial applications. Rated for a maximum current of 15A and a maximum voltage of 25V DC, this filter supports operating frequencies from 50kHz up to 1 GHz, making it suitable for high-frequency noise filtering on DC switching lines.
The filter features a surface mount design with flat contact terminations, allowing for easy integration into automated assembly lines. Its compact size with 12.1mm length, 3.5mm height, and 9.1mm depth ensures minimal PCB real estate occupation.
Operating over a wide temperature range from -55°C to 125°C, it is engineered to withstand harsh automotive and factory automation environments. The 10μF capacitance offers efficient EMI attenuation while complying with RoHS environmental standards.
Typical applications include automotive devices such as displays (PDP/LCD-TV), digital audiovisual equipment, amusement machines, PC peripherals, industrial measurement instruments, and power supplies. The product is packaged in tape and reel format for enhanced production efficiency.
Surface mount EMI filter with flat contact termination. High current rating of 15A at 25V DC. Operating frequency range of 50kHz to 1 GHz. Wide operating temperature range of -55°C to 125°C. Compact size: 12.1mm x 3.5mm x 9.1mm.
Compliant with RoHS standards. Suitable for automotive and industrial applications. Packaged on tape and reel for automated assembly.
This Murata BNX02 EMI filter is an ideal choice for reducing electromagnetic interference in demanding industrial and automotive environments. Explore more EMI Filter products to find solutions tailored to your electronic component needs at EnvMart.
