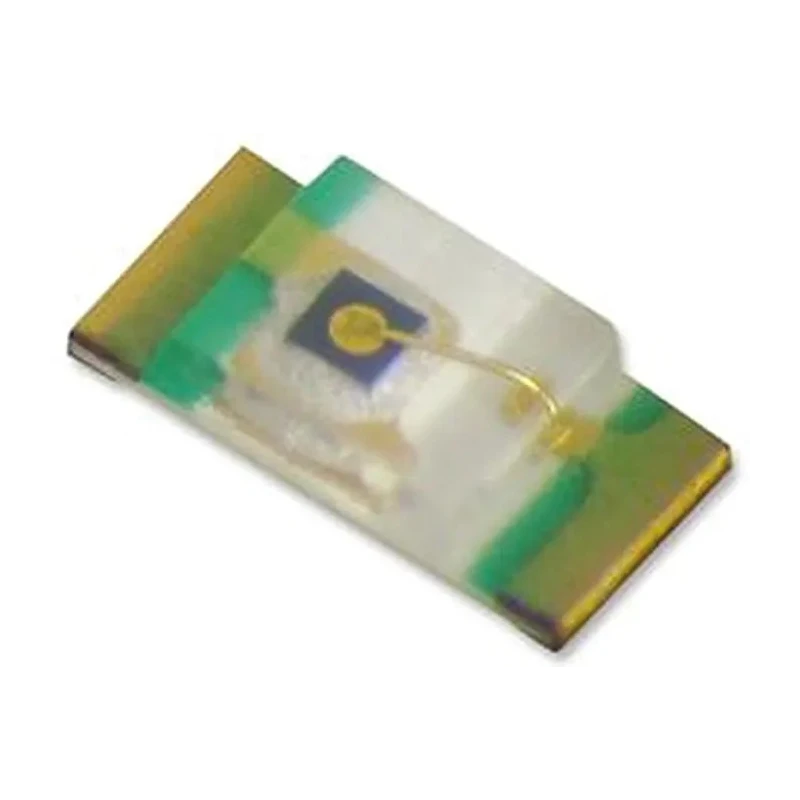

Kingbright Orange 2.4V 120mA Rectangular SMT Chip LED 0402 Surface Mount Low Power KPG-1005SEC-TT

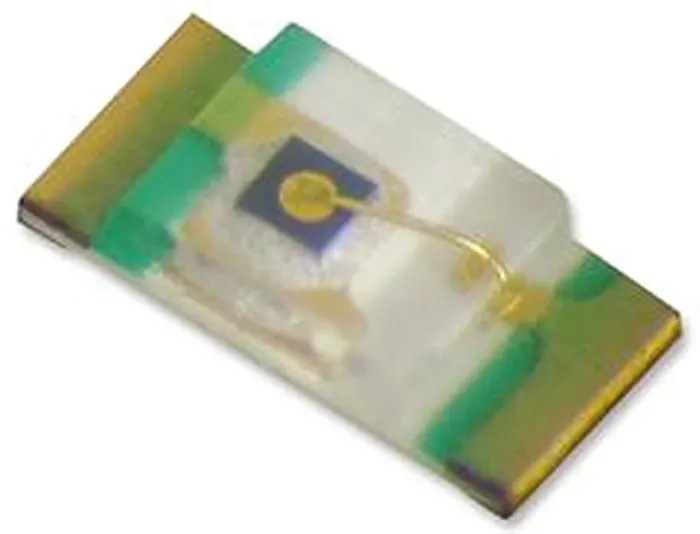

Kingbright KPG-1005SEC-TT is an orange surface mount LED designed with a 0402 ultra-thin SMT chip package, measuring just 0.2 mm thick, ideal for compact electronic applications requiring low profile lighting components.

Operating at a forward voltage of 2.4V and supporting a maximum forward current of 120mA, this device balances brightness and energy efficiency with a maximum power dissipation of 60mW. The rectangular water-clear lens with dimensions of 1.0 x 0.5 x 0.2 mm facilitates a wide 120° viewing angle, emitting bright orange light at a dominant wavelength of 605 nm and luminous intensity of 153 millicandela, ensuring vivid, consistent illumination.

The KPG-1005 series is especially suited for surface mounting (SMT) applications including membrane keyboards, flat backlights, and other compact devices needing ultra-thin light-emitting components. Its packaging in tape and reel format supports automated manufacturing processes and production efficiency.

Constructed to meet RoHS compliance and carrying a moisture sensitivity level of 3, this LED exemplifies quality standards for environmental safety and handling in SMT assembly lines.

As a reliable component made in China, the Kingbright KPG-1005SEC-TT offers practical use cases in electronics, consumer devices, industrial instrumentation, and display technologies, where small form factor and efficient orange light emission are essential.

The LED features a rectangular water-clear lens measuring 1.0 x 0.5 x 0.2 mm. It emits orange light with a dominant wavelength of 605 nm and high luminosity of 153 mcd. The device supports a maximum forward current of 120mA and power dissipation of 60mW.

Its 120° wide viewing angle ensures good visibility from various directions. Designed for surface mounting, it comes packaged in tape & reel format suitable for automated assembly. Moisture sensitivity level is 3, enabling reliable performance in SMT processes.

The two-pin LED complies with RoHS standards and is made in China. Explore the full Kingbright range and other LED components at EnvMart for your electronic manufacturing and design needs.
