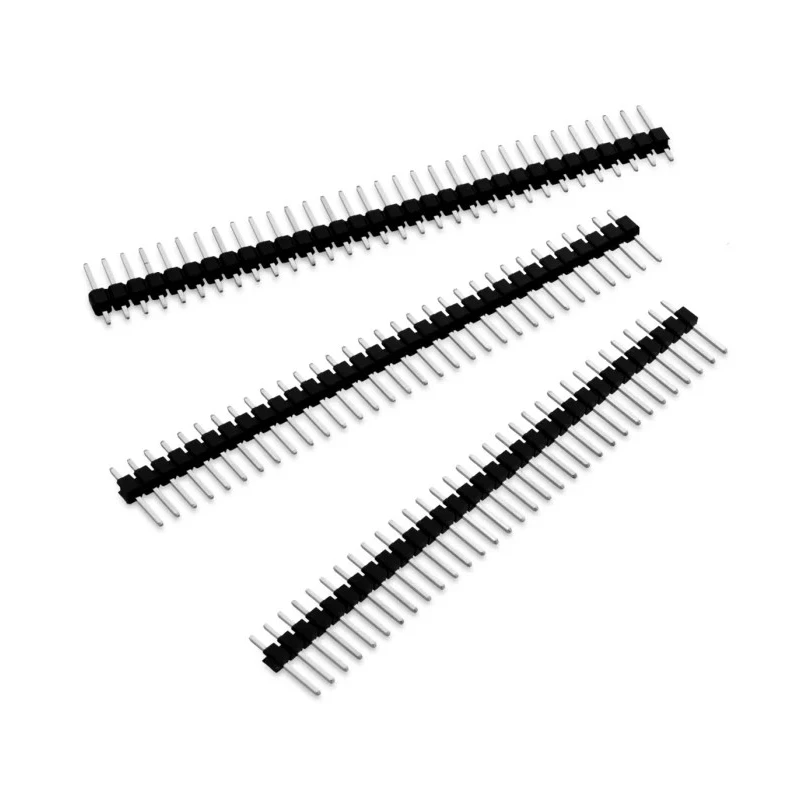

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded 61303611121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- The pin header features a single row layout with 36 male contacts.
- Constructed with a durable polyamide housing material rated UL94-V0 for flame resistance.
- Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance.
- Designed for through-hole mounting with a 3 mm tail pin length and 6 mm mating pin length.
- Operates effectively within a temperature range of -40°C to 105°C.
- Supports maximum voltage of 250 V and current rating of 3 A.
- The connector is unshrouded to allow straightforward solder termination.
- Widely used in electronic components, power connectors, and PCB header applications.
Product Description
Wurth Elektronik 61303611121 WR-PHD Series Straight Through Hole Pin Header is a high-quality connector designed for efficient and reliable board-to-board connections. Featuring 36 gold-plated male contacts arranged in a single row with a 2.54 mm pitch, this pin header ensures consistent electrical performance in electronic assemblies.
The connector's polyamide housing material provides strong mechanical support and meets UL94-V0 standards, enhancing fire resistance and safety in demanding environments. Designed for through-hole mounting, the pin header's tail pin length of 3 mm combined with a mating pin length of 6 mm offers secure solder connections, suitable for various PCB applications.
Operating reliably within temperatures from -40°C up to 105°C and supporting voltage up to 250 V and current up to 3 A, this WR-PHD series pin header is ideal for industrial and commercial electronics, power connectors, and other board interconnect use cases. Its unshrouded design provides easy access and flexibility for assembly and maintenance.
The pin header features a single row layout with 36 male contacts. Constructed with durable UL94-V0 flame-retardant polyamide housing. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Designed for 2.54 mm pitch spacing standard to fit widely used PCB layouts. Through-hole mounting type provides secure and reliable mechanical connection. Mating pin length is 6 mm; tail pin length is 3 mm for effective soldering.
Supports a maximum operating temperature of 105°C and minimum of -40°C. Rated for maximum voltage of 250 V and current of 3 A suitable for power and signal transmission. Ideal for applications in electronics components, power connectors, and PCB header systems.
Wurth Elektronik WR-PHD series connectors are known for their robust design and versatility in electronic design and industrial applications. These components help ensure production efficiency and long-term reliability in various electrical assemblies and machinery.
Browse the extensive range of PCB connectors and headers at EnvMart for industrial, laboratory, and commercial needs, ensuring quality and compatibility with your projects.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm between the contacts.
It supports a maximum voltage of 250 V.
The current rating for this pin header is 3 A.
This connector operates effectively within a temperature range of -40°C to 105°C.
It is designed for through-hole mounting.
The tail pin length is 3 mm.
The mating pin length is 6 mm.
The housing is made of polyamide, which is rated UL94-V0 for flame resistance.
This model has 36 male contacts arranged in a single row.
It uses solder termination for secure connections.
This pin header is unshrouded, allowing for straightforward solder termination.
The contacts are made of gold-plated copper alloy, ensuring reliable conductivity and corrosion resistance.
