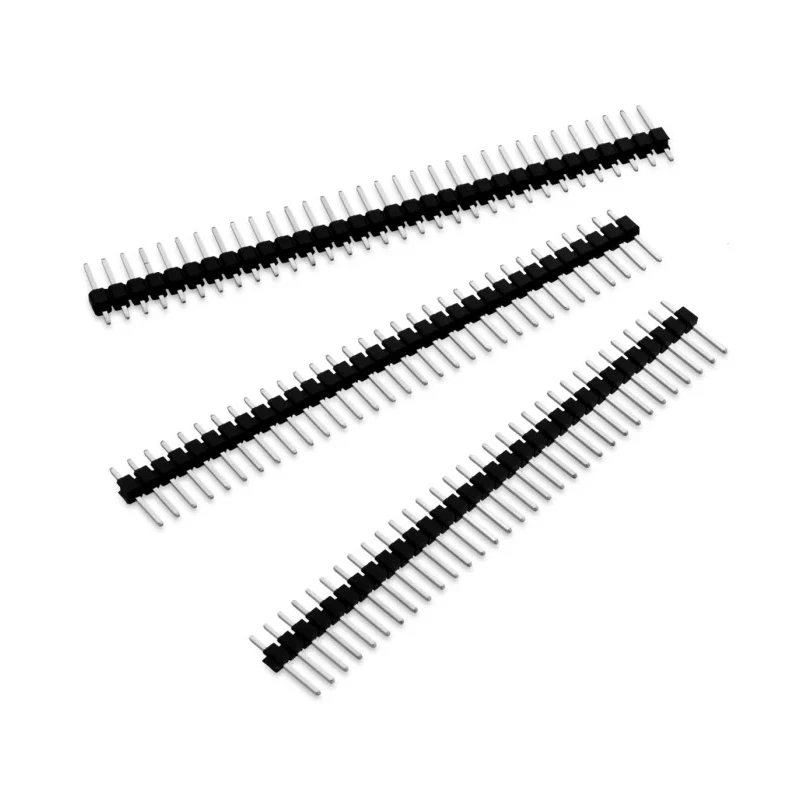

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 61302011121

Wurth Elektronik 61302011121 WR-PHD Series Straight Through Hole Pin Header is a high-quality connector solution for PCB board-to-board applications. It features 20 contacts arranged in a single row with a 2.54 mm pitch to ensure precise alignment and reliable electrical performance. The male contacts are made from copper alloy and plated with gold to provide excellent conductivity, corrosion resistance, and durability.

The pin header’s housing is fabricated from polyamide and black UL94-V0 PBT insulator material, providing robust mechanical strength and excellent insulation. This connector is unshrouded, allowing it to mate easily with corresponding pins of 6 mm length. The tail pins are 3 mm long, designed for secure through-hole soldering to printed circuit boards.

Rated for 3 A current and 250 V voltage, the header is suitable for usage in various electronic components, power and connector assemblies requiring reliable board-to-board connections. It can operate safely in temperatures ranging from -40°C to 105°C, making it ideal for industrial, manufacturing, electronics assembly, and power control applications.

This Wurth WR-PHD range is well-suited for designs requiring stringent quality and performance, including industrial automation, telecommunications, computing hardware, and other PCB interconnect solutions.

The pin header features 20 male contacts arranged in a single row for straightforward PCB connections. Contacts are made of copper alloy with gold plating ensuring excellent conductivity and corrosion resistance. The housing is made of polyamide with a black UL94-V0 PBT insulator material offering electrical insulation and durability.

Designed with a 2.54 mm pitch and through-hole mount type for robust mechanical and electrical connection. Rated for a current of 3 A and voltage up to 250 V, suitable for various electronic circuits. Operating temperature ranges from -40°C to 105°C for reliable performance under diverse conditions.

Unshrouded design allows easy mating with 6 mm long corresponding pins. Tail pin length is 3 mm facilitating secure soldering to the PCB. Suitable for use in electronic components, power and connectors applications requiring board-to-board connection.

Explore the Wurth Elektronik WR-PHD range at EnvMart for trusted electronic connector solutions tailored for high-performance PCB applications.
