Infineon Surface Mount Digital Bipolar Hall Effect Latch Sensor 2.7 V to 24 V Supply, SC-59, 3-Pin TLE49462KHTSA1

Infineon TLE49462KHTSA1 is a surface mount digital bipolar Hall effect latch sensor designed for accurate magnetic field detection in electronic circuits. This sensor operates within a wide supply voltage range from 2.7 V to 24 V, making it versatile for various low-voltage control systems requiring latch behavior.

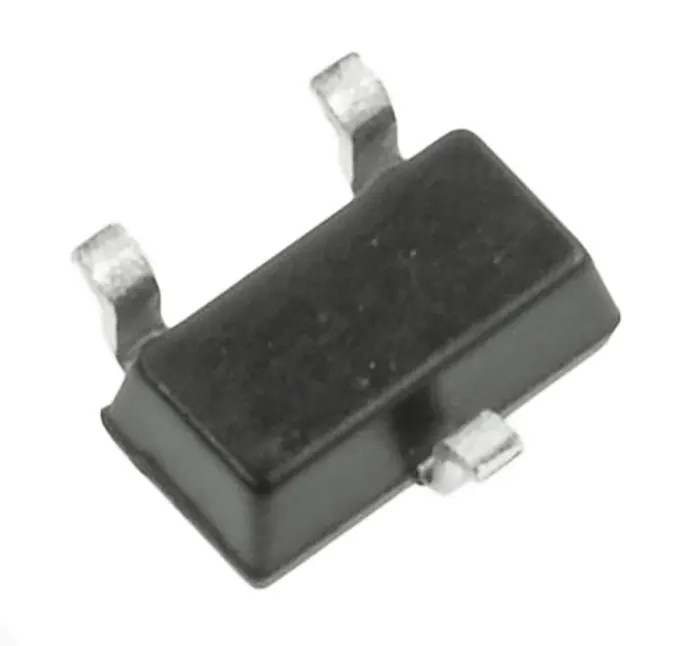

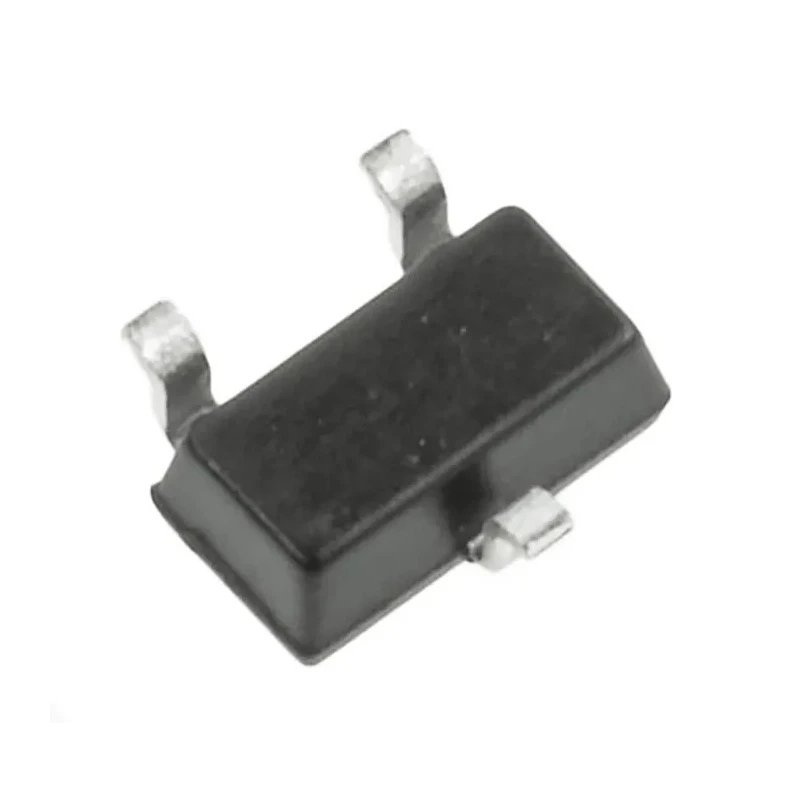

The device features a compact SC-59 package with dimensions 3 mm length, 1.6 mm width, and 1.1 mm height, with 3 pins optimized for surface mount technology (SMT) footprints on printed circuit boards.

The sensor reliably detects both north and south magnetic poles due to its bipolar magnetic sensing technology and provides a digital output latch response with a fast 13 microseconds switching time, supporting input frequencies up to 15 kHz.

Its low supply current of 2.6 mA helps conserve power, especially in battery-powered devices. The device is rated to operate in harsh environments with an operating temperature range from -40°C to 150°C, ensuring robustness for industrial, automotive, and consumer electronics applications.

Typical applications include contactless position sensing in small actuators, rotational speed monitoring, and magnetic switching in compact surface mount assemblies where size and efficiency are critical.

When designing PCB layouts, care must be taken to match the SC-59 package SMD footprints, and thermal considerations should be observed to keep the device operating temperature below the 150°C maximum rating.

The sensor provides digital output suitable for detecting magnetic positions in compact assemblies. Operates across a wide supply voltage range of 2.7 V to 24 V for flexible power compatibility. Bipolar magnetic sensing enables detection of north and south magnetic poles.

Features low supply current of 2.6 mA minimizing power consumption in battery-operated systems. Operates in temperature range from -40°C up to 150°C for broad industrial applications. Compact SC-59 package with 3 pins for surface-mount PCB integration.

Supports maximum switching frequency of 15 kHz, suitable for moderate-speed pulse input detection. Response time is 13 microseconds, enabling fast and reliable magnetic field changes detection.

This Infineon Hall Effect Latch sensor is ideal for industrial, automotive, consumer electronics, and control system applications requiring efficient, reliable magnetic sensing in a compact form factor. Explore more Hall Effect Sensors and Semiconductor components on EnvMart to find compatible electronic parts and solutions.
