Microchip CAN Transceiver 8 Mbps 8-Pin DFN MCP2562FD-E/MF

Free Delivery in India | Lowest Global Shipping Charges

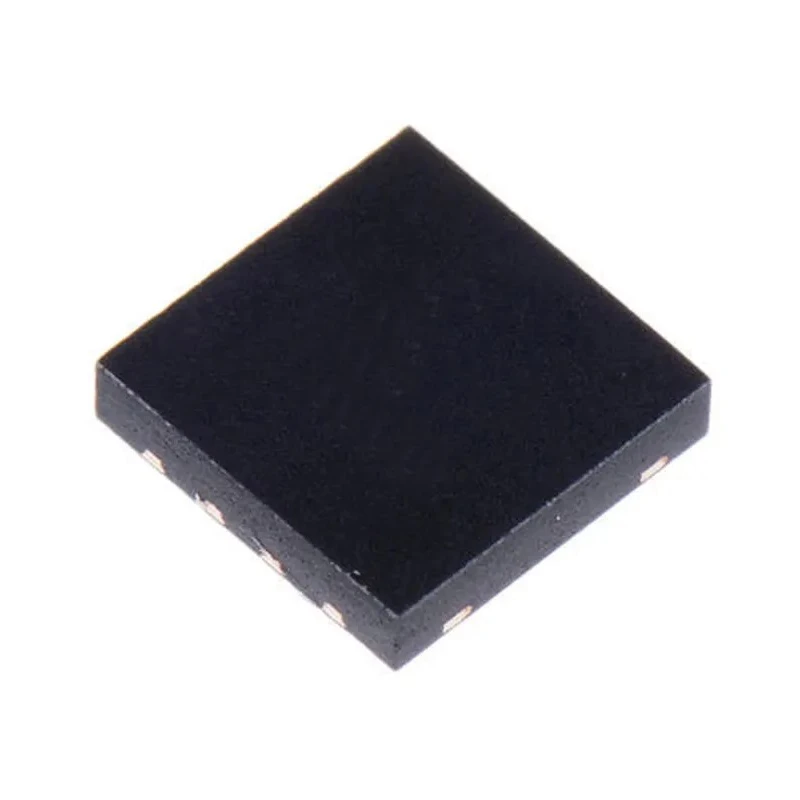

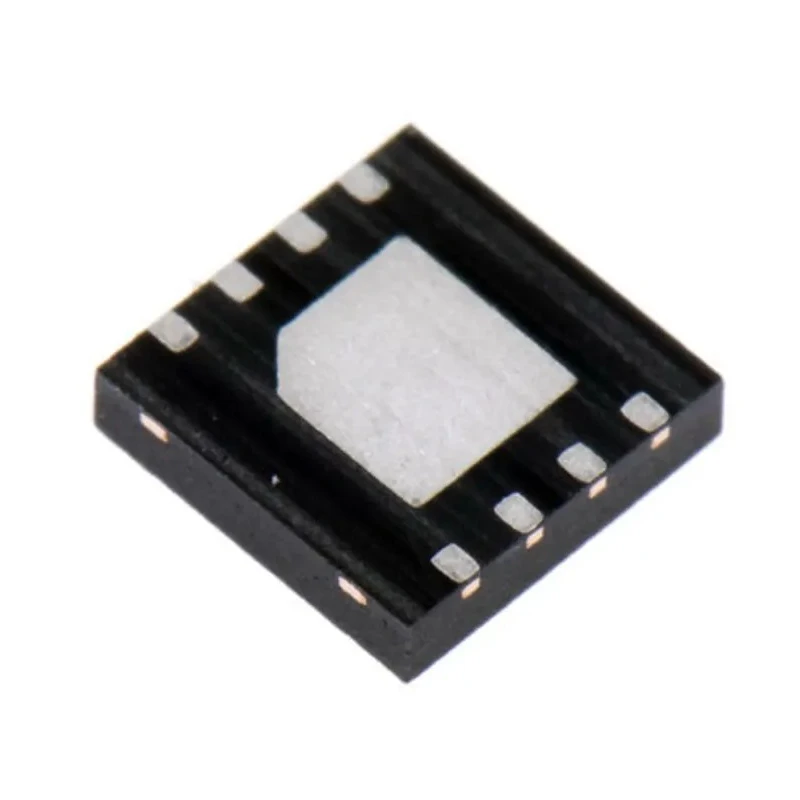

Microchip CAN Transceiver 8 Mbps 8-Pin DFN MCP2562FD-E/MF

Name: Microchip CAN Transceiver 8 Mbps 8-Pin DFN MCP2562FD-E/MF
Brand: Microchip
SKU: 378401
Price: 1.92 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	950μm
Length	3mm
Model	MCP2562FD-E/MF
Width	3mm
Mount Type	Surface
Series	MCP2562FD
Maximum Operating Temperature	125°C
Package Type	DFN
Sub Type	CAN Controller
Minimum Operating Temperature	-40°C
Interface Type	ISO 11898-5, ISO 11898-2
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	70mA
Maximum Data Rate	8Mbps
Number of Transceivers	1
Microchip MCP2562-E/MF, CAN Transceiver 1 Mbps, 8-Pin DFNBrand	Microchip

Key Features

Supports maximum data rate up to 8 Mbps.
Single transceiver design optimized for CAN controller interfacing.
Low supply current of 70 mA ensures power efficiency.
Compact surface mount DFN package with 8 pins.
Compliant with ISO 11898-2 and ISO 11898-5 CAN interface standards.
Wide operating voltage from 4.5 V to 5.5 V.
Operates reliably between -40°C to 125°C temperature range.
ESD protection included for enhanced durability and safety.

Product Description

The Microchip MCP2562FD-E/MF is an advanced CAN transceiver designed for high-speed CAN bus communication supporting data rates up to 8 Mbps. Packaged in a compact 8-pin DFN surface mount package measuring 3 mm by 3 mm with a height of 950 microns, this device optimizes PCB space usage in dense system designs.

This transceiver interfaces seamlessly with CAN controllers following the ISO 11898-2 and ISO 11898-5 standards, ensuring compatibility and reliable communication performance in automotive and industrial environments.

With a supply voltage range from 4.5 V to 5.5 V and a low supply current of 70 mA during operation, it balances power efficiency with robust performance. Additionally, the device supports operation in a wide temperature window from -40°C up to 125°C, suitable for demanding conditions.

Electrostatic Discharge (ESD) protection is integrated, safeguarding the transceiver against electrical transient damage and enhancing device longevity in operational environments prone to electrical interference.

The MCP2562FD series is engineered for reliable CAN bus communication in applications requiring ruggedness and compactness such as automotive control networks, industrial automation, and embedded system CAN interfaces.

Supports maximum data rate up to 8 Mbps. Single transceiver design optimized for CAN controller interfacing. Low supply current of 70 mA ensures power efficiency. Compact surface mount DFN package with 8 pins. Compliant with ISO 11898-2 and ISO 11898-5 CAN interface standards.

Wide operating voltage from 4.5 V to 5.5 V. Operates reliably between -40°C to 125°C temperature range. ESD protection included for enhanced durability and safety. Compact physical size 3mm x 3mm x 0.95mm height for high-density PCB designs.

Suitable for automotive and industrial CAN bus communication systems.

This product is ideal for use in automotive electronics, industrial control, manufacturing automation, and various embedded communication systems requiring standardized CAN bus interfaces with high data throughput.
