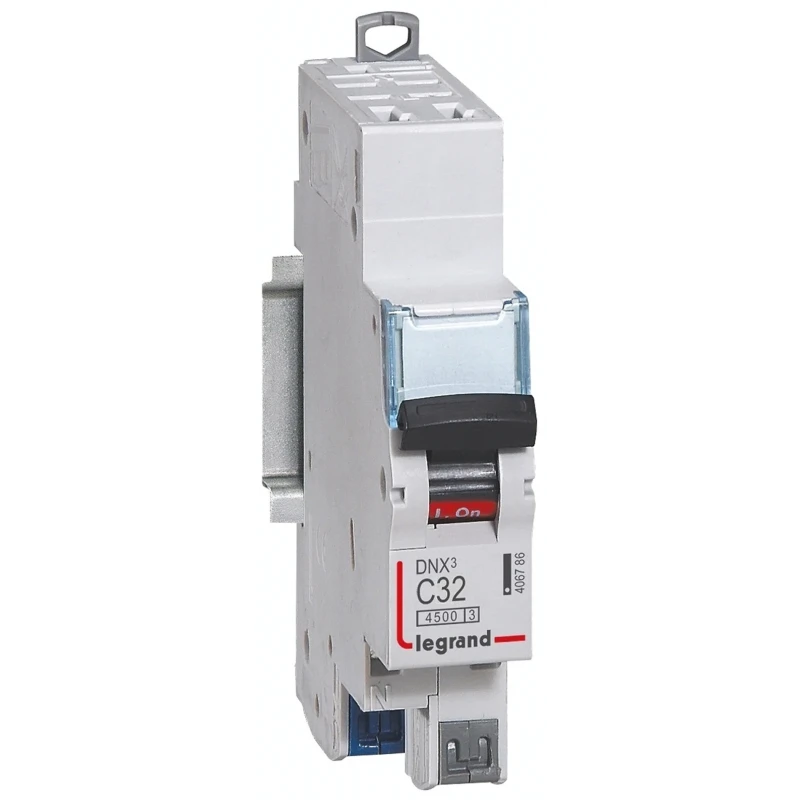

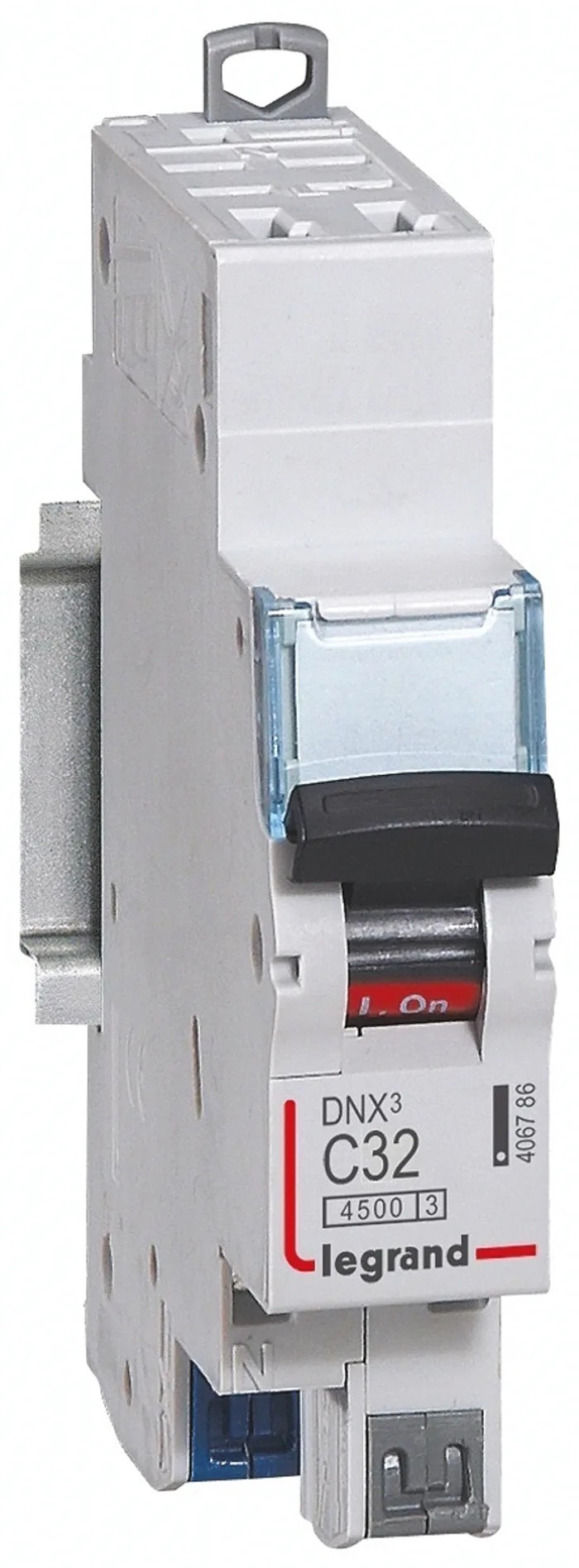

Legrand DX DNX3 Miniature Circuit Breaker, 1-Pole, 32A, Type C Tripping, 250V AC, 12V DC, 4.5 kA Breaking Capacity DNX3

Legrand DNX3 Miniature Circuit Breaker 1-Pole 32A Type C offers efficient and reliable protection for electrical circuits in homes, commercial establishments, and industrial installations. Rated for a current of 32 amperes, this breaker supports AC voltage of 250 V and DC voltage of 12 V, making it versatile for multiple electrical configurations.

This circuit breaker has a breaking capacity of 4.5 kA, which ensures it can effectively interrupt fault currents, preventing damage to connected equipment and wiring. The Type C tripping curve enables instantaneous tripping at 5 to 10 times the rated current, ideal for general use downstream of transformers, cables, and motors.

Featuring a compact form factor, it measures 77.7 mm in height, 17.5 mm in width, and 95 mm in depth, allowing easy installation on a DIN rail in control panels. The toggle switch actuator allows quick reset after trips, and the magnetic tripping mechanism ensures fast response times.

The cage type terminals provide secure wire connections, while the IP20 and IP40 ingress protection ratings safeguard the device from solid objects and limited dust ingress. The product conforms to EN 60947-2 and NF EN 60891-1 standards, guaranteeing adherence to international safety and quality requirements.

Legrand DX DNX3 is suitable for residential wiring, commercial building electrical setups, light industrial applications, and panels requiring selectivity and protection class 3 short circuit limiting devices to prolong equipment life.

Rated current 32 A with Type C tripping for motor protection and general circuits. Breaking capacity of 4.5 kA for robust fault isolation. Supports both AC (250V) and DC (12V) voltages, enhancing versatility. Compact size for optimized panel space utilization.

Flexible DIN rail mounting and cage type terminal wiring. Magnetic instant tripping mechanism for overload and fault protection. Conforms to IEC/EN standards ensuring quality and safety compliance.

This Legrand DNX3 series Miniature Circuit Breaker is a reliable solution for electrical safety and efficiency. Explore more circuit breakers and electrical components in EnvMart's Electronics & Electricals category for comprehensive industrial and commercial applications.
