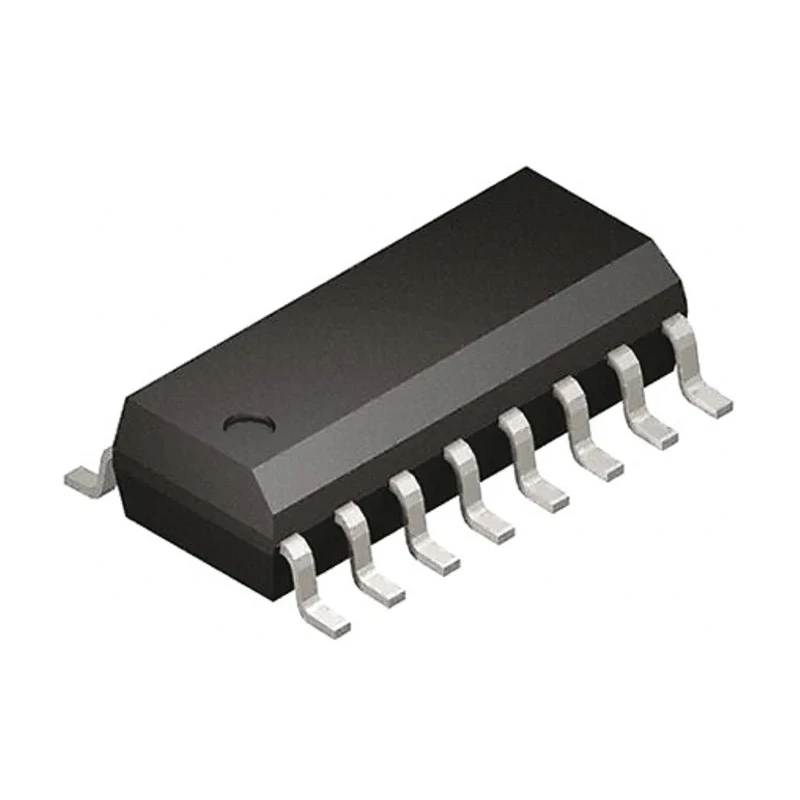

Skyworks Solutions Inc 3-Channel Digital Isolator 1 Mbps 2.5 kVrms 5.5V 16-Pin SOIC Si8631AB-B-IS1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Skyworks Solutions Inc |
| Length | 9.9mm |
| Model | Si8631AB-B-IS1 |
| Depth | 1.25mm |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | Si86 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 5.9mA dc |
| Number Of Channels | 3 |
| Rise Time | 4ns |
| Power Dissipation | 415mW |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, CSA, UL |
| Number of Pins | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Data Rate | 1Mbps |
| Propagation Delay Time | 35ns |
| Package Style | SOIC |
Key Features
- The device supports 3 digital isolation channels for versatile applications.
- Maximum power dissipation is 415 mW ensuring efficient operation.
- Propagation delay time is low at 35 ns for fast signal transmission.
- Designed with a 16-pin SOIC package for surface mount installation.
- Operates within voltage supply of 5.5 V and temperature range from -40°C to 125°C.
- Meets industry standards including IEC, CSA, and UL for quality and safety.
- Automotive grade certified to AEC-Q100 standard for enhanced reliability.
Product Description
Skyworks Solutions Inc Si8631AB-B-IS1 is a high-performance 3-channel digital isolator designed to provide robust and reliable digital isolation with a maximum data rate of 1 Mbps and isolation voltage rating of 2.5 kVrms. Packaged in a compact 16-pin SOIC package, it features low propagation delay time of 35 ns and low power consumption with maximum power dissipation of 415 mW.
This digital isolator utilizes proprietary capacitive isolation technology to achieve low emissions, minimal skew, and high noise immunity, ensuring signal integrity in harsh industrial, laboratory, and automotive environments. Its supply voltage of 5.5 V and extended operating temperature range from -40°C to 125°C make it ideal for a wide range of applications including industrial automation, signal conditioning, and embedded system isolation.
Certified to IEC, CSA, and UL standards with automotive-grade reliability via AEC-Q100 compliance, the Si8631AB-B-IS1 offers a durable solution for critical isolation requirements. The surface mount 16-pin SOIC package measures 9.9 mm in length, 3.9 mm in width, and 1.25 mm in depth, facilitating space-efficient PCB layouts.
Supports 3 isolated digital channels for multi-line signal separation. Provides electrical isolation rated at 2.5 kVrms for safety and noise reduction. Features fast signal propagation delay of 35 ns and rise time of 4 ns.
Optimized for low power consumption with 415 mW power dissipation maximum. Compact 16-pin SOIC surface mount package suitable for automated assembly. Wide temperature operation from -40°C to 125°C enhances environmental performance.
Compliance with IEC, CSA, UL safety standards and AEC-Q100 automotive certification.
This product is fit for use in industrial, automotive, laboratory, and manufacturing sectors requiring reliable digital isolation components. It offers enhanced system protection and signal integrity in compact form factor.
Explore the complete category of Digital Isolator ICs at EnvMart for complementary solutions and technical support.
