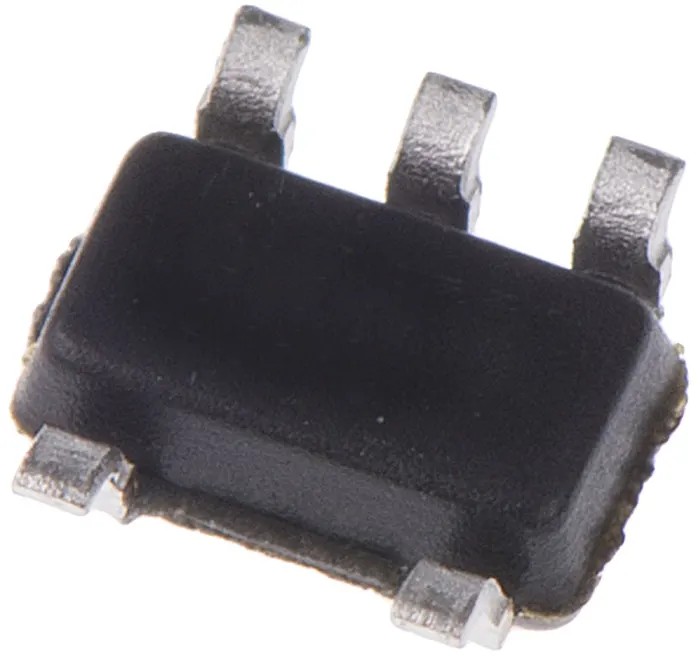

Microchip 8 kB Serial EEPROM 1000 ns 5-Pin SOT-23 Serial-I2C 24LC08BT-E/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | 24LC08BT-E/OT |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | 24LC08B |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Memory size | 8kB |
| Interface Type | Serial-I2C |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 256 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 1000ns |
| Number of Words | 256 |
Key Features
- Provides 8 kB memory size suitable for various embedded systems.
- Operates with a supply voltage range from 2.5V to 5.5V.
- Maximum clock frequency of 400 kHz for fast data communication.
- Low power consumption with 3 mA supply current and CMOS technology.
- Supports automotive standard AEC-Q100 for robust reliability.
- Wide operating temperature from -40°C to 125°C for harsh environments.
- Data retention of over 200 years ensures long-term data integrity.
- Compact SOT-23 surface mount package with 5 pins for easy PCB integration.
Product Description
Microchip 24LC08BT-E/OT is a Serial EEPROM device offering 8 kB of memory organized as 256 x 8 bits, designed for reliable data storage and retrieval in electronics applications.
This device supports a Serial-I2C interface compatible with a maximum clock frequency of 400 kHz and operates between supply voltages of 2.5V to 5.5V, positioning it as an efficient choice for low-power embedded systems.
Its robust operating temperature range from -40°C to 125°C and adherence to the automotive standard AEC-Q100 make it suitable for demanding industrial, automotive, and commercial environments.
Packaged in a compact 5-pin SOT-23 surface mount package measuring 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height, this EEPROM device facilitates easy assembly onto printed circuit boards with minimal footprint.
Key features include a 16-byte page write buffer, hardware write-protect functionality, self-timed erase/write cycles, and ESD protection rated above 4,000 volts, which safeguard device integrity and data reliability.
8 kB memory organized as 256 x 8 bit words for ample storage capacity. Low power consumption with read current limited to 1 mA maximum and standby current at 1 μA maximum. Supports I2C 2-wire serial communication protocol with Schmitt trigger inputs for noise suppression.
Page write time of approximately 3 ms with a self-timed erase/write cycle. Data retention exceeding 200 years, ideal for long-term applications.
This EEPROM is widely used in industrial controls, automotive systems, consumer electronics, and embedded computing for tasks requiring non-volatile, secure, and reliable memory storage.
Explore other memory chip solutions and semiconductor products at EnvMart to find components suited for a broad range of technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides 8 kB of memory, organized as 256 x 8 bits, suitable for various embedded systems.
The maximum clock frequency for the 24LC08BT-E/OT is 400 kHz, enabling fast data communication.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This EEPROM operates with a supply voltage range from 2.5V to 5.5V.
It comes in a compact SOT-23 surface mount package measuring 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
The supply current is 3 mA, with a maximum read current limited to 1 mA and standby current at 1 μA.
Yes, it supports the automotive standard AEC-Q100, ensuring robust reliability for automotive applications.
It supports a Serial-I2C interface, compatible with Schmitt trigger inputs for noise suppression.
It offers data retention exceeding 200 years, ensuring long-term data integrity.
The maximum random access time is 1000 ns, allowing for efficient data retrieval.
Key features include a 16-byte page write buffer, hardware write-protect functionality, and ESD protection rated above 4,000 volts.
It is widely used in industrial controls, automotive systems, consumer electronics, and embedded computing for reliable memory storage.
