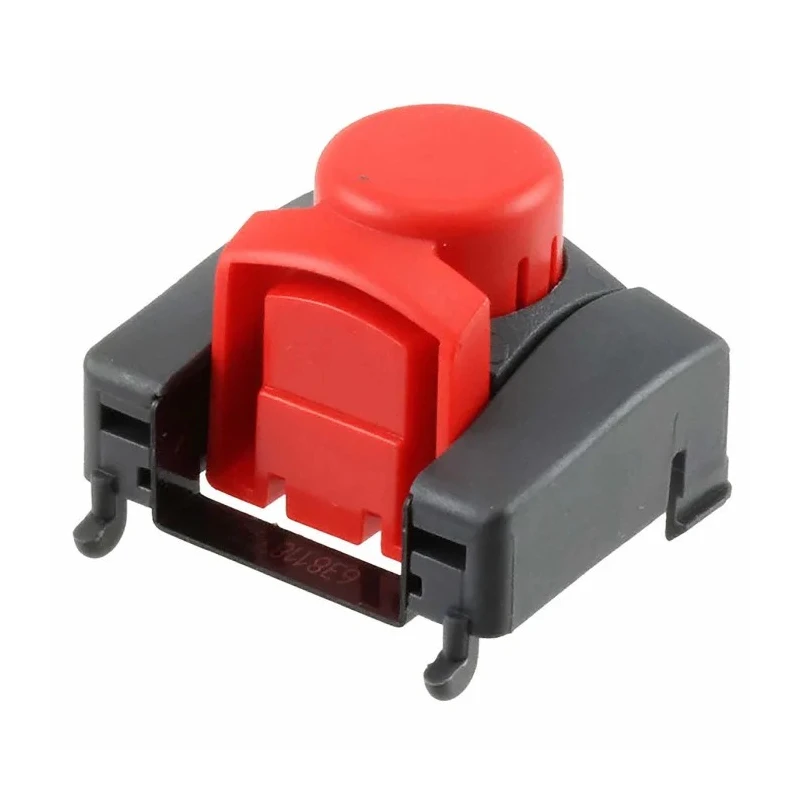

Molex Crimp Tool Locator, Sub Type Locator for SL Crimp Terminals, Nylon Shell Material, 250V, 5V Current Rating 63811-8775
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Colour | Neutral (natural nylon) |
| Current Rating | 5V |
| Series | 63811 |
| Sub Type | Locator |
| Shell Material | Nylon UL 94-V2 |
| For Use With | SL Crimp Terminals |
| Standards/Approvals | IPC/WHMA A-620 Class 2, RoHS |
Key Features
- This locator supports voltages up to 250V and a current rating of 5V.
- Constructed with neutral (natural nylon) color shell for durability.
- Meets IPC/WHMA A-620 Class 2 standards and RoHS compliance.
- Compatible with a range of SL Crimp Terminals and designed to improve crimping accuracy.
- Ideal for consumer electronics, communications, networking, and portable devices.
- Features a friction passive lock ensuring secure and reliable terminal positioning.
- Capable of accommodating 1 to 36 circuit housings.
- Round terminals allow orientation in any direction for flexible application.
Product Description
Molex 63811-8775 Crimp Tool Locator is engineered for precise positioning of SL Crimp Terminals during hand crimping operations. Featuring a robust Nylon UL 94-V2 shell material in a neutral natural nylon color, this locator supports a voltage rating of 250V and a current rating of 5V, ensuring compliance with IPC/WHMA A-620 Class 2 and RoHS standards.
This tool locator facilitates improved crimping accuracy by providing a secure and stable hold of terminals using a passive friction lock mechanism. It supports circuit housings ranging from 1 to 36 circuits, accommodating various application sizes. The round terminal design enables orientation in any direction, enhancing versatility and ease of use within assembly lines for consumer electronics, communications equipment, networking devices, and portable electronic gadgets.
The Molex 63811 series products are suitable for power or signal applications, with polarized housings ensuring correct mating without risk of error. They include gold-plated or tinned terminal options for secure and reliable electrical connections.
This locator is constructed from durable Nylon UL 94-V2 material for high performance and safety. Designed for use with SL Crimp Terminals within the 63811 series, enhancing terminal precision. Conforms to stringent IPC/WHMA A-620 Class 2 quality control standards.
Supports 250 volts and a current rating of 5V appropriate for standard applications. Offers flexible orientation options for round terminals, adaptable to diverse device configurations. Applicable for use in industries such as consumer electronics, communications, and networking.
Provides secure friction lock terminal positioning, reducing assembly errors.
For enhanced operation, this locator complements various hand crimp tools and accessories. It is an essential component for technicians seeking accuracy and efficiency in hand crimping tasks. Explore other Molex crimp tool positioners, turrets, and locators to complete your toolkit. Discover more premium industrial hand tools and related equipment at EnvMart.
Explore more products in our Crimp Tool Positioners, Turrets & Locators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp tool locator supports a voltage rating of 250V and a current rating of 5V.
It is constructed with a Nylon UL 94-V2 shell material in a neutral (natural nylon) color.
This locator meets IPC/WHMA A-620 Class 2 standards and is RoHS compliant.
It is designed for use with SL Crimp Terminals, accommodating various sizes.
The locator features a passive friction lock that ensures secure and reliable terminal positioning during crimping operations.
This locator can accommodate circuit housings ranging from 1 to 36 circuits.
It is applicable in industries such as consumer electronics, communications, networking, and portable devices.
Yes, the round terminal design allows for orientation in any direction, enhancing versatility in application.
These options provide secure and reliable electrical connections, ensuring proper mating without risk of error.
The country of origin for this model is India.
It enhances crimping accuracy by providing a stable hold of terminals, reducing assembly errors during hand crimping tasks.
It can be complemented by various hand crimp tools and accessories to enhance operational efficiency.
