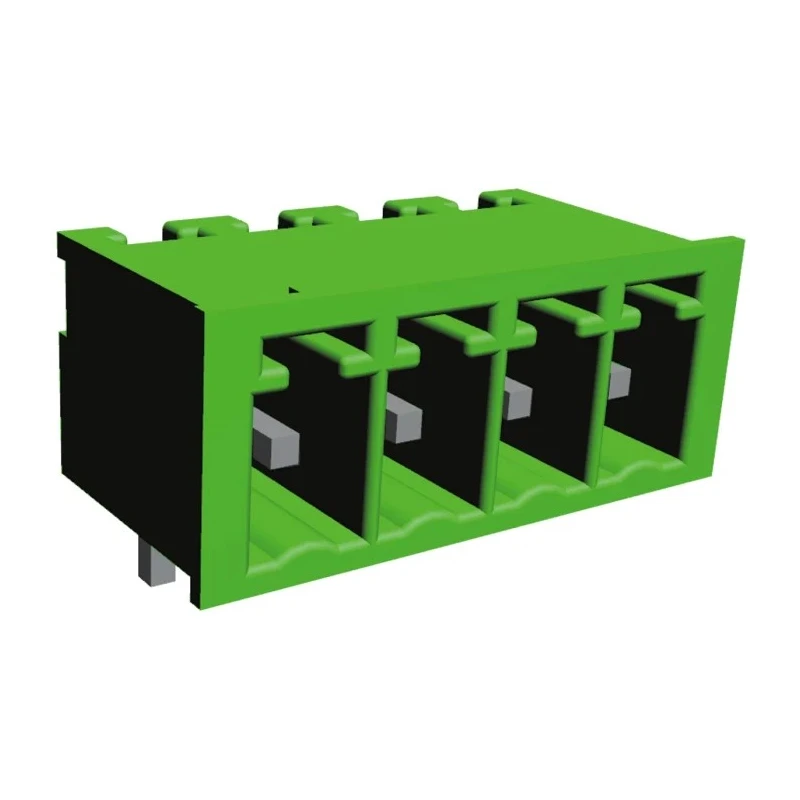

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 3.81 mm Pitch, 1 Row 284513-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 3.81 mm Pitch, 1 Row 284513-4

Name: TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 3.81 mm Pitch, 1 Row 284513-4
Brand: TE Connectivity
SKU: 377744
Price: 2.33 USD
Availability: InStock



Category Pluggable Terminal Block Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	TE Connectivity
Colour	Green
Orientation	Right Angle
Current	11A
Model	284513-4
Housing Material	Nylon
Series	Buchanan
Number of Rows	1
Pitch	3.81mm
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	2mm²
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	30AWG
Wire Connection Method	Solder

Key Features

Constructed with green nylon housing for durability.
Features 4 female contacts with right angle orientation.
Supports wire sizes from 0.05 mm² to 2 mm² (14 AWG to 30 AWG).
Rated for 11A current at 300V AC.
Wire connection method is soldering for secure attachment.
Designed as a TERMI-BLOK 3.81 mm right angle closed end terminal block header.
Provides polarization keying slots for correct mating.
Suitable for electronics, power connectors, and industrial applications.

Product Description

TE Connectivity 284513-4 Buchanan Series Pluggable Terminal Block is a 4-contact, single-row connector featuring a 3.81 mm pitch and green nylon housing. It is engineered for secure and efficient PCB connections in applications demanding reliable current handling up to 11A at 300V AC.

This terminal block connector features female contacts designed with right angle orientation to optimize PCB layout and cable routing. The wire connection is performed using soldering, ensuring robust electrical contact and mechanical stability. The housing material is polyamide 6.6 glass-filled nylon, enhancing durability and providing excellent electrical insulation.

The connector accommodates a wide range of wire sizes, from 0.05 mm² to 2 mm² (14 AWG to 30 AWG), allowing versatile cable selection. Its design includes polarization keying slots which prevent incorrect mating, enhancing safety and installation ease.

Manufactured as part of the TERMI-BLOK 3.81 mm series, this product is suited for various industrial, electronics manufacturing, and power connector applications where stable and compact terminal block connections are essential.

Color coded in green for easy identification, this pluggable terminal block serves well in automated assembly and detailed PCB designs requiring reliable signal and power connections.

Constructed with green nylon housing for durability. Features 4 female contacts with right angle orientation. Supports wire sizes from 0.05 mm² to 2 mm² (14 AWG to 30 AWG). Rated for 11A current at 300V AC. Wire connection method is soldering for secure attachment.

Designed as a TERMI-BLOK 3.81 mm right angle closed end terminal block header. Provides polarization keying slots for correct mating. Suitable for electronics, power connectors, and industrial applications.

This TE Connectivity terminal block is widely used in industrial automation, electronics components assembly, power distribution units, and control panels, supporting reliable electrical interconnection in demanding environments.
