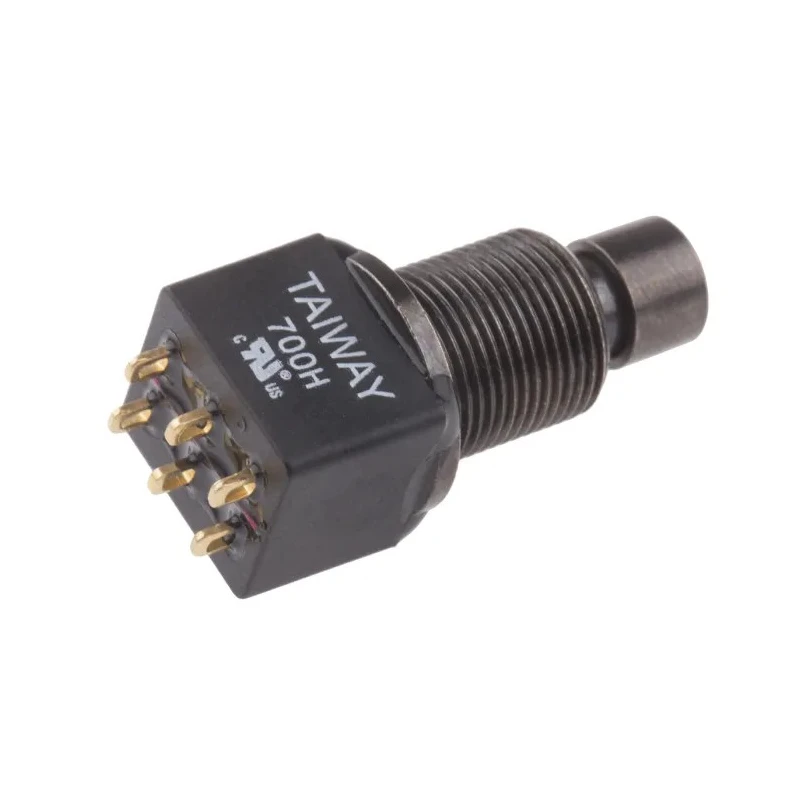

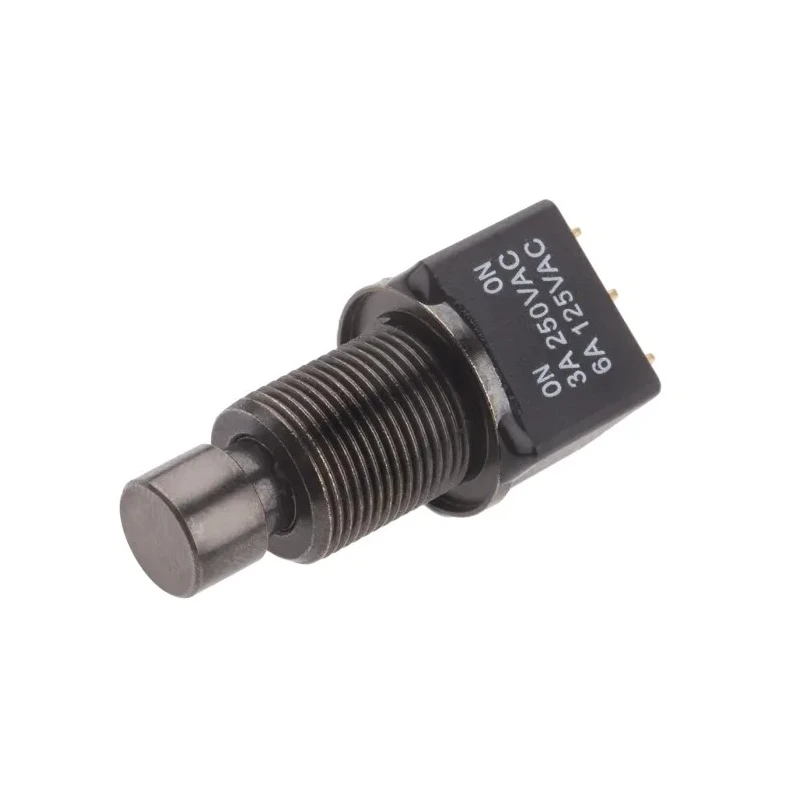

RS PRO Push Button Switch, Latching, PCB Mount, DPDT, Black LED, IP67, 28 V dc 125 V ac 820-0491

Name: RS PRO Push Button Switch, Latching, PCB Mount, DPDT, Black LED, IP67, 28 V dc 125 V ac 820-0491
Brand: RS PRO
SKU: 377325
Price: 2208.25 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	820-0491
IP Rating	IP67
Mount Type	PCB
Contact Configuration	DPDT
Switch Configuration	DPDT
Minimum Operating Temperature	-30°C
Terminal type	Solder Lug
Standards/Approvals	RoHS
LED Colour	Black
Switch Operation	Latching
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Plunger
Switch Contact Current	3A
Contact AC Voltage	125V ac

Key Features

The switch actuator color is black and operates with a plunger style.
The device is designed for a PCB mount with solder lug terminals ensuring secure connections.
The switch has an IP67 rating ensuring dust-tight and water immersion protection.
It can handle contact current of 3A at rated voltages for reliable power switching.
The minimum operating temperature is -30°C, suitable for harsh environments.
Fully sealed construction with double shell casing provides mechanical strength and electrical insulation.
The rear and frontal seals maintain protection during operation, preventing water ingress.
Suitable for low level switching and power applications up to 3A 250Vac.

Product Description

RS PRO 820-0491 Push Button Switch is a high-quality latching push button switch designed for use in electrical and automation applications. This switch mounts directly onto PCBs and features a double pole double throw (DPDT) contact configuration, allowing versatile switching capabilities at rated voltages of 28 V dc and 125 V ac.

The actuator is a black plunger style, providing intuitive operation and a robust feel. The switch incorporates a black LED for indication, although it is specified as non-illuminated. The device is fully sealed to IP67 standards, ensuring complete protection against dust and immersion in water, making it ideal for demanding industrial environments.

Constructed with a double shell casing, the switch offers enhanced mechanical strength and excellent electrical insulation. Two 'O' ring frontal seals combined with a fully sealed rear protect the switch's internals from water ingress while maintaining seal integrity during actuation. This ensures long life and reliability even in harsh conditions.

The contacts are rated for both low-level switching - down to microampere current levels at low voltages - and power switching up to 3A at 250Vac. This makes the switch highly adaptable for various control and power circuits.

Certification standards include UL and CSA approvals, alongside RoHS compliance for environmental safety. The push button switch is manufactured in Taiwan, Province Of China, assuring quality production standards.

The switch actuator color is black and operates with a plunger style. The device is designed for PCB mounting with solder lug terminals for secure electrical connection. Fully sealed IP67 rating provides outstanding environmental protection.

Switch contact current capacity of 3A suitable for power applications. Operational temperature range down to -30°C meets demanding industrial requirements. Double shell casing increases mechanical strength and insulation.

Seals prevent water ingress, enhancing switch durability. RoHS compliant and certified for safety and environmental standards.

This product is perfect for applications in electrical automation, industrial machinery, HVAC control systems, and other commercial or manufacturing processes requiring reliable, rugged push button switches with latching operation. For more products in Push Button Switches and electrical components, explore the complete RS PRO range at EnvMart.
