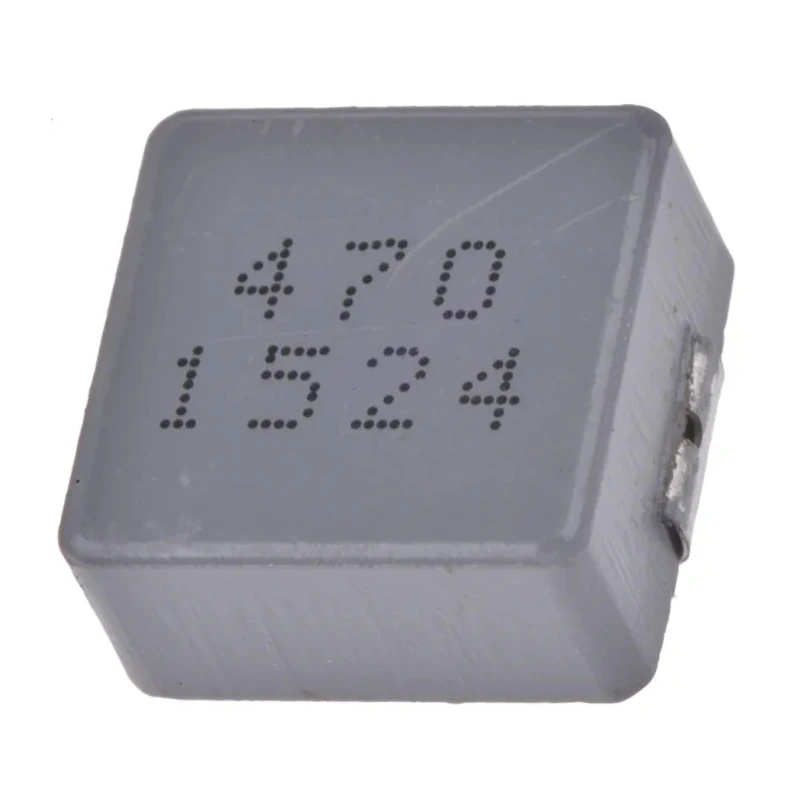

Bourns Shielded Wirewound Surface Mount Inductor Carbonyl Powder Core 47 μH ±20% 6.5 A IDC Q:20 SRP1265A

Free Delivery in India | Lowest Global Shipping Charges

Bourns Shielded Wirewound Surface Mount Inductor Carbonyl Powder Core 47 μH ±20% 6.5 A IDC Q:20 SRP1265A

Name: Bourns Shielded Wirewound Surface Mount Inductor Carbonyl Powder Core 47 μH ±20% 6.5 A IDC Q:20 SRP1265A
Brand: BOURNS
SKU: 377212
Price: 1.54 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6.2mm
Length	13.5mm
Model	SRP1265A
Depth	12.5mm
Packaging	Reel
Series	SRP1265A
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Carbonyl Powder
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	1265
Maximum DC Current	6.5A
Pin Count	2
Maximum DC Resistance	90mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	4MHz
Minimum Quality Factor	20
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Features a magnetically shielded construction with a carbonyl powder core.
Maximum DC current rating of 6.5 A to handle high current applications.
Inductance of 47 microhenries with ±20% tolerance.
Designed for surface mount use with a 1265 package size.
AEC-Q200 qualified for automotive system reliability.
Operates safely between -40°C and 150°C ambient temperatures.
Solder termination style ensuring reliable PCB mounting.
Maximum DC resistance of 90 milliohms to minimize power loss.

Product Description

Bourns SRP1265A is a shielded wirewound surface mount inductor that features a carbonyl powder core, designed to provide reliable inductance of 47 μH with ±20% tolerance. It supports a maximum DC current rating of 6.5 A, making it suitable for high current applications in demanding environments.

This inductor is housed in a compact 1265 package with dimensions 13.5 mm length, 6.2 mm height, and 12.5 mm depth, and it features a solder termination style for effective surface mounting on PCBs.

Certified to the AEC-Q200 automotive standard, the SRP1265A is robust and ideal for automotive applications such as driver assistance, information systems, entertainment, and lighting. It operates reliably over a wide temperature range from -40°C to 150°C.

The inductor provides a maximum DC resistance of 90 milliohms, enabling efficient current flow with low losses. Its maximum self-resonant frequency of 4 MHz and minimum quality factor of 20 ensure high performance in switching power supplies and DC-DC converters.

Bourns SRP series inductors are RoHS compliant and halogen free, emphasizing environmentally responsible manufacturing. The shielded construction reduces electromagnetic interference, improving circuit stability and performance.

Magnetically shielded construction with carbonyl powder core ensures minimal EMI. High saturation current and robust design suitable for automotive and industrial power applications. AEC-Q200 qualification ensures reliability for automotive electronics.

Wide operating temperature range from -40°C to 150°C. Low maximum DC resistance of 90 mΩ reduces power loss. Maximum self-resonant frequency of 4 MHz suitable for high-frequency applications. Minimum quality factor of 20 guarantees efficient inductive behavior.

This surface mount inductor is ideal for industrial, automotive, laboratory, and manufacturing environments requiring high current handling and stable inductance characteristics. Its reel packaging enables automated mounting and production efficiencies.

Explore our full range of Surface Mount Inductors at EnvMart for diverse industrial and commercial applications.
