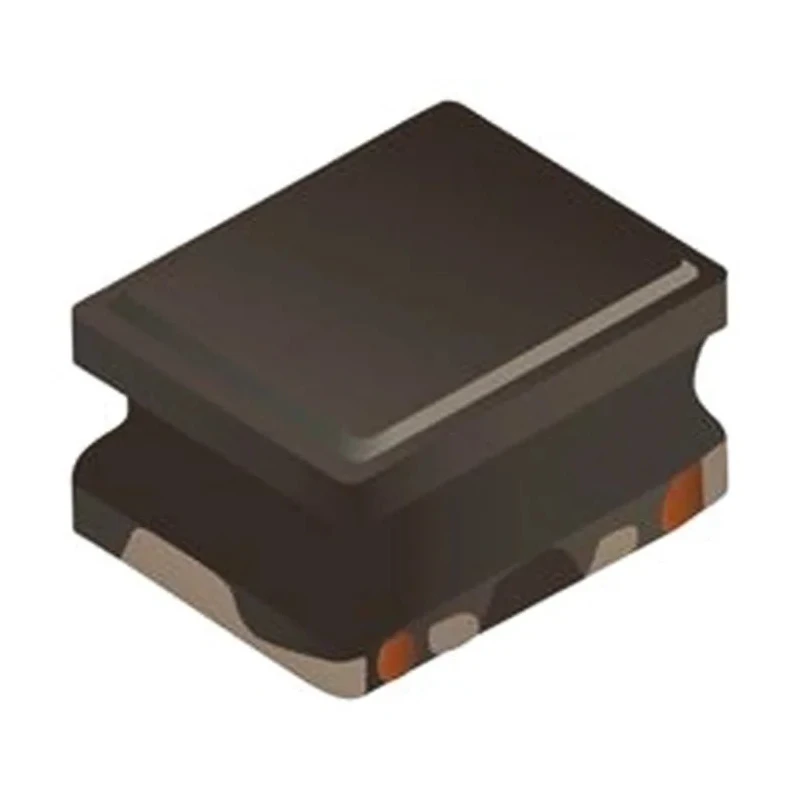

Bourns Shielded Wirewound Surface Mount Inductor 2012 Case 1.5 μH ±20% 1.8 A IDC 90 MHz SRN2012

Bourns SRN2012 shielded wirewound surface mount inductor with a ferrite core is designed for electrical and electronics applications requiring stable inductance in a compact size. The series offers a low profile of 1.2 mm height and fits the 2012 package case providing reliable performance in dense PCB layouts.

This inductor has an inductance value of 1.5 μH with a ±20 % tolerance and supports a maximum DC current rating of 1.8 A, ensuring suitability for power management tasks within electronic systems. Its semi-shielded construction reduces electromagnetic interference while maintaining signal fidelity.

The maximum DC resistance of 108 mΩ contributes to efficiency by minimizing resistive losses in operation. It complies with RoHS regulations, assuring environmentally responsible manufacturing and consumer safety. The component operates across a temperature range from -55°C to 125°C, allowing use in industrial and consumer electronics subject to varied environmental conditions.

Common applications include use in DC-DC converters, notebook computers, digital video cameras, hard disk drives, cellular phones, televisions, and LCD displays, highlighting its versatility for both portable and stationary equipment. The solder termination style enables secure, automated mounting on printed circuit boards for efficient mass production.

This inductor features semi-shielded wirewound construction to minimize electromagnetic interference. Low profile and compact dimensions of 2 mm length, 1.6 mm depth, and 1.2 mm height allow dense PCB integration. Stable inductance value of 1.5 μH with ±20% tolerance meets precise circuit design requirements.

Maximum DC current rating of 1.8 A supports moderate power electronic applications. RoHS compliant and halogen free for environmentally friendly electronics manufacturing. Wide operating temperature range from -55°C to 125°C enables diverse industrial use.

High-quality factor of 12 and max self resonant frequency of 90 MHz optimizes high-frequency operation. Solder termination style designed for automated surface mounting processes.

These features make the Bourns SRN2012 series inductors a dependable choice for electronic designers seeking efficient, compact Surface Mount Inductors for performance-critical applications. Browse the Electronics & Electricals category at EnvMart for more inductors and components from leading brands.
